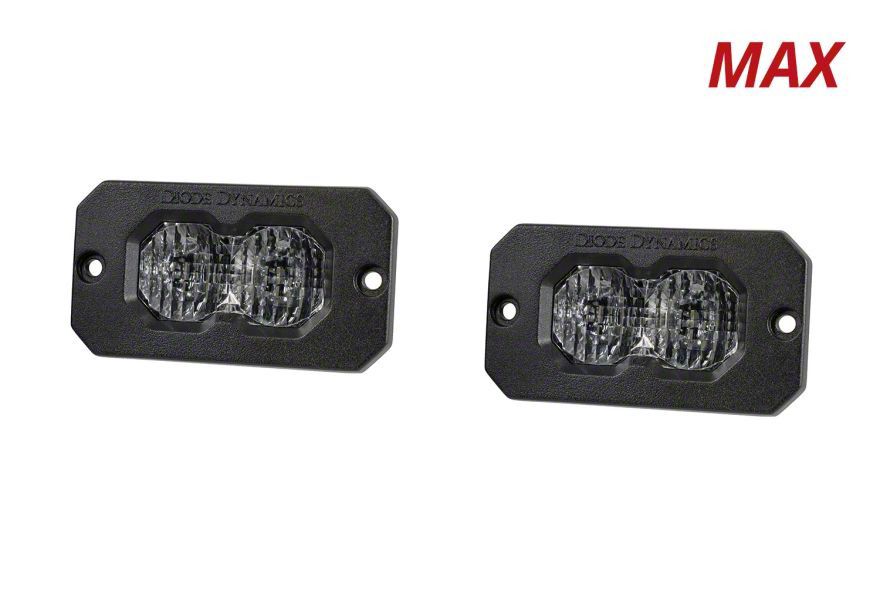

Diode Dynamics Stage Series C2 2.0 Max Flush Mount LED Pod Lights with Red Backlight; White Flood (Universal; Some Adaptation May Be Required)
Item FB72077
Our Price
$479.95
Military, Medical & First Responders
$24.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Two Stage Series C2 2.0 LED Pods Included _x000D_
- Two Deutsch-Style Wire Pigtails Included _x000D_
- Two Mounting Brackets And Hardware Included _x000D_
- Osram Boost HX LED Emitters _x000D_
- Constant Current Driver _x000D_
- Polycarbonate Lens, Aluminum Casting, Rubber Gasket Materials _x000D_
- Passive Cooling With Pin-Fin Heatsink _x000D_
- SAE J575 Durability Tested _x000D_
- IP69K Waterproof, High Pressure Rated _x000D_
- Operating Voltage 9-30V _x000D_
- Current 2.3 Amps @ 12.8V For Main Beam _x000D_
- Red Backlight Functionality Included _x000D_
- Backlight Current 0.03 Amps @ 12.8V _x000D_
- LED Output 3,960 Raw Lumens _x000D_
- Color Temperature 6000K White _x000D_
- Operating Temperature Range -40°C To 85°C (-40°F To 185°F) _x000D_
- Product Dimensions 2.5 x 4.5 x 2.4 Inches _x000D_
- Unit Weight 0.55 Pounds Each _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 4 to 4.75 Inch |
Description
High-Powered LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Flush Mount LED Pod Lights with Red Backlight and White Flood provide intense, focused illumination in a compact size, ideal for bumpers, roof racks, trailers, or cargo areas. Designed to deliver superior brightness while minimizing glare, these pods enhance visibility in various driving and work conditions, ensuring safety and efficiency.
_x000D__x000D_Construction and Appearance. Constructed with a durable powder-coated aluminum housing and a polycarbonate lens, the pods feature a copper-core circuit board bonded directly to Osram Boost HX LEDs for optimal thermal management and longevity. The pods include a red backlight accent that illuminates the patented TIR optic, delivering a modern look with rugged durability and waterproof, high-pressure resistance certified to IP69K standards.
_x000D__x000D_Installation. Installation is straightforward and typically takes 30-60 minutes using basic tools, with no special drilling required for most mounting surfaces thanks to the included flush mount brackets. The pods feature Deutsch-style connectors for reliable wiring adaptability.
_x000D__x000D_Warranty. These LED pods are backed by a limited lifetime warranty, ensuring lasting performance and peace of mind for the user.
_x000D__x000D_Application. Designed to fit universally, these pods may require some adaptation to suit specific mounting locations or vehicle configurations.
Diode Dynamics DD8128P
