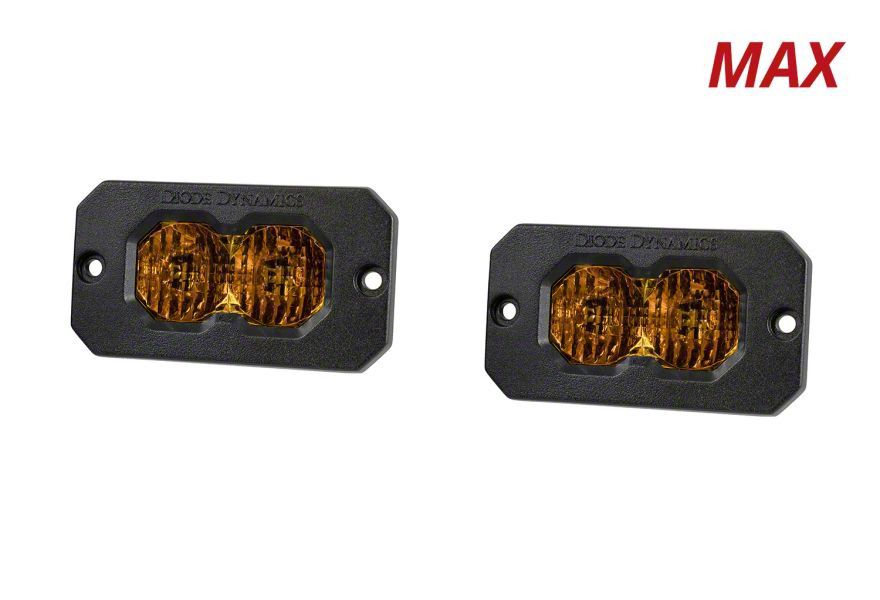

Diode Dynamics Stage Series C2 2.0 Max Flush Mount LED Pod Lights with Amber Backlight; Yellow Combo/Driving (Universal; Some Adaptation May Be Required)
Item FB72083
Our Price
$479.95
Military, Medical & First Responders
$24.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Includes Two Stage Series C2 2.0 LED Pods _x000D_
- Includes Two Deutsch-Style Wire Pigtails _x000D_
- Includes Two Mounting Brackets And Hardware _x000D_
- 3,900 Raw Lumens With Osram HX Boost LEDs _x000D_
- Amber Backlight Functionality For Low-Power Accent Lighting _x000D_
- Interchangeable Optics And Colors With No Color Variation _x000D_
- Patented TIR Optics Deliver Up To 120% More Intensity _x000D_
- Sealed Polycarbonate Lens With IP69K Waterproof Rating _x000D_
- Operating Temperature From -40C To 85C (-40F To 185F) _x000D_
- Available Beam Patterns: Flood And Combo/Driving _x000D_
- Powered By Constant Current Driver _x000D_
- Passive Cooling Via Pin-Fin Heatsink _x000D_
- Polarity Specific Wiring With Deutsch DT Connector _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 4 to 4.75 Inch |
Description
High-Powered LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Flush Mount LED Pod Lights with Amber Backlight; Yellow Combo/Driving are precision-engineered lighting solutions designed for off-road and auxiliary automotive applications. These pods provide intense, focused illumination to enhance visibility and safety in low-light or challenging conditions. Their compact form factor and powerful output make them ideal for tight spaces on bumpers, cargo areas, trailers, or roof racks.
_x000D__x000D_Construction and Appearance. Constructed with a durable powder-coated aluminum housing and a sealed polycarbonate lens, these LED pods are built to withstand harsh environments. The amber backlight adds a distinctive modern accent, fully illuminating the optic while matching OEM marker light colors. The design includes a pin-fin heatsink to ensure efficient thermal management, maintaining peak performance over extended use.
_x000D__x000D_Installation. Installation is straightforward and typically takes 30 to 60 minutes using basic tools. The included flush mount brackets allow for low-profile mounting on flat surfaces without requiring complex modifications or drilling in most applications.
_x000D__x000D_Warranty. These LED pods carry a limited lifetime warranty, reflecting confidence in their durability and long-term performance.
_x000D__x000D_Application. Fits universal applications; some adaptation may be required depending on mounting location and vehicle configuration.
