Front or Rear Camera Kit for 12-Inch SYNC 4 Factory Display (21-26 Bronco w/ Factory Backup Camera)Find parts that fit my vehicle
Item FB29294
Our Price
$939.99 kit
Military, Medical & First Responders
$47.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Camera Is FMVSS 111 Compliant
- Mini License Bar Universal Mount Camera
- Super CMOS Sensor For Ultra Clear Display
- Resolution: 600 TV Lines
- Minimum Illumination: 0.2 Lux
- View Angle: 170°
- Video Output: Full Color Video
- Working Voltage: DC 9-16V
- Parking Line: On/Off Selectable
- Image: Mirror/Non Mirror Selectable
- Water Proof: IP67
- 25 Foot Harness Included
- Three Year Warranty On The Camera
- SYNC 4 Multi Cam Interface Included
- Plug And Play Factory SYNC 4 System Integration
- Allows Connection Of Up To 4 Cameras To Factory Screen
- Monitoring Of Any Connected Camera At Any Time
- Blind Spot Camera Inputs Triggered By Turn Signals
- Built-In HDMI Video Input And Audio Input
- Retains All Factory Features
- Automatic Switching With Turn Signal Activation
- Camera Power Wire Connects To Interface Module
- No Dealer Activation Required
- No Cutting Or Splicing Of Factory Wiring
- Professional Installation Recommended
- Fits Select Ford Vehicles With Factory SYNC 4 12-Inch Display And Factory Backup Camera
Description
Universal Camera Solution. The Front or Rear Camera Kit for 12-Inch SYNC 4 Factory Display enhances vehicle safety by providing additional camera views on your factory screen. Designed to seamlessly integrate with factory backup camera systems, it works alongside existing backup or 360 systems, offering extra visibility for parking and driving situations.

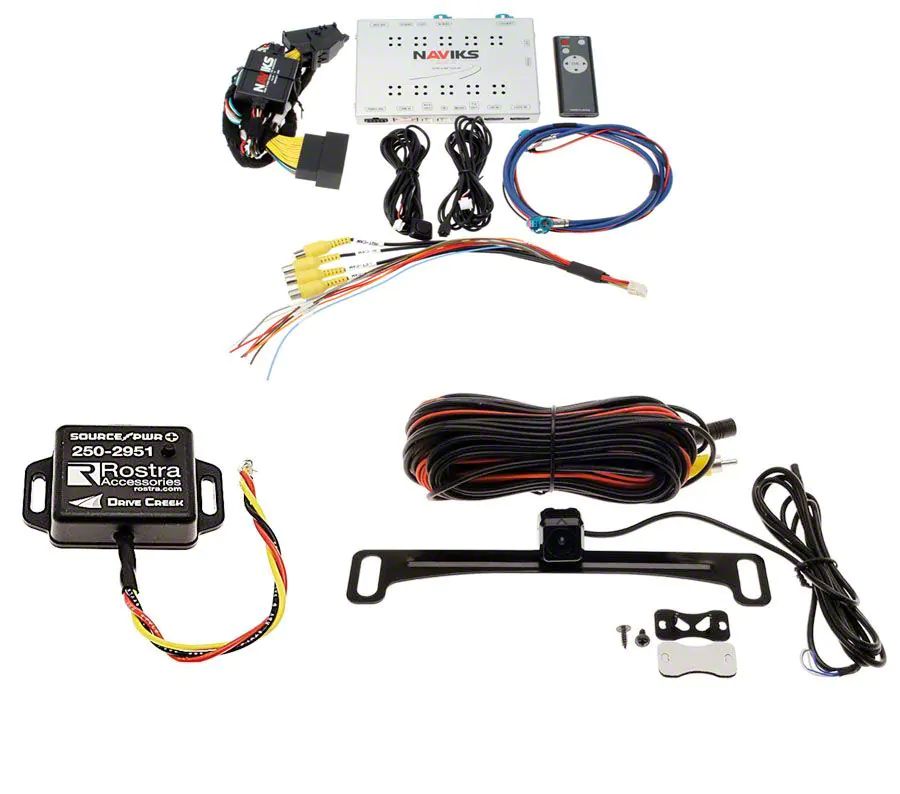

Construction and Features. This kit includes a mini license bar-style universal mount camera equipped with a Super CMOS sensor delivering ultra-clear video quality at 600 TV lines resolution and a wide 170° viewing angle. It features selectable parking lines, mirror/non-mirror image options, and a waterproof IP67-rated housing. A 25-foot harness is included for flexible installation.
The SYNC 4 multi-camera interface module supports connection of up to four cameras to the factory display, allows monitoring of any connected camera at any time, and includes blind spot camera inputs that can be triggered by turn signals. The interface also features built-in HDMI video and audio inputs while retaining all factory system functions and enabling automatic camera switching with turn signal activation.
Installation. Installation requires removal of the factory radio but involves no dealer programming, cutting, or splicing of factory wires. The camera can be mounted using the included universal license plate or flat surface brackets. Professional installation is recommended to ensure proper setup and operation.
Warranty. The camera is backed by a three-year warranty against manufacturer defects.
Application. This product fits select Ford vehicles equipped with factory 12-inch SYNC 4 displays and factory backup cameras, including 2021–2026 Bronco, F-150, Super Duty, Expedition, and Ranger models. Customers should verify compatibility before purchase to ensure proper function with their specific vehicle configuration.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Front or Rear Camera Kit
