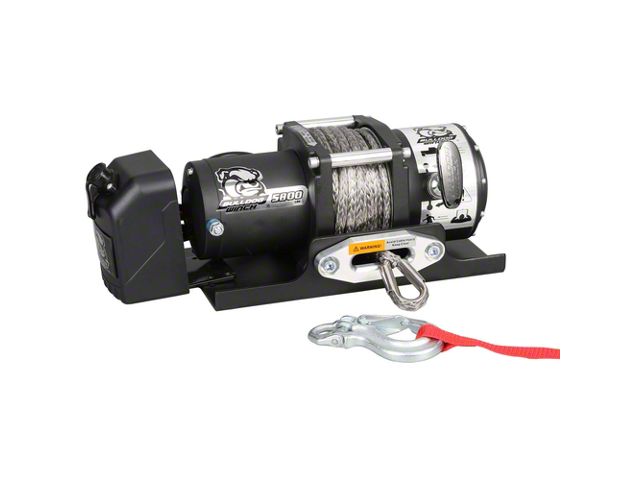

      Bulldog Winch Co. 5800lb Trailer Winch

      Bulldog Winch Co. 5800lb Trailer Winch

      The Bulldog Winch Co. 5800lb Trailer Winch is designed for reliable and powerful trailer pulling applications. With a robust 1.87 HP permanent magnet motor and a rated line pull of 5,800 lbs, this winch is built to handle tough jobs with ease.

      • Rated Line Pull: 5,800 lbs
      • Motor: 1.87 HP, 12V DC permanent magnet
      • Switch: 450A sealed contactor
      • Controller: Wired handheld remote with 20 ft lead (optional wireless controller available, PN 20156)
      • Battery Leads: 6 ft, recommended 650 CCA battery
      • Gear Train: 3-stage planetary, 218:1 ratio
      • Clutch: Freespooling for quick and easy rope deployment
      • BRAKE: Automatic load-holding brake in drum
      • Drum Size: 2.5" x 2.7" (63.5 x 70mm)
      • Wire Rope: 9/32" x 55'
      • Mounting Bolt Patterns: Winch: 4.5" x 4", Plate: 12" x 5.8"
      • Weight: 57 lbs
      • Warranty: 2-year limited

      Performance

      Line Pull & Speed
      Line Pull (lbs) Line Speed (ft/min) Current (A)
      01015
      20007.5120
      40004.9210
      58002.9310

      Rope Capacity by Layer

      Line Pull & Rope Capacity
      Layer Rated Line Pull (lbs) Total Rope on Drum (ft)
      158005.9
      2499013.1
      3428021
      4373029.8
      5331040
      6296152
      7265955

      Ideal for demanding trailer winching tasks, the Bulldog 5800lb Trailer Winch offers dependable performance, user-friendly controls, and durable construction for peace of mind on every job.

      Bulldog Winch 10030
