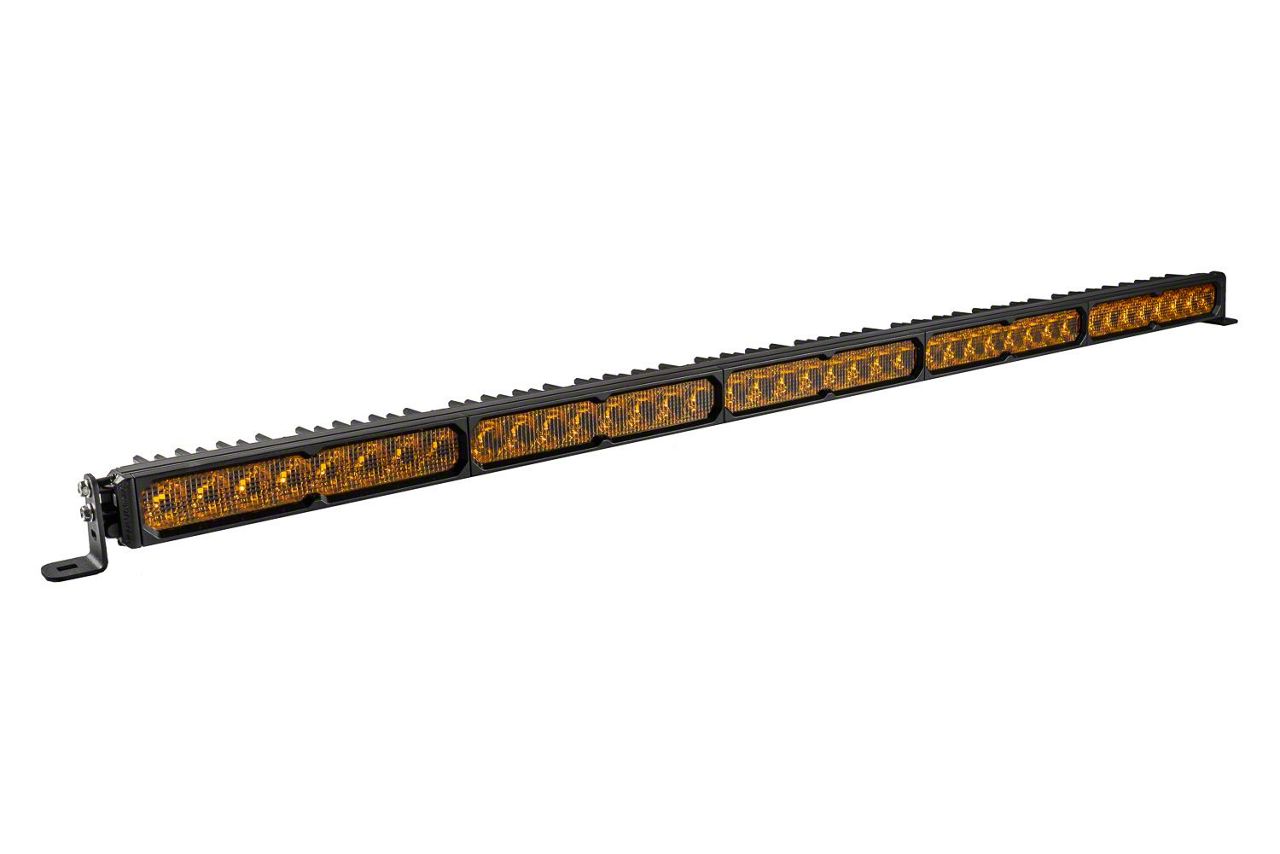

Diode Dynamics SS50 Pro Single Row LED Light Bar with Amber Backlight; Yellow Combo (Universal; Some Adaptation May Be Required)
Item FB76006
Our Price
$1,299.95
Military, Medical & First Responders
$65.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available In Sport And Pro Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For The Extreme With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Peak Beam Intensity Ranges From 315,000 Cd To 835,000 Cd Depending On Beam And Power Level _x000D_
- Illuminance From 95 Lux To 8,350 Lux At 10m _x000D_
- Raw Output From 18,440 Lumens To 62,720 Lumens _x000D_
- Output Color At 3000K Yellow _x000D_
- Beam Patterns Include Combo/Driving, SAE Driving, Flood, And Spot _x000D_
- Operating Voltage 9-30V _x000D_
- Current Draw From 16.56 Amps To 23.05 Amps At 12.8V _x000D_
- Operating Temperature Range -40C To 85C (-40F To 185F) _x000D_
- LED Emitters From Osram Ostar Projection Compact And Lumileds Automotive Grade LED _x000D_
- Deutsch DT-P Input Connector _x000D_
- Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, And Stainless Steel Brackets _x000D_
- Passive Cooling Via Heatsink _x000D_
- Product Dimensions Approximately 2.01 X 51.63 X 2.46 Inches _x000D_
- Universal Bracket Set Included _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 50 Inch and Up |
| Light Bar Shape | Straight |
Description
HIGH-PERFORMANCE LIGHTING. The Diode Dynamics SS50 Pro Single Row LED Light Bar with Amber Backlight; Yellow Combo is engineered to deliver superior illumination with a focus on efficiency and precision. Designed for off-road, adverse weather, and professional applications, it enhances visibility through patented optics and multiple beam patterns tailored to diverse driving environments.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. The light bar features a rugged aluminum housing finished with an ASTM-standard powdercoat for durability in extreme conditions. Its polycarbonate lens combined with copper and aluminum circuit boards optimizes thermal management. The true amber backlighting provides practical lighting benefits and distinctive visual appeal.
_x000D__x000D_INSTALLATION. Installation generally takes 30 to 60 minutes using standard tools and includes universal brackets for flexible mounting. The setup is straightforward, typically requiring no specialized drilling.
_x000D__x000D_WARRANTY. This product is backed by a limited lifetime warranty, ensuring long-term reliability and performance.
_x000D__x000D_APPLICATION. Designed for universal fitment, some adaptation may be necessary depending on the vehicle make and preferred mounting method.
