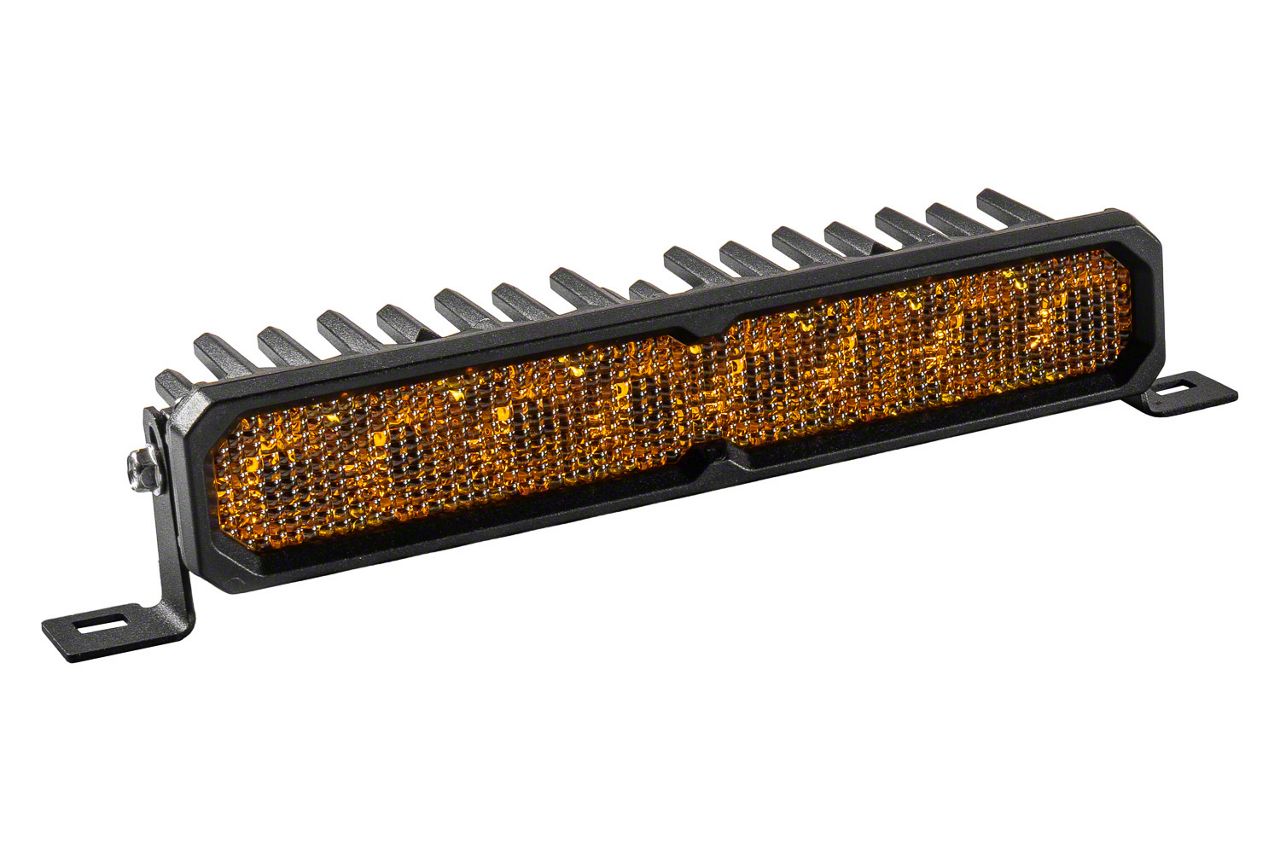

Diode Dynamics SS10 Max Single Row LED Light Bar with Amber Backlight; Yellow Flood (Universal; Some Adaptation May Be Required)

Item FB75908
Product Image
Our Price

$449.95

Military, Medical & First Responders $22.50 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Patented TIR Optics For Maximum Efficiency And Output.
        • _x000D_
      • Upgraded Beam Patterns Engineered For Real-World Performance.
        • _x000D_
      • True Amber Backlight Provides Unique Accent Lighting.
        • _x000D_
      • Available In Sport, Pro, And Max Power Levels.
        • _x000D_
      • Durable Aluminum Housing With ASTM-Standard Powdercoat Finish.
        • _x000D_
      • Built For The Extreme With IP69K Waterproof Rating.
        • _x000D_
      • Limited Lifetime Warranty.
        • _x000D_
      • Made In USA With Global Materials.
        • _x000D_
      • Peak Beam Intensity Ranges From 2,000 Cd To 205,500 Cd Depending On Optic And Power Level.
        • _x000D_
      • Illuminance Ranges From 20 Lux To 2,050 Lux At 10 Meters.
        • _x000D_
      • Raw Output Ranges From 3,688 Lumens To 15,840 Lumens.
        • _x000D_
      • Output Color At 3000K Yellow.
        • _x000D_
      • Beam Angles Include Combo/Driving 60x30 Degrees, SAE Driving 20x12 Degrees, Flood 100x80 Degrees, Spot 8x8 Degrees.
        • _x000D_
      • Power Consumption From 40 Watts (Sport) To 61 Watts (Max).
        • _x000D_
      • Operating Voltage Between 9-30V.
        • _x000D_
      • Current Draw From 3.13A To 4.77A At 12.8V.
        • _x000D_
      • Polarity Specific.
        • _x000D_
      • Operating Temperature Range Of -40°C To 85°C (-40°F To 185°F).
        • _x000D_
      • Uses Osram Boost HX, Osram Ostar Projection Compact, And Lumileds Automotive Grade LEDs.
        • _x000D_
      • Connector Type Is Deutsch DT Input.
        • _x000D_
      • Constructed Of Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets.
        • _x000D_
      • Cooling Is Passive Using Heatsink.
        • _x000D_
      • Product Dimensions Are 2.01x10.24x2.37 Inches.
        • _x000D_
      • Includes One LED Light Bar, One Wire Pigtail, Universal Bracket Set.
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required.
        • _x000D_

      Description

      High-Performance LED Lighting. The Diode Dynamics SS10 Max Single Row LED Light Bar with Amber Backlight and Yellow Flood delivers superior illumination designed for harsh environments and low visibility conditions. This specialized light bar enhances visibility with its optimized flood beam, ideal for off-road, worksite, and inclement weather use. Its yellow output reduces glare and improves clarity in fog, rain, and snow to keep drivers safe and informed.

      _x000D__x000D_

      Construction and Appearance. Crafted with durable aluminum housing finished in an ASTM-standard powdercoat, this light bar withstands extreme conditions while maintaining a sleek and professional look. Its polycarbonate lens and stainless steel brackets ensure longevity and resistance to corrosion, complemented by a copper and aluminum PCB for efficient thermal management. The amber backlight design enhances style while providing operational safety.

      _x000D__x000D_

      Installation. Installation requires basic hand tools and typically takes between 30 to 60 minutes. The universal mounting system allows easy bracket attachment, often without drilling, making it accessible for most users to install confidently.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty, ensuring long-term reliability and peace of mind.

      _x000D__x000D_

      Application. Designed with universal fitment in mind, this light bar may require some adaptation to fit specific vehicles or mounting locations. Its compatibility with a wide range of automotive setups makes it a versatile lighting enhancement.
