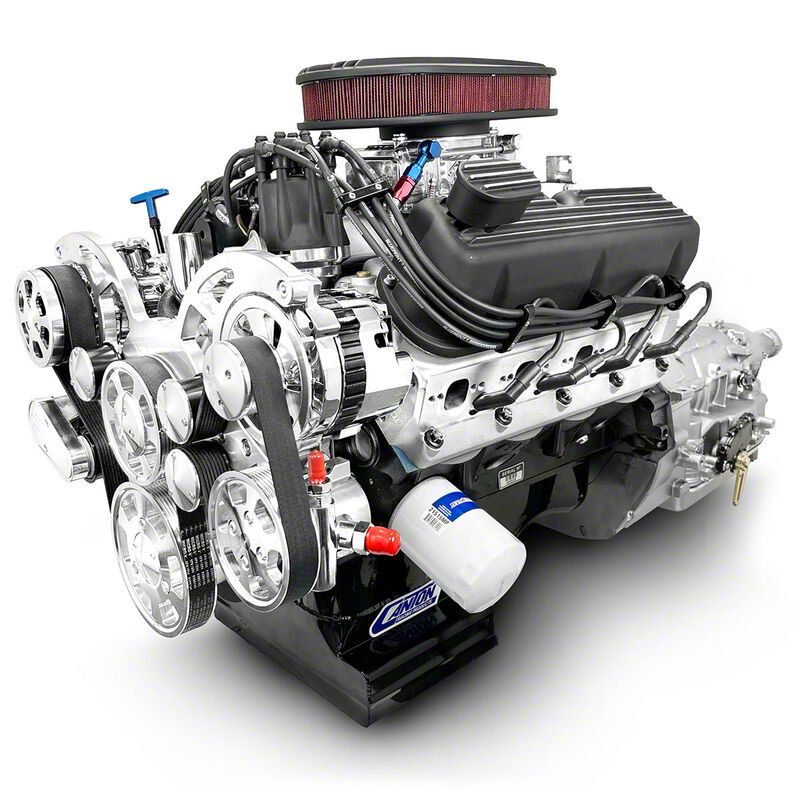

BluePrint Engines Standard Edition Builder Series Small Block Ford 302 C.I. 370 HP Fuel Injected Crate Engine and TKX Manual Transmission with Polished Pulley Kit
Item U19369-XT
Our Price
$19,599.00
Military, Medical & First Responders
$979.95 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- 370 Horsepower / 350 Ft. Lbs. Torque
- Compression Ratio 9.5:1
- Aluminum Cylinder Heads
- Hydraulic Roller Camshaft
- Cast Crankshaft With 3.000 Inch Stroke
- Hypereutectic Pistons
- High-Strength Cast Iron Block With Increased Deck Thickness And Strength Webbing
- Priority Main Oiling System
- 4.000 Inch Bore
- 4-Bolt Main Caps
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
- Ford Machined And Balanced Rotating Assembly
- OEM Type 5.090 Inch Connecting Rods
- 50oz External Balance
- BluePrint Aluminum Cylinder Heads Hp9009 With 60cc Chamber
- 2.02 Inch Intake / 1.60 Inch Exhaust Valves
- 190cc Intake / 60cc Exhaust Runners
- Camshaft Lift .543 Intake / .554 Exhaust
- Camshaft Duration 218 Intake / 226 Exhaust @ .050
- Lobe Separation Angle 112 Degrees
- Total Ignition Advance 34 Degrees At 3500 Rpm
- Holley Sniper 2 EFI Self-Tuning System
- EFI Fuel Pump Kit Included
- Intake Manifold
- Water Pump
- Spark Plugs And Wires
- Valve Covers
- Distributor
- Harmonic Balancer 50 Ounce, 6.4 Inch Diameter
- Painted Oil Pan
- Thermostat And Thermostat Housing
- Polished Front Accessory Drive With Driver Side Standard Rotation Water Pump, Type II Power Steering Pump, Remote Reservoir, 140 Amp Alternator, And Air Conditioning Compressor
- TKX 5-Speed Manual Transmission Package
- Includes Mcleod Super Street Pro Single Disk Clutch, Hydraulic Throw Out Bearing, Aluminum Bell Housing, Flywheel, Engine Guard, And Starter
- Transmission Gear Ratios: 2.87:1 (First), 1.89:1 (Second), 1.28:1 (Third), 1.00:1 (Fourth), 0.81:1 (Fifth)
- Fuel Requirement: 87+ Octane
- Installation Notes: Not For Use In Pollution-Controlled Vehicles, Customer Responsible For Fitment Measurement Due To Low-Profile Accessory Design
- Package Ships Fully Assembled As Pictured
- Bronze Distributor Gear Not Recommended
- Fits Ford Small Block Compatible Applications
Description
HIGH-PERFORMANCE ENGINE PACKAGE. The BluePrint Engines Standard Edition Builder Series Small Block Ford 302 C.I. 370 HP Fuel Injected Crate Engine paired with the TKX Manual Transmission and Polished Pulley Kit delivers reliable power and excellent drivability for classic car restorations, kit cars, and performance projects. Designed to work seamlessly with manual transmissions, this crate engine provides 370 horsepower and 350 ft-lbs of torque, ideal for enthusiasts seeking a balance of performance and durability.
CONSTRUCTION AND APPEARANCE. This engine features a durable cast iron block with increased deck thickness and strengthened webbing to handle high loads. Lightweight aluminum cylinder heads with 2.02" intake and 1.60" exhaust valves enhance airflow and combustion efficiency. The rotating assembly is precisely balanced and includes hypereutectic pistons and a cast crankshaft. A polished front accessory drive adds a refined and compact look to the overall package.
INSTALLATION. The package ships fully assembled, including the TKX 5-speed manual transmission. Basic mechanical knowledge is required for installation. Confirm fitment carefully due to the low-profile accessory drive design, which may require adjustments to hoses or wiring. This engine is not intended for use in pollution-controlled vehicles.
WARRANTY. Includes a 30-month or 50,000-mile standard warranty covering parts and labor, providing confidence in quality and reliability.
APPLICATION. Designed specifically for Ford Small Block compatible applications. Fitment should be verified for your particular setup before installation. This crate engine is not intended for pollution-controlled vehicles.
BluePrint Engines B302FKTKX
