Baja Designs LP9 Racer LED Auxiliary Light Pod; Racer Spot Beam; Clear (Universal; Some Adaptation May Be Required)
Item FB37100
Our Price
$736.95 each
Military, Medical & First Responders
$36.85 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- IP69K Waterproof Up To 9Ft And Pressure Washable
- Exceeds MIL-STD-810G Mil-Spec Testing
- IK10 Compliant Mechanical Impact Testing
- Depth 3.25 Inches
- Height 8 Inches
- Length 8 Inches
- Weight 6.5 Lbs
- Amperage Rating 9.6 A
- Average Rated Life 49,930 Hours
- Backlight Amperage Rating 0.2 A
- Backlight Wattage 2.8 W
- Beam Pattern Racer Edition Spot
- Bezel Material Powder-Coated Cast Aluminum
- Brightness 8,374 Lumens
- Description Racer Edition Spot Clear
- Housing Color Black
- Housing Material Powder-Coated Cast Aluminum
- Lens Color Clear
- Lens Material Hardcoated Polycarbonate
- Light Quantity 1
- Lighting Modes High Beam, Low Beam, Day-Time Running, Backlighting
- Lighting Quantity 9
- Lighting Technology LED
- Lighting Type Forward Projecting
- Mounting Hardware Included
- Mounting Hardware Material Stainless Steel
- Overvoltage Protection Built-In
- Product Type LP9 Racer Edition LED Light Pod
- Secondary Amperage Rating 1.52 A
- Secondary Brightness 2,302 Lumens
- Secondary Light Quantity 6 LEDs
- Secondary Lighting Technology LED
- Secondary Lighting Type Integrated Peripheral Technology (IPT)
- Secondary Wattage 21 W
- Terminal Connector DT06-4S Deutsch
- Terminal Type Mating Connector
- Universal Or Specific Universal
- Wattage 132.48 W
- Wiring Harness Included No
- Fits Universal; Some Adaptation May Be Required
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Round |
| Light Size | 8 Inch and Up |
Description

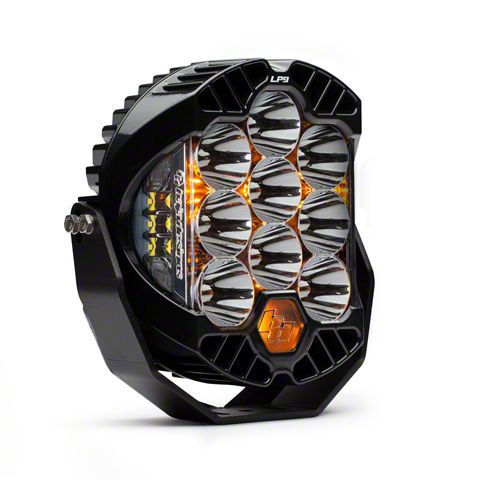

High-Performance Lighting. The Baja Designs LP9 Racer LED Auxiliary Light Pod, Racer Spot Beam Clear, delivers powerful illumination with a compact, durable design ideal for off-road enthusiasts and racers. It enhances visibility with a forward-projecting spot beam and integrated peripheral LEDs, making it essential for high-speed trail navigation and race conditions.
Construction and Appearance. This light pod is crafted from powder-coated cast aluminum with a hardcoated polycarbonate lens for optimum durability and weather resistance. The sleek black housing provides a rugged, professional look while ensuring reliable heat dissipation and long-term performance.
Installation. Installation is straightforward with included stainless steel mounting hardware and Deutsch connectors, requiring only basic hand tools. The universal design fits most existing mounts but may require minor adaptation for some applications.
Warranty. This product comes backed by a limited lifetime warranty, providing peace of mind and assurance of quality.
Application. Fits universal; some adaptation may be required.
Baja Designs 330001
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) LED Light
- (1) Installation Hardware
