Find Auxiliary Lighting for your Bronco

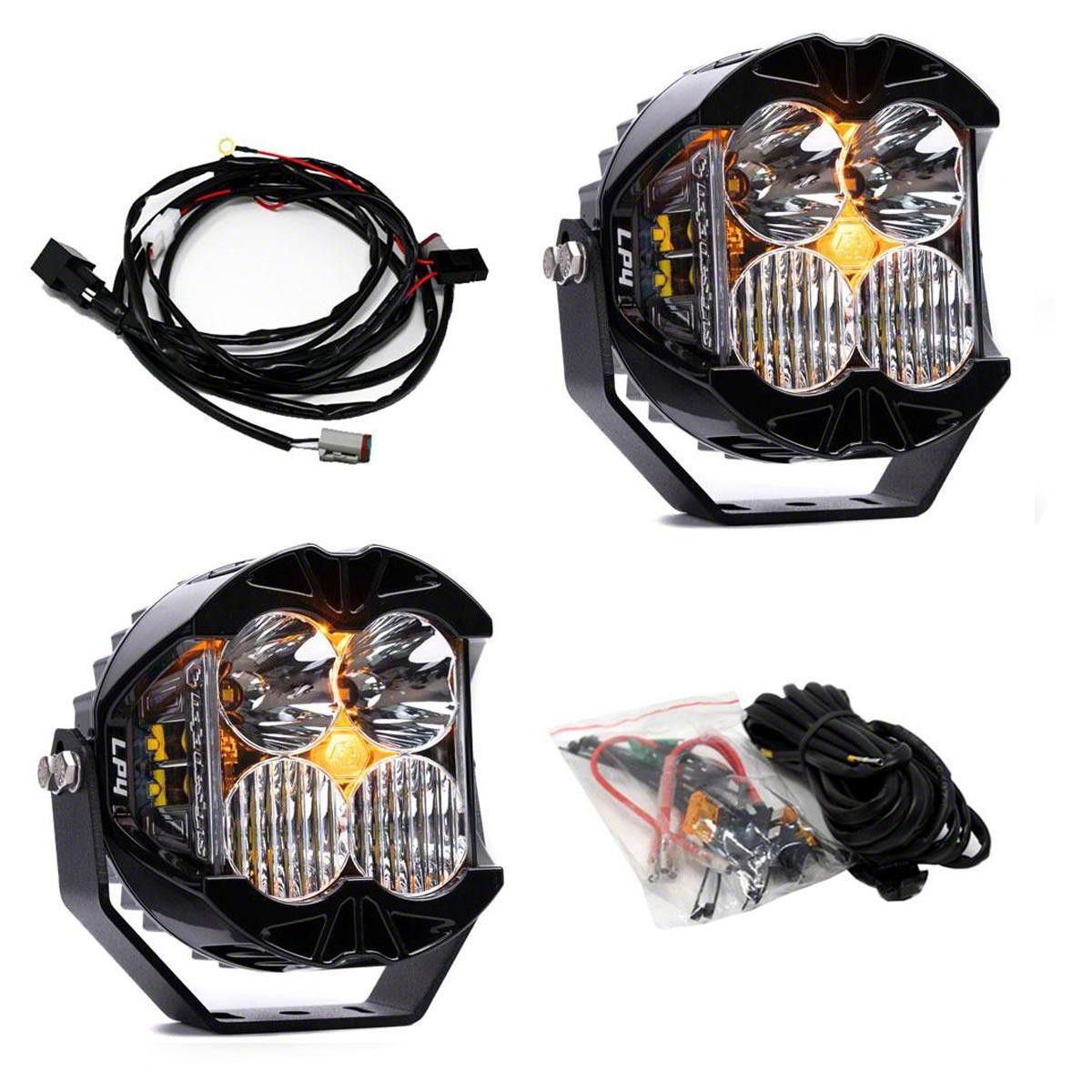

Baja Designs LP4 Pro LED Auxiliary Light Pods with Amber Backlight; Driving/Combo Beam; Clear (Universal; Some Adaptation May Be Required)

Item FB35407
Product Image
162 Reviews of Baja Designs
Our Price

$963.55 pair

Military, Medical & First Responders $48.18 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Mounting Hardware Material Stainless Steel
        • _x000D_
      • Overvoltage Protection Built-In
        • _x000D_
      • Product Type LP4 Pro LED Light Pod Pair With Wiring Harness
        • _x000D_
      • Secondary Amperage Rating 1.000 Amp
        • _x000D_
      • Secondary Brightness 1972 Lumens
        • _x000D_
      • Secondary Light Quantity 4 LEDs
        • _x000D_
      • Secondary Lighting Technology LED
        • _x000D_
      • Secondary Lighting Type Integrated Peripheral Technology IPT
        • _x000D_
      • Secondary Wattage 15 Watts
        • _x000D_
      • Terminal Connector DT06-4S Deutsch
        • _x000D_
      • Terminal Type Mating Connector
        • _x000D_
      • Universal Or Specific Universal
        • _x000D_
      • Wattage 75.900 Watts
        • _x000D_
      • Wiring Harness Included Yes
        • _x000D_
      • Amperage Rating 5.500 Amp
        • _x000D_
      • Average Rated Life 49,930 Hours
        • _x000D_
      • Backlight Amperage Rating 0.350 Amp
        • _x000D_
      • Backlight Wattage 4.830 Watts
        • _x000D_
      • Beam Pattern Driving/Combo
        • _x000D_
      • Bezel Material Powder Coat Cast Aluminum
        • _x000D_
      • Brightness 8857 Lumens
        • _x000D_
      • Description Driving/Combo Clear Pair
        • _x000D_
      • Housing Color Black
        • _x000D_
      • Housing Material Powder Coat Cast Aluminum
        • _x000D_
      • Lens Color Clear
        • _x000D_
      • Lens Material Hardcoated Polycarbonate
        • _x000D_
      • Light Quantity 2
        • _x000D_
      • Lighting Modes Beam Day-Time Running Backlighting
        • _x000D_
      • Lighting Technology LED
        • _x000D_
      • Lighting Type Forward Projecting
        • _x000D_
      • Mounting Hardware Included Yes
        • _x000D_
      • Standards Compliance Durability Exceeds MIL-STD810G Mil-Spec Testing
        • _x000D_
      • Standards Compliance Impact Resistance IK10 Compliant Mechanical Impact Testing
        • _x000D_
      • Standards Compliance Water Resistance IP69K Waterproof Up To 9ft And Pressure Washable
        • _x000D_
      • Depth 3.200 Inches
        • _x000D_
      • Height 5.100 Inches
        • _x000D_
      • Length 5.100 Inches
        • _x000D_
      • Weight 2.800 Pounds
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Powerful Off-Road Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pods with Amber Backlight and Driving/Combo Beam in Clear deliver a high-intensity illumination solution ideal for night driving and off-road use. With an 8,857-lumen output and a 200-degree light spread, these pods enhance visibility and safety for trail riding, worksite illumination, and other demanding conditions.

      _x000D__x000D_

      Construction and Appearance. Built with durable powder coat cast aluminum housing finished in black for corrosion resistance and style, these light pods feature hardcoated polycarbonate lenses for superior impact protection. Stainless steel mounting hardware ensures long-lasting installation.

      _x000D__x000D_

      Installation. Installation is simple with the included wiring harness and mating DT06-4S Deutsch connectors, providing a secure electrical connection. Most applications require no drilling, making mounting convenient for professionals and enthusiasts alike.

      _x000D__x000D_

      Warranty. This product includes a limited lifetime warranty, ensuring coverage against defects in materials and workmanship.

      _x000D__x000D_

      Application. Designed for universal fitment with some adaptation needed to accommodate various vehicle makes and models.

      Baja Designs 297803

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

      What's in the Box

      • (1) Light
      • (1) Bracket
      • (1) Hardware pack including 1/4”-20 bolts
      • (1) Hardware pack including 3/8” bolts
      • (2) Longer 1/4”-20 bolts (for bottom of bracket)
      • (1) Center 3/8” bolt (for bottom of bracket)
      • Washers (associated with bolts)
      • Deustsch Connector (DT06-4S) for wiring harness
      • (6) Bolts for LP9 bezel (for lens swap)
      • (4) Bolts for LP6 & LP4 bezel (for lens swap)
      • O-ring for lens housing
      • 64-0172 LP9 Pro Wire Harness (recommended)
      • (1) Relay PN: 4RD 933 332-18
