2021-2026
Installation Time
(approx) 3 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find Auxiliary Lighting for your Bronco

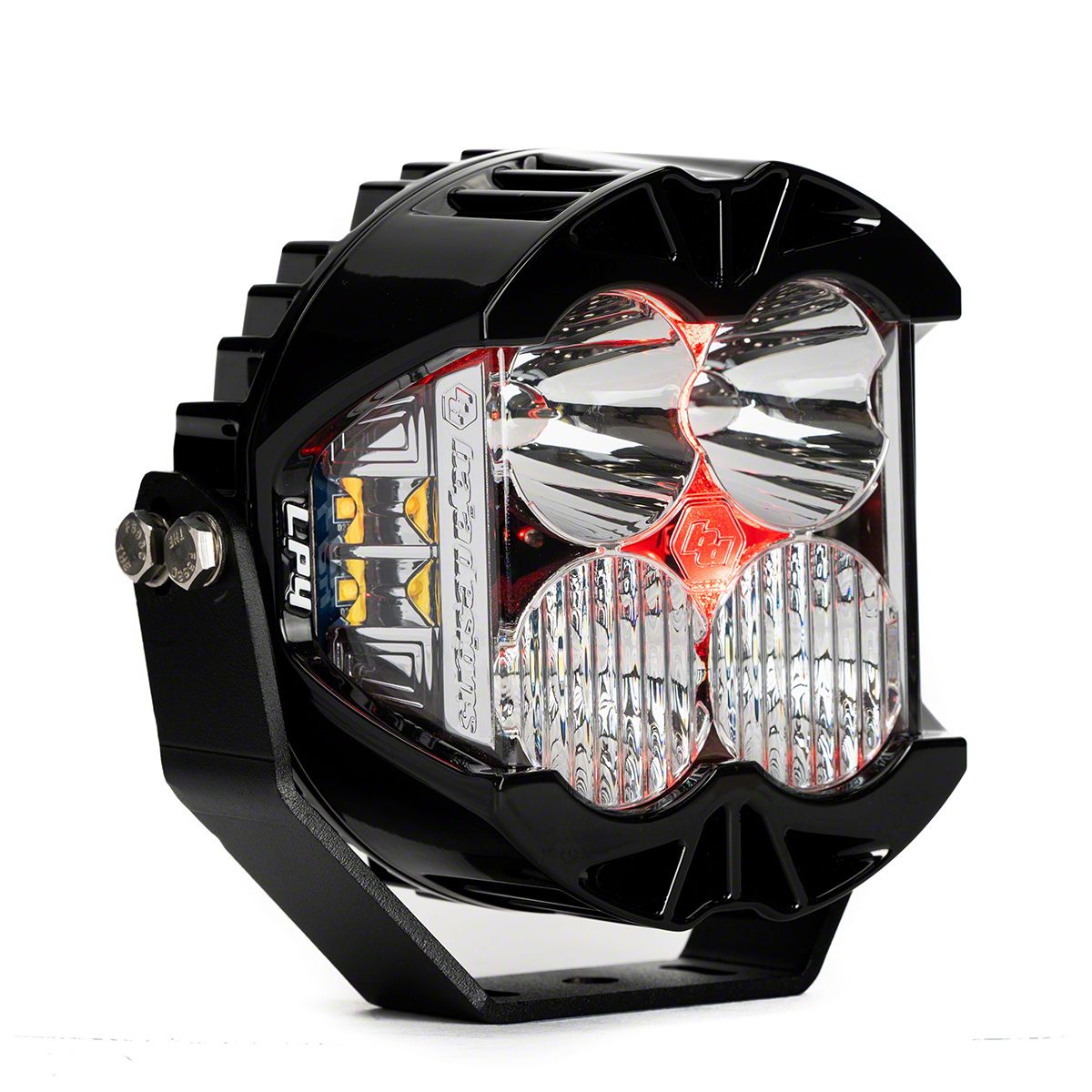

Baja Designs LP4 Pro LED Auxiliary Light Pod with Red Backlight; Driving/Combo Beam; Clear (Universal; Some Adaptation May Be Required)
Item FB35405
Our Price
$437.95 each
Military, Medical & First Responders
$21.90 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Spot Beam Pattern _x000D_
- Clear Lens Color _x000D_
- Hardcoated Polycarbonate Lens Material _x000D_
- One Light Quantity _x000D_
- Four Lighting Modes With Beam And Day-Time Running Backlighting _x000D_
- Four LEDs For Peripheral Lighting _x000D_
- LED Lighting Technology _x000D_
- Forward Projecting Lighting Type _x000D_
- Mounting Hardware Included _x000D_
- Stainless Steel Mounting Hardware Material _x000D_
- Built-In Overvoltage Protection _x000D_
- DT06-4S Deutsch Mating Connector Terminal Type _x000D_
- Universal Fitment _x000D_
- 75.9 Watts Power Consumption _x000D_
- 8857 Lumens Brightness Output _x000D_
- 1.0 Amp Secondary Amperage Rating _x000D_
- 1972 Lumens Secondary Brightness With Integrated Peripheral Technology _x000D_
- 15 Watts Secondary Power (Peripheral) _x000D_
- 5.5 Amp Amperage Rating (Primary) _x000D_
- Average Rated Life Of 49,930 Hours _x000D_
- 0.35 Amp Backlight Amperage Rating _x000D_
- 4.83 Watts Backlight Power Consumption _x000D_
- Black Powder Coat Cast Aluminum Housing Material _x000D_
- Powder Coat Cast Aluminum Bezel Material _x000D_
- Dimensions Are 5.1 Inches Height, 5.1 Inches Length, 3.2 Inches Depth _x000D_
- Weighs 2.8 Pounds _x000D_
- Meets Or Exceeds MIL-STD810G Durability Standards _x000D_
- IK10 Compliant Impact Resistance _x000D_
- IP69K Waterproof Rating, Pressure Washable And Submersible _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 3 to 3.75 Inch |
Description
High-Performance Auxiliary Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pod with Red Backlight; Driving/Combo Beam; Clear is engineered to deliver powerful illumination for off-road and auxiliary driving needs. It combines intense forward-projecting lumens with peripheral lighting for enhanced visibility across a broad field, improving safety and functionality in diverse driving conditions.
_x000D__x000D_Construction and Appearance. This light pod features a durable powder-coated cast aluminum housing and bezel that resist harsh environments. The lens is made from hardcoated polycarbonate for optimal durability and clarity, protected by a sleek black finish that complements any vehicle setup.
_x000D__x000D_Installation. Installation of this light pod is straightforward with included stainless steel mounting hardware and a robust mating connector system. No specialized drilling is typically necessary, making it suitable for quick mounting and reliable integration with existing setups.
_x000D__x000D_Warranty. The product is covered by a limited lifetime warranty, ensuring long-term reliability and support. Application. Designed to fit universally, this light pod may require minor adaptations depending on the vehicle and mounting location.
Baja Designs 290014
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) LP4 Pro LED Auxiliary Light Pod
- Mounting Hardware
- (1) Wiring Harness
