Find for your Bronco
Baja Designs 50-Inch OnX6+ Dual Control Roof Light Bar Kit (21-26 Bronco)Find parts that fit my vehicle
Item FB7493
Our Price
$2,379.25 kit
Military, Medical & First Responders
$118.96 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Depth 4.29 Inches
- Height 2.69 Inches
- Length 50 Inches
- Weight 18.65 Pounds
- Amperage Rating 28.2 Amps High
- Average Rated Life 49,930 Hours
- Beam Pattern Driving/Combo
- Bezel Material Billet Machined Aluminum
- Brightness 39,910 Lumens High
- Description Straight Driving/Combo Amber/Clear
- Housing Color Black
- Housing Material Aircraft Grade Aluminum With Mil-Spec Hard Anodize
- Lens Color Amber/Clear
- Lens Material Hardcoated Polycarbonate
- Light Quantity 1
- Lighting Modes High Beam
- Lighting Quantity 30
- Lighting Technology LED
- Lighting Type Forward Projecting
- Mounting Hardware Description Mounting Brackets
- Mounting Hardware Included Yes
- Mounting Hardware Material Stainless Steel
- Overvoltage Protection Built-In
- Product Type OnX6+ 50 Inch Dual Control LED Light Bar
- Universal Or Specific Universal
- Wattage 346 Watts High
- Wiring Harness Included No
- Standards And Compliance Durability Exceeds MIL-STD810G (Mil-Spec Testing)
- Standards And Compliance Impact Resistance IK10 Compliant (Mechanical Impact Testing)
- Standards And Compliance Water Resistance IP69K (Waterproof Up To 9 Feet & Pressure Washable)
- Fits 21-25 Bronco
| Brand | Baja Designs |
| Light Bar Width | 50 Inch and Up |
| Light Bar Shape | Straight |
Description
Dual Control Lighting. The Baja Designs 50-Inch OnX6+ Dual Control Roof Light Bar Kit combines dual zone LED lighting to provide customizable illumination for varying driving conditions. Designed to project far-reaching spot beams alongside a wider driving combo, it enhances trail visibility and safety during night driving. This light bar kit allows independent control of the inner and outer light sections, adapting to different terrain and use cases effectively.
Construction and Appearance. Featuring a housing made from aircraft-grade aluminum with a military-spec hard anodized finish, the light bar is built for durability and corrosion resistance. The bezel is crafted from billet machined aluminum, and the lens is made from hardcoated polycarbonate with amber and clear color options. Its black housing and precision engineering combine ruggedness with a refined aesthetic suitable for off-road use.
Installation. Installation is straightforward with vehicle-specific mounting brackets and hardware included, designed to require no cutting, trimming, or drilling. The pre-sized wiring harnesses for toggle switches simplify the wiring process, making the setup achievable for those with basic mechanical skills.
Warranty. This product is backed by a limited lifetime warranty, ensuring long-term protection and customer assurance.
Application. Specifically designed to fit Ford Broncos from model years 2021 through 2025, including the Bronco Raptor from 2022 to 2025; note that this roof bar kit is not compatible with factory roof racks.
Baja Designs 447759
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box

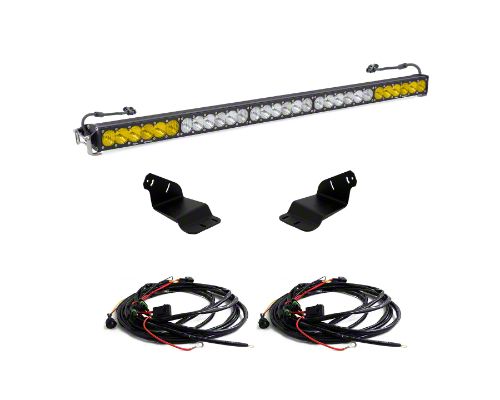

- OnX6+ 50-inch LED Light Bar
- Bronco Mounting Brackets
- (2) Toggle Switch Wiring Harness
