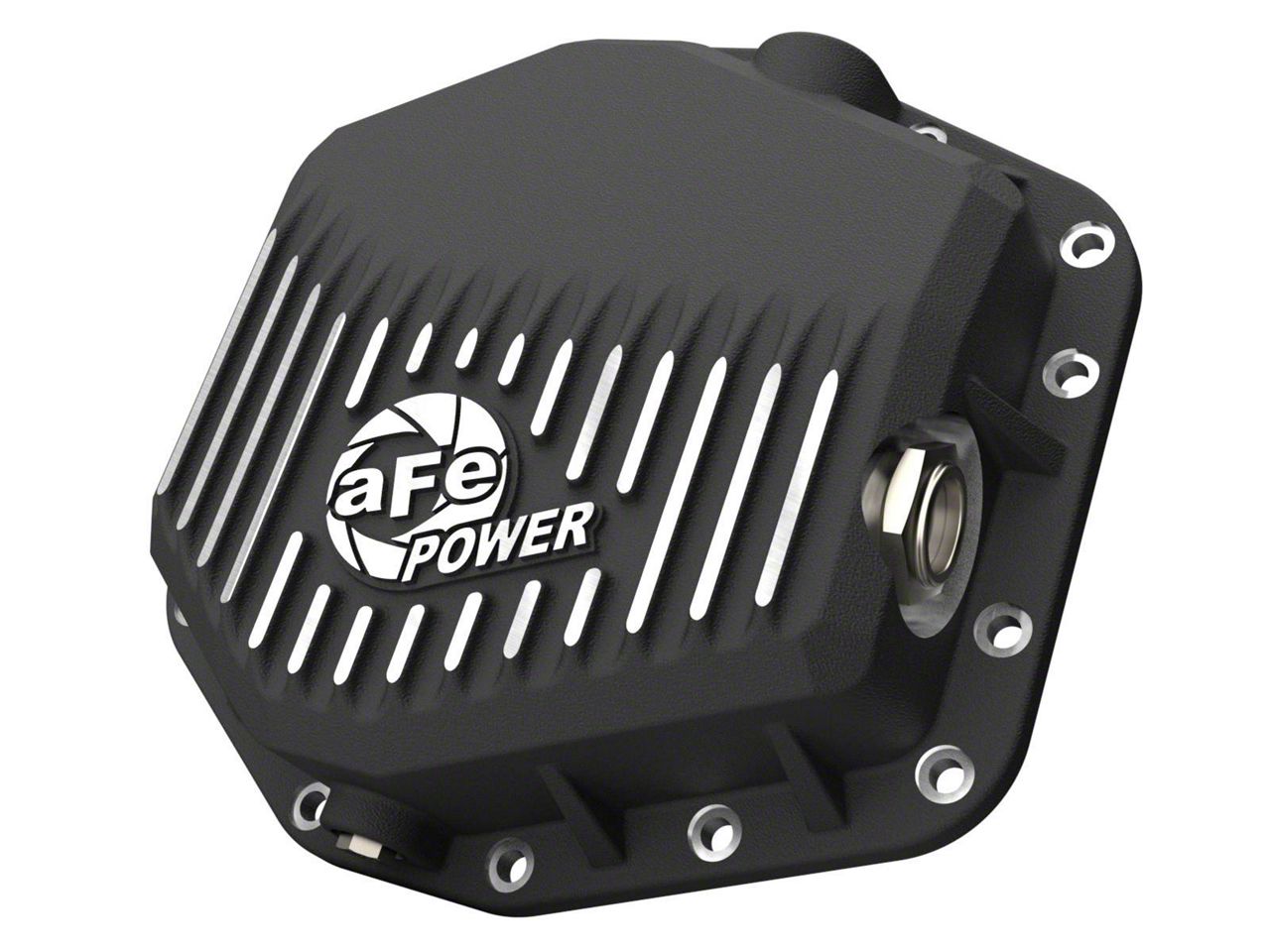

AFE Pro Series Rear Differential Cover with Machined Fins; Black (22-26 Bronco Raptor)Find parts that fit my vehicle
Item FB76612
Our Price
$328.00 each
Military, Medical & First Responders
$16.40 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- AFE Pro Series Differential Cover
- Has Machined Fins for Improved Cooling
- Matte Black Finish
- OE Compatible and Comparable
- Rear Model
- Crafted from High-Strength A356 Cast Aluminum Material
- Includes a Neodymium Magnetic Drain Plug
- For Use on Dana M235 Rear Axles
- Adds 0.5 Quart Compared to Stock
- Built-In Oil Level Sight Glass and Oil Level Plug to Prevent Overfilling
- Direct Replacement
- Comes in Singles
- Fits 2022 - 2026 Ford Bronco Raptor Models
Description
Axle Protection. The AFE Pro Series Differential Cover provides a durable rear axle upgrade designed to improve cooling, fluid control, and service access. This direct replacement cover features machined fins, a built-in oil level sight glass, an oil level plug, and a neodymium magnetic drain plug to support cleaner maintenance and improved protection. Crafted from high-strength A356 cast aluminum with a matte black finish, it adds 0.5 quart compared to stock and delivers strong performance value that fits 2022 - 2026 Ford Bronco Raptor models.
Construction and Appearance. Crafted from high-strength A356 cast aluminum material, this differential cover is designed to provide dependable strength, efficient heat transfer, and long-lasting durability under demanding drivetrain conditions. The matte black finish gives the cover a clean, rugged appearance while helping create a professional installed look. Machined fins support improved cooling by increasing surface area, while the built-in oil level sight glass and oil level plug help prevent overfilling during service. Quality casting, precise machining, and the included neodymium magnetic drain plug contribute to reliable protection, cleaner maintenance, and a refined performance-focused presentation.
Installation. This direct replacement differential cover is designed for an organized installation using standard axle service procedures on your vehicle. The adaptable design supports placement with the included screws, studs, washers, nuts, plugs, and gauge while keeping the process structured and serviceable. Proper surface cleaning, gasket or sealant preparation, and accurate hardware tightening are recommended during setup. After installation, fluid level should be verified through the service features, and the assembly should be inspected for secure mounting and leak-free operation.
Application. This AFE Pro Series Differential Cover fits 2022 - 2026 Ford Bronco Raptor models. It enhances the vehicle by improving rear axle cooling, increasing fluid capacity, and adding stronger protection for demanding driving conditions. The sight glass, magnetic drain plug, and oil level plug also make routine axle service cleaner, more precise, and more confidence-inspiring.
AFE 46-71460B
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Differential Cover, Black, Machined Fins (46-71460B)
- (11) Socket Head Screws, M8 X 1.25 X 25
- (3) Threaded Studs, M8 X 1.25 X 80
- (14) Flat Washers, 5/16 AN S/S
- (3) Hex Nuts, M8 X 1.25
- (1) Plug, M12 X 1.25
- (1) Aluminum Washer, M12, 15.85mm OD
- (1) Plug, 1/8" NPT
- (1) Magnetic Plug, 3/4" NPT, 6" Deep Reach (46-71460B)
- (1) Porthole View Gauge (46-71460B)
- (1) Plug, 3/4" NPT (46-7160A)
- (1) Plug, 1" NPT (46-71460A)
