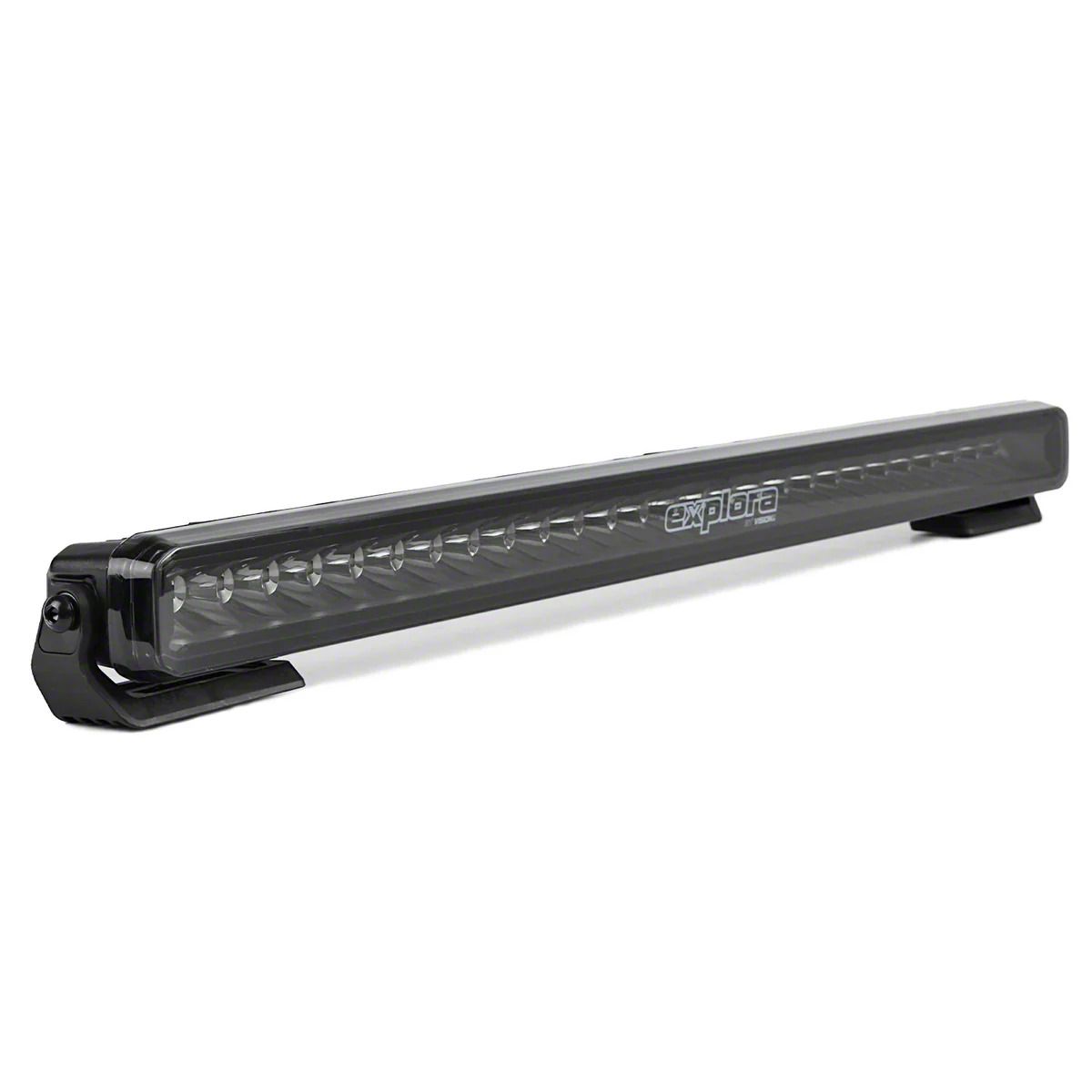

Vision X 30-Inch Explora Single Row LED Light Bar with Dual-Color DRL; Flood/Spot Combo Beam (Universal; Some Adaptation May Be Required)

Item TU66170
Product Image
61 Reviews of Vision X
Our Price

$399.00

Military, Medical & First Responders $19.95 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Explora Series Lights Were Purpose-Built To Deliver Modern Styling In A Completely Customizable Platform Giving Everyday Drivers Unprecedented Versatility At An Affordable Price Point
        • _x000D_
      • Switchback Dual-Color DrLs, Multi-Color Lens Options, And Multi-Color Trim Rings Provide Unlimited Customization That Are Guaranteed To Match Your Build
        • _x000D_
      • Impressive Beam Performance And Internal Relay System Included
        • _x000D_
      • Available In 10, 20, And 30 Inch Lengths In Both Single And Double Row Profiles
        • _x000D_
      • Next-Generation Circuit Design With 2-Position DrL That Can Run White, Amber, Or Switch-Back Mode Synchronizing With Factory Turn Signal
        • _x000D_
      • Internal Mosfet Eliminates Need For External Relays For Easy Wiring
        • _x000D_
      • Interchange Snap-On Lens Covers And Silicone Trim Rings Available For Customization
        • _x000D_
      • Lenses Available In Yellow, Clear, Smoke, Or Black-Out
        • _x000D_
      • Trim Rings Available In Red, Orange, Yellow, Green, Blue, And Pink
        • _x000D_
      • X-Drive LEDs Produce 9,500 Lumens With Ultra-Reflective Honeycomb Optic Backed By Eight High-Output LEDs
        • _x000D_
      • Dual-Color DrL Features Crisp White Or Amber Output Matching OEM Marker Lights
        • _x000D_
      • Switch-Back Technology Allows Amber DrL To Flash In Sync With Turn Signals
        • _x000D_
      • Swappable Lens System Includes Smoked, Clear, And Selective Yellow Lens Options
        • _x000D_
      • Custom Colored Rubber Trim Rings Surround Outer Portion Of Lens
        • _x000D_
      • Internal Relay With Modular Switching Enables Trigger Wire Or Universal Switch Activation
        • _x000D_
      • LEDs Are CREE XTE (5W Each)
        • _x000D_
      • Power Consumption Is 140W With 11.67A Amp Draw
        • _x000D_
      • Raw Lumens Output Is 9,500
        • _x000D_
      • Beam Distance Is 1771 Feet (540 Meters)
        • _x000D_
      • Beam Width Is 197 Feet (60 Meters)
        • _x000D_
      • 3-Pin DT Connector For Wiring
        • _x000D_
      • Color Temperature Is 6000K
        • _x000D_
      • Operating Voltage Range 9-32 VDC
        • _x000D_
      • Pod Size Is 30.50 Inches Round By 2.52 Inches Deep
        • _x000D_
      • Pod Weight Is 4.5 Pounds
        • _x000D_
      • IP Rating Is IP68 & 69K Waterproof, Submersible & High-Pressure Spray
        • _x000D_
      • EMC Compliance Includes CISPR 25, CE, And UKCA
        • _x000D_
      • Includes Limited Lifetime Warranty
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Advanced Off-Road Lighting. The Vision X 30-Inch Explora Single Row LED Light Bar with Dual-Color DRL; Flood/Spot Combo Beam is designed to provide exceptional lighting for off-road and automotive use. It offers modern styling combined with high-performance illumination, customizable lighting options, and versatile use cases such as driving, fog, or marker light enhancement.

      _x000D__x000D_

      Construction and Appearance. Constructed with robust materials and incorporating an ultra-reflective honeycomb-style optic backed by high-output CREE XTE LEDs, this light bar delivers 9,500 lumens. It features a durable, waterproof build with an IP68 and IP69K rating allowing submersion and high-pressure spray resistance. The modular design includes swappable lens covers and rubber trim rings available in multiple colors for tailored aesthetic appeal.

      _x000D__x000D_

      Installation. Installation is straightforward thanks to the integrated internal relay system and modular wiring harness, negating the need for external relays. No drilling is typically required, facilitating easier mounting and wiring integration.

      _x000D__x000D_

      Warranty. The product comes with a limited lifetime warranty.

      _x000D__x000D_

      Application. This light bar is universal and designed to fit a wide range of vehicles with some adaptation potentially required for specific installations.

      Vision X EX-LB28S
