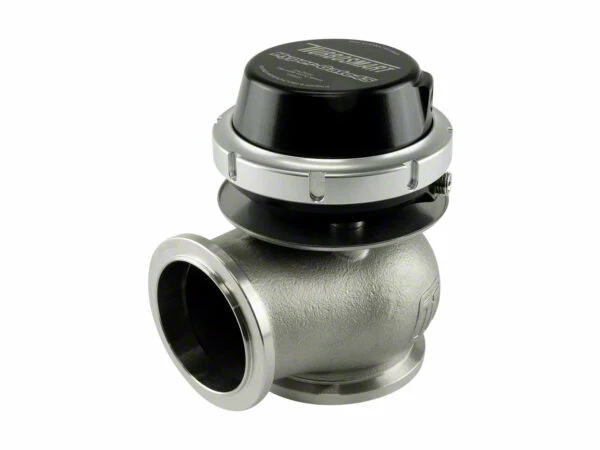

Turbosmart Gen4 HyperGate45 External Wastegate; 14 PSI; Black (Universal; Some Adaptation May Be Required)
Item J183410
Our Price
$468.89 each
Military, Medical & First Responders
$23.44 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- Gen4 HyperGate45 External Wastegate with 14 Psi Spring Pressure _x000D_
- Manufactured with Stainless Steel Cast Body and Aluminium Actuator Housing _x000D_
- Equipped with V-Band Inlet and Outlet Compatible with 44/46mm Peer Flanges _x000D_
- Features a Unique Locking Collar Design for Secure Assembly _x000D_
- Includes Solid Piece Stainless Steel Valve and Proprietary High-Temperature Silicon Nomex Diaphragm _x000D_
- Twin 1/16” NPT Reference Ports for Versatile Boost Control Connections _x000D_
- Pre-Fitted Springs Range from 3 to 26 Psi for Adjustable Boost Control _x000D_
- Includes Gen4 Stainless Steel Valve Seat, V-Band Clamps, Weld Flanges, Locking Collar Tool, Blanking Plugs, and Nipples _x000D_
- Hand Assembled and Individually Tested Before Shipping _x000D_
- Suitable for Pump Fuel and E85 Applications _x000D_
- Designed for Street Performance Use with Good Flow and Heat Characteristics _x000D_
- Universal Fit; Some Adaptation May Be Required _x000D_
Description
Precision Wastegate Control. The Turbosmart Gen4 HyperGate45 External Wastegate with 14 PSI spring pressure is engineered to regulate exhaust pressure in turbocharged engines, maintaining safe and consistent boost levels. It diverts excess exhaust gases away from the turbocharger turbine to prevent overboost and potential engine damage, making it essential for enthusiasts seeking reliable turbo pressure control and enhanced engine longevity.
_x000D__x000D_Construction and Appearance. This wastegate features a robust stainless steel cast body combined with an aluminium actuator housing for durability and resistance to corrosion. It is finished with a black anodized coating that offers heat resistance while enhancing visual appeal. The precision-machined stainless steel valve and proprietary high-temperature silicon Nomex diaphragm ensure dependable performance under demanding conditions.
_x000D__x000D_Installation. Installation is straightforward with included components such as V-band clamps and weld flanges, designed to fit peer flange dimensions for easy assembly. Typically, no drilling is required. The design includes an anti-vibration locking collar that ensures secure installation, facilitating integration into compatible exhaust manifolds.
_x000D__x000D_Application. Suitable for universal applications with some adaptation required. Primarily designed for street performance setups using 45mm valves, it fits a wide range of turbocharged vehicles that require external wastegates without motorsport-specific features.
Turbosmart TS-0506-1041
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) External Wastegate
- Mounting Bracket
- Hardware
- Instruction Manual
