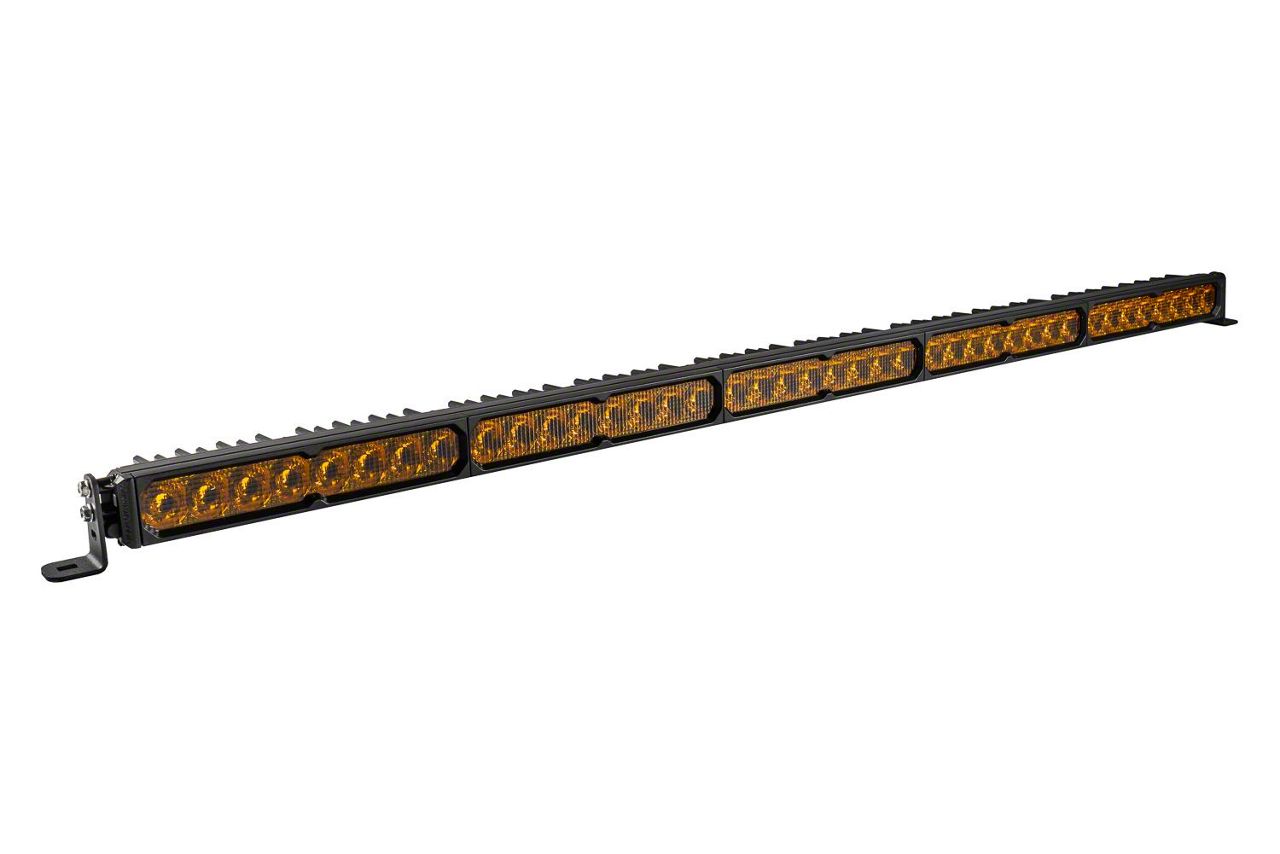

Diode Dynamics SS50 Pro Single Row LED Light Bar with Amber Backlight; Yellow Driving (Universal; Some Adaptation May Be Required)
Item TU69331
Our Price
$1,299.95
Military, Medical & First Responders
$65.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available In Sport And Pro Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For The Extreme With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Peak Beam Intensity Up To 835,000 Candela (Spot Pro) _x000D_
- Illuminance Up To 8,350 Lux At 10 Meters _x000D_
- Raw Output Up To 62,720 Lumens _x000D_
- Output Color 3000K Yellow _x000D_
- Beam Angles Include Combo/Driving 60°X30°, SAE Driving 20°X12°, Flood 100°X80°, And Spot 8°X8° _x000D_
- Power Consumption Up To 295 Watts _x000D_
- Operating Voltage Range 9-30V _x000D_
- Operating Temperature Range From -40°C To 85°C (-40°F To 185°F) _x000D_
- Osram Ostar Projection Compact And Lumileds Automotive Grade LED Emitters _x000D_
- Deutsch DT-P Input Connector _x000D_
- Aluminum PCB And Copper PCB Construction _x000D_
- Polycarbonate Lens And Aluminum Heatsink _x000D_
- Stainless Steel Brackets _x000D_
- Passive Cooling With Heatsink _x000D_
- IP69K Waterproof High-Pressure Intrusion Rating _x000D_
- Product Dimensions Approximately 2.01 X 51.63 X 2.46 Inches _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 50 Inch and Up |
Description
HIGH-PERFORMANCE LIGHTING. The Diode Dynamics SS50 Pro Single Row LED Light Bar with Amber Backlight; Yellow Driving delivers exceptional illumination designed for automotive and off-road applications. It combines advanced TIR optics with a powerful LED array to provide efficient, focused light output, improving visibility in varied environments including challenging weather conditions.
_x000D__x000D_Construction and Appearance. This light bar features a rugged aluminum housing finished with an ASTM-standard powdercoat that enhances durability and corrosion resistance. The lens is crafted from polycarbonate, and the internal circuitry is built with aluminum and copper PCBs to optimize thermal management. The amber backlight offers a distinctive aesthetic and practical accent lighting.
_x000D__x000D_Installation. Installation is straightforward, typically requiring basic tools and 30 to 60 minutes to complete. Universal mounting brackets are included, and while some adaptation may be needed, drilling is generally minimal or not required depending on the vehicle setup.
_x000D__x000D_Warranty. This product includes a limited lifetime warranty providing long-term coverage against manufacturing defects, ensuring reliability and customer satisfaction.
_x000D__x000D_Application. Designed with a universal fit, this light bar may require some adaptation for mounting on various vehicles or applications. It is engineered to suit a wide range of automotive lighting needs.
