Find LED Light Bars for your Tundra

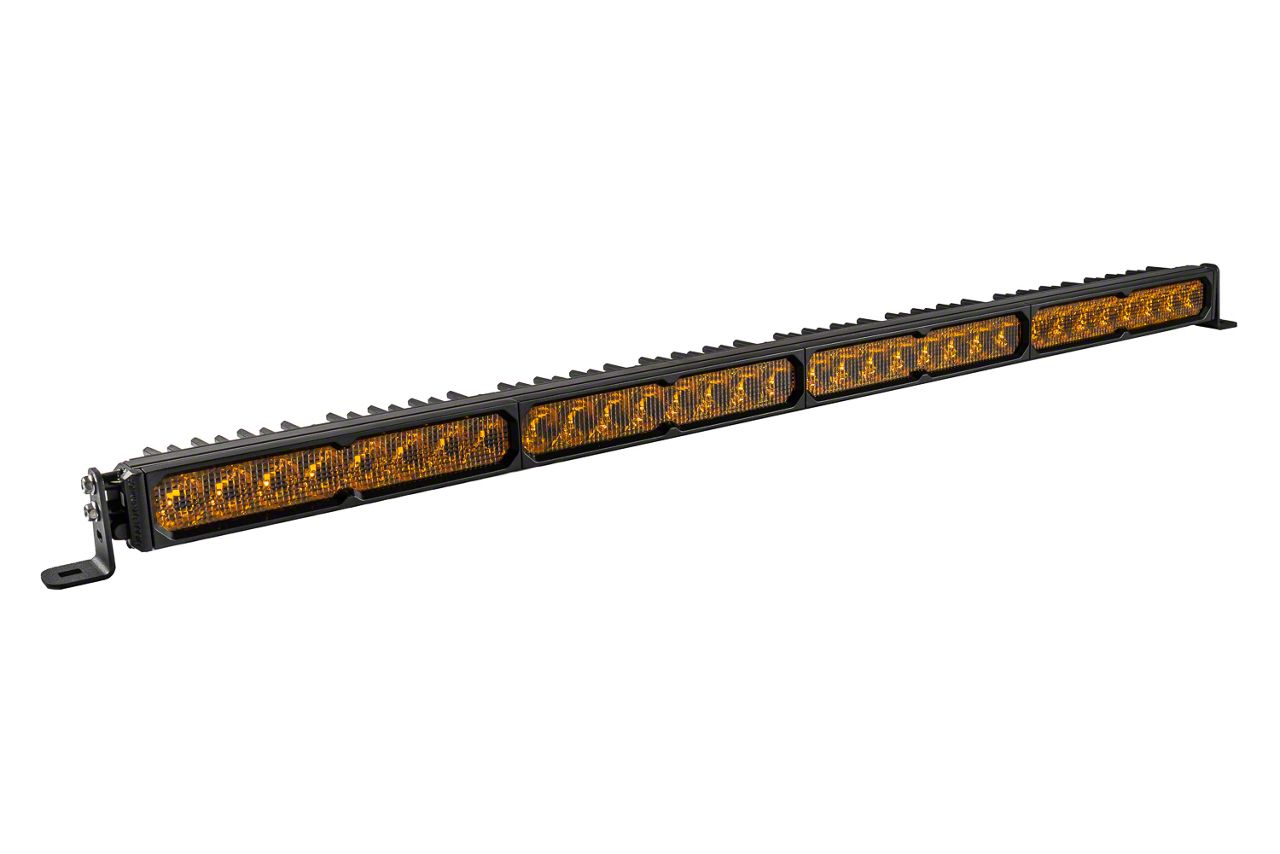

Diode Dynamics SS40 Sport Single Row LED Light Bar with Amber Backlight; Yellow Combo (Universal; Some Adaptation May Be Required)

Item TU69295
Product Image
Our Price

$799.95

Military, Medical & First Responders $40.00 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Patented TIR Optics for Maximum Efficiency and Output.
        • _x000D_
      • Upgraded Beam Patterns Engineered for Real-World Performance.
        • _x000D_
      • True Amber Backlight Provides Unique Accent Lighting.
        • _x000D_
      • Available in Sport and Pro Power Levels.
        • _x000D_
      • Durable Aluminum Housing with ASTM-Standard Powdercoat Finish.
        • _x000D_
      • Built for the Extreme with IP69K Waterproof Rating.
        • _x000D_
      • Limited Lifetime Warranty.
        • _x000D_
      • Made in USA with Global Materials.
        • _x000D_
      • Peak Beam Intensity Ranges from 7,800 Cd to 665,000 Cd Depending on Beam and Power Level.
        • _x000D_
      • Illuminance from 78 Lux to 6,650 Lux at 10 Meters.
        • _x000D_
      • Raw Output Between 14,752 Lm and 50,176 Lm.
        • _x000D_
      • Yellow Output at 3000K Color Temperature.
        • _x000D_
      • Beam Angle Options Include Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8°.
        • _x000D_
      • Power Consumption is 165W for Sport and 225W for Pro Models.
        • _x000D_
      • Operating Voltage Range from 9 to 30V.
        • _x000D_
      • Operating Temperature from -40°C to 85°C (-40°F to 185°F).
        • _x000D_
      • High-Quality Osram Ostar Projection Compact Lumileds Automotive Grade LED Emitters.
        • _x000D_
      • Deutsch DT-P Input Connector.
        • _x000D_
      • Cooling via Passive Heatsinks.
        • _x000D_
      • Includes Wire Pigtail and Universal Bracket Set.
        • _x000D_
      • Product Dimensions Are Approximately 2.01 x 41.63 x 2.46 Inches.
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required.
        • _x000D_

      Description

      High-Performance LED Light Bar. The Diode Dynamics SS40 Sport Single Row LED Light Bar with Amber Backlight; Yellow Combo is engineered to deliver superior illumination for a variety of automotive applications. It enhances visibility in adverse weather with its dedicated yellow light output and combines intensity with precise optics to give users a focused and efficient beam pattern designed for real-world driving conditions.

      _x000D__x000D_

      Construction and Appearance. This light bar features a durable aluminum housing finished with an ASTM-standard powdercoat to resist corrosion and wear. It is equipped with rugged polycarbonate lenses and premium materials such as copper and aluminum PCBs for optimal thermal management. The amber backlight adds a distinct and functional accent, fully illuminating the patented TIR optics.

      _x000D__x000D_

      Installation. Installation requires basic tools and typically takes between 30 to 60 minutes. The universal bracket set allows for flexible mounting options, and in many cases, drilling is not required depending on the vehicle and setup.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty, ensuring long-term reliability and support.

      _x000D__x000D_

      Application. Fits universal; some adaptation may be required to accommodate specific mounting surfaces or vehicle configurations.

      Diode Dynamics DD8383
