Find LED Light Bars for your Tundra

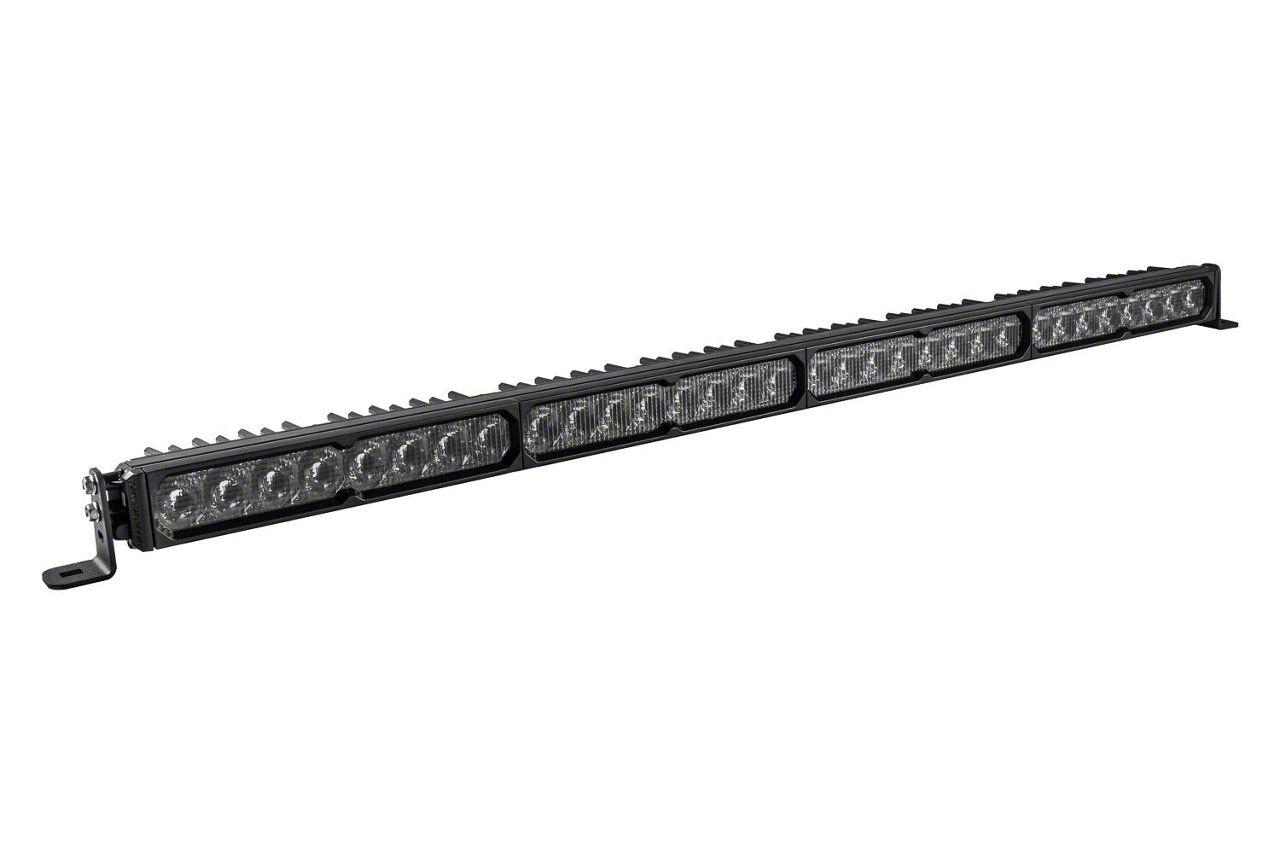

Diode Dynamics SS40 Sport Single Row LED Light Bar with Amber Backlight; White Driving (Universal; Some Adaptation May Be Required)
Item TU69290
Our Price
$799.95
Military, Medical & First Responders
$40.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- Modern Welcome Sequence And Selectable Backlight Color With SmartSelect Technology _x000D_
- Available In Sport And Pro Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For Extreme Conditions With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Multiple Beam Patterns: Combo/Driving, SAE Driving, Flood, Spot _x000D_
- Swappable Lenses For Custom Optics And Colors _x000D_
- SmartSelect Technology Allows Dual-Function Main Beam Control Without Extra Wiring _x000D_
- Multicolor Backlight With Eight Selectable Colors And Dynamic Startup Sequence On SmartSelect Models _x000D_
- Passive Cooling Via Aluminum Heatsink And Copper PCB _x000D_
- Operating Temperature Range From -40°F To 185°F (-40°C To 85°C) _x000D_
- Uses High-Quality Osram Ostar Projection Compact And Lumileds Automotive Grade LEDs _x000D_
- Deutsch DT-P Input Connector For Reliable Connection _x000D_
- Dimensions: 2.01 Inches High, 41.63 Inches Wide, 2.46 Inches Deep _x000D_
- Current Draw At 12.8V: 12.90 Amps (Sport) Or 17.58 Amps (Pro) _x000D_
- Operating Voltage: 9-30 Volts _x000D_
- Includes Wire Pigtail And Universal Bracket Set _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 40 to 49 Inch |
Description
Advanced LED Lightbar. The Diode Dynamics SS40 Sport Single Row LED Light Bar with Amber Backlight; White Driving is engineered to deliver exceptional light output and precise beam patterns suited for a wide range of automotive uses. It offers powerful, efficient illumination to enhance visibility during driving, off-roading, or work activities, making it an essential upgrade for those seeking performance and customizable lighting options.
_x000D__x000D_Construction and Appearance. Crafted from durable aluminum with an ASTM-standard powdercoat finish, this light bar is built to withstand harsh environments. It incorporates premium Osram and Lumileds LEDs behind patented TIR optics housed in a rugged polycarbonate lens assembly, providing both toughness and superior light output. Measuring just over 41 inches wide, it features a corrosion- and moisture-resistant design certified to IP69K waterproof standards.
_x000D__x000D_Installation. Installation generally takes 30 to 60 minutes using basic hand tools without specialized equipment. The included universal mounting brackets allow for adaptable placement; some adaptation might be necessary depending on the vehicle or application, but drilling is typically not required.
_x000D__x000D_Warranty. This light bar is backed by a limited lifetime warranty, reflecting its durability and quality.
_x000D__x000D_Application. Designed for universal fitment, some adaptation may be required to accommodate various vehicles and mounting locations, making it versatile for numerous automotive lighting needs.
Diode Dynamics DD8378
