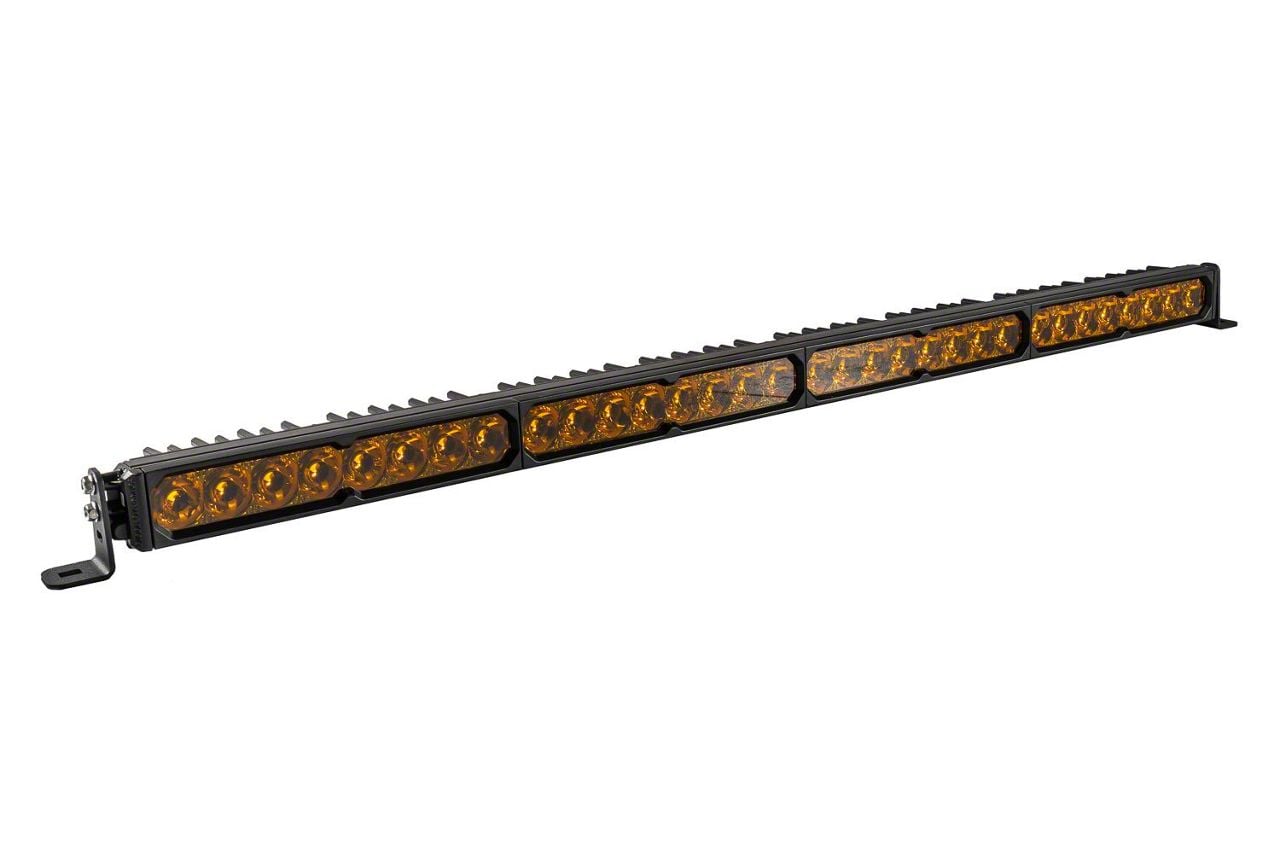

Diode Dynamics SS40 Pro Single Row LED Light Bar with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)

Item TU69315
Our Price

$1,049.95

Military, Medical & First Responders $52.50 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Patented TIR Optics For Maximum Efficiency And Output
      • _x000D_
      • Upgraded Beam Patterns Engineered For Real-World Performance
      • _x000D_
      • True Amber Backlight Provides Unique Accent Lighting
      • _x000D_
      • Available In Sport And Pro Power Levels
      • _x000D_
      • Durable Aluminum Housing With ASTM-Standard Powdercoat Finish
      • _x000D_
      • Built For Extreme Conditions With IP69K Waterproof Rating
      • _x000D_
      • Limited Lifetime Warranty
      • _x000D_
      • Made In USA With Globally Sourced Materials
      • _x000D_
      • Included Components: One LED Light Bar, One Wire Pigtail, Universal Bracket Set
      • _x000D_
      • Power Options: Sport 165 Watts, Pro 225 Watts
      • _x000D_
      • Operating Voltage Ranges From 9 to 30 Volts
      • _x000D_
      • Operating Temperature From Minus 40 Celsius To 85 Celsius
      • _x000D_
      • High-Intensity Osram Ostar Projection Compact, Lumileds Automotive Grade LEDs
      • _x000D_
      • Connector Type Deutsch DT-P Input
      • _x000D_
      • Cooling System Is Passive With Heatsink
      • _x000D_
      • Physical Dimensions: 2.01 Inches Height x 41.63 Inches Width x 2.46 Inches Depth
      • _x000D_
      • Beam Angles Include Combo/Driving 60x30 Degrees, SAE Driving 20x12 Degrees, Flood 100x80 Degrees, Spot 8x8 Degrees
      • _x000D_
      • Current Draw At 12.8 Volts: Sport 12.90 Amps, Pro 17.58 Amps
      • _x000D_
      • Backlight Fully Illuminated Amber That Fills The TIR Optic
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      HIGH-PERFORMANCE LIGHTING. The Diode Dynamics SS40 Pro Single Row LED Light Bar with Amber Backlight; Yellow Spot delivers exceptional lighting output with its specialized amber illumination designed for superior visibility in adverse weather conditions. It is intended for off-road use or automotive lighting upgrades where precision, intensity, and reliability are essential for enhanced safety and performance.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. Crafted with durable aluminum housing coated in an ASTM-standard powdercoat finish, this light bar integrates high-quality Osram and Lumileds automotive-grade LEDs housed behind polycarbonate lenses. The assembly features a passive heatsink for effective thermal management and includes a fully illuminated amber backlight for unique visual accentuation.

      _x000D__x000D_

      INSTALLATION. The SS40 Pro LED Light Bar requires a moderate level of installation expertise, generally taking 30 to 60 minutes using basic tools. Mounting can be performed with the included universal brackets, and some adaptation may be necessary depending on the vehicle application; drilling may or may not be required based on individual mounting needs.

      _x000D__x000D_

      WARRANTY. This product is backed by a limited lifetime warranty, providing coverage for defects and ensuring long-term reliability for the end user.
      APPLICATION. Fits universal; some adaptation may be required.

      Diode Dynamics DD8405
