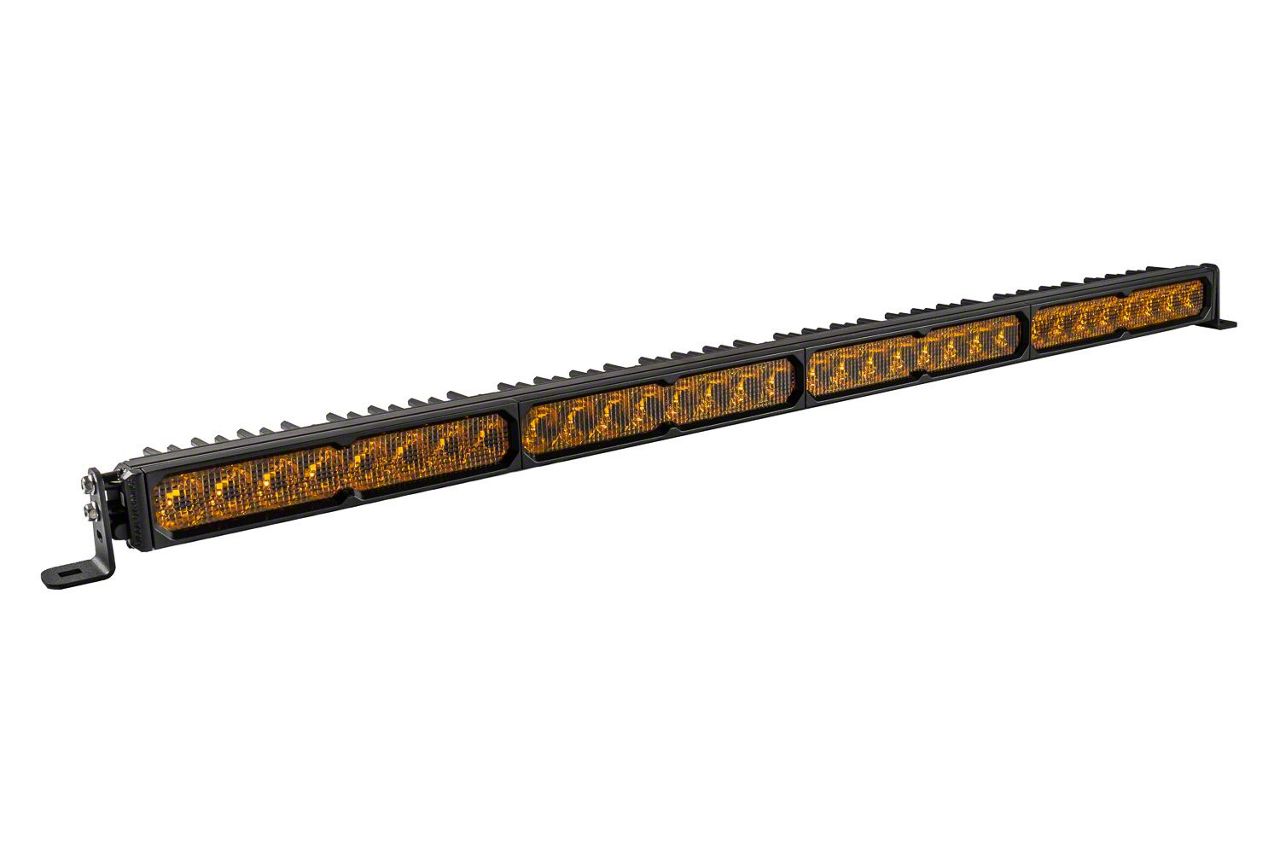

Diode Dynamics SS40 Pro Single Row LED Light Bar with Amber Backlight; Yellow Combo (Universal; Some Adaptation May Be Required)

Item TU69308
Our Price

$1,049.95

Military, Medical & First Responders $52.50 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Patented TIR Optics for Maximum Efficiency and Output.
      • _x000D_
      • Upgraded Beam Patterns Engineered for Real-World Performance, Including Combo/Driving, SAE Driving, Flood, and Spot Options.
      • _x000D_
      • True Amber Backlight Provides Unique Accent Lighting That Fully Fills the TIR Optic Lens.
      • _x000D_
      • Available in Sport and Pro Power Levels with Raw Output Up to 50,176 Lumens.
      • _x000D_
      • Durable Aluminum Housing with ASTM-Standard Powdercoat Finish for Corrosion and Wear Resistance.
      • _x000D_
      • Built for the Extreme with IP69K Waterproof Rating and Operating Temperature Range from -40°C to 85°C (-40°F to 185°F).
      • _x000D_
      • Limited Lifetime Warranty Ensures Long-Term Reliability.
      • _x000D_
      • Made in the USA with Global Materials, Featuring Materials Such as Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, and Stainless Steel Brackets.
      • _x000D_
      • Peak Beam Intensity Ranges Up to 665,000 Candela Depending on Optic and Power Level.
      • _x000D_
      • Illuminance Up to 6,650 Lux at 10 Meters.
      • _x000D_
      • Output Color Maintains at 3000K Yellow.
      • _x000D_
      • Operating Voltage Spans 9-30 Volts; Current Draw Ranges from 12.90 to 17.58 Amps at 12.8 Volts Depending on Power Level.
      • _x000D_
      • Polarity Is Specific.
      • _x000D_
      • Uses Osram Ostar Projection Compact and Lumileds Automotive Grade LEDs.
      • _x000D_
      • Deutsch DT-P Input Connector.
      • _x000D_
      • Cooling Is Passive Via Heatsink.
      • _x000D_
      • Product Dimensions Approximately 2.01 Inches by 41.63 Inches by 2.46 Inches.
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required.
      • _x000D_

      Description

      Advanced LED Lightbar. The Diode Dynamics SS40 Pro Single Row LED Light Bar with Amber Backlight in Yellow Combo is engineered to deliver superior lighting performance for off-road and extreme driving conditions. It provides highly focused illumination with minimal glare, enhancing visibility in inclement weather and demanding environments. This light bar is an essential lighting solution for automotive enthusiasts seeking rugged, reliable, and efficient performance designed for real-world applications.

      _x000D__x000D_

      Construction and Appearance. This light bar features a durable aluminum housing finished with an ASTM-standard powdercoat, ensuring resistance to corrosion and wear. It incorporates a polycarbonate lens and a passive aluminum heatsink design for efficient thermal management. The amber backlight offers a unique illuminated accent that fully fills the TIR optic lens, producing a distinct appearance not commonly found in other LED light bars.

      _x000D__x000D_

      Installation. Installation requires a basic toolset and typically takes between 30 to 60 minutes. The setup involves mounting with universal brackets designed for ease of use; no specialized drilling is normally required, though minor adaptation might be needed depending on the vehicle.

      _x000D__x000D_

      Warranty. The product comes with a limited lifetime warranty, ensuring long-term reliability and customer satisfaction.

      _x000D__x000D_

      Application. This LED light bar has a universal fit, with some adaptation potentially needed depending on specific vehicle configurations and mounting requirements.

      Diode Dynamics DD8397
