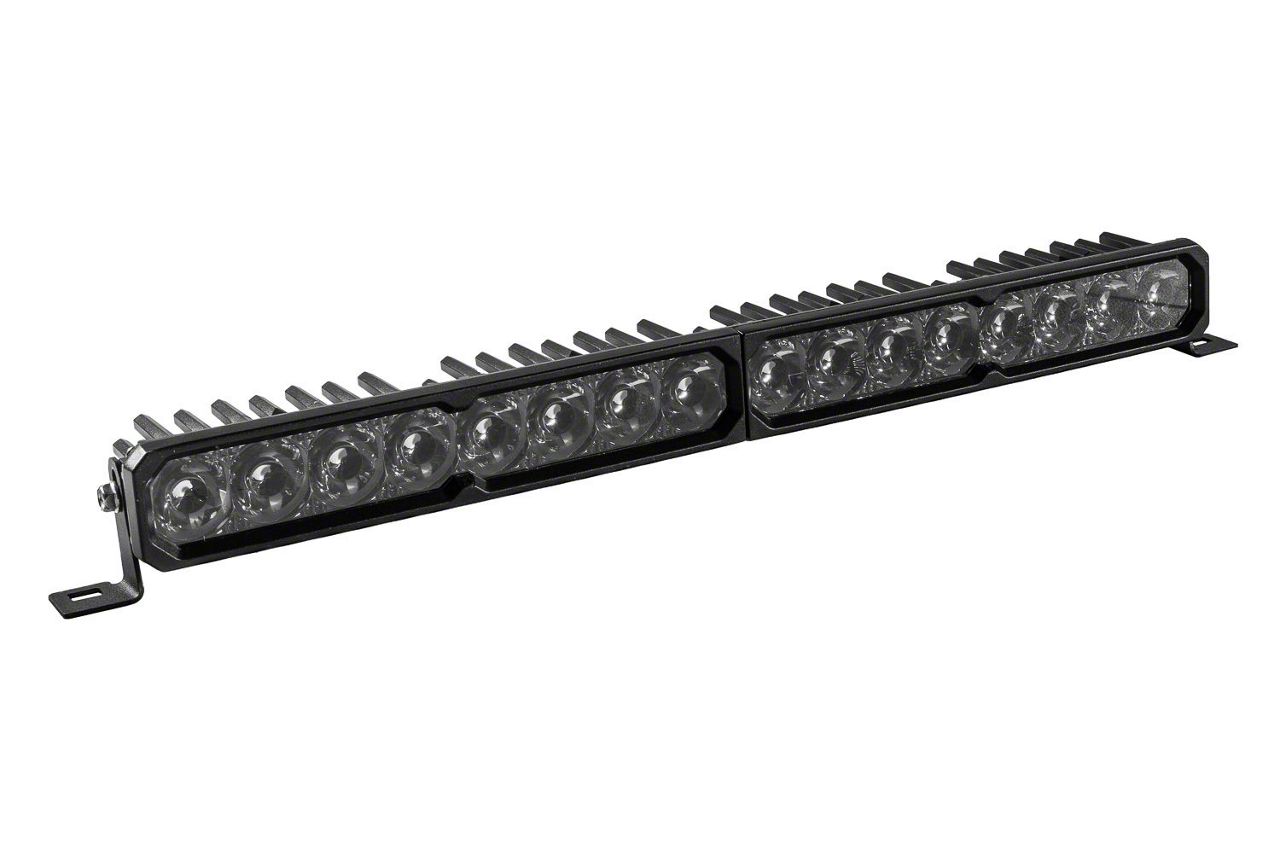

Diode Dynamics SS20 Pro Single Row LED Light Bar with SmartSelect Backlight; White Spot (Universal; Some Adaptation May Be Required)

Item TU69262
Product Image
Our Price

$599.95

Military, Medical & First Responders $30.00 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Patented TIR Optics For Maximum Efficiency And Output.
        • _x000D_
      • Upgraded Beam Patterns Engineered For Real-World Performance.
        • _x000D_
      • Modern Welcome Sequence And Selectable Backlight With SmartSelect Technology Offering Eight Colors And Dynamic Startup.
        • _x000D_
      • Available In Sport, Pro, And Max Power Levels.
        • _x000D_
      • Durable Aluminum Housing With ASTM-Standard Powdercoat Finish.
        • _x000D_
      • Built For Extreme Conditions With IP69K Waterproof Rating.
        • _x000D_
      • Limited Lifetime Warranty.
        • _x000D_
      • Made In USA With Global Materials.
        • _x000D_
      • Peak Beam Intensity Up To 386,000 Candela.
        • _x000D_
      • Illuminance Up To 3,860 Lux At 10 Meters.
        • _x000D_
      • Raw Output Up To 25,088 Lumens.
        • _x000D_
      • Color Temperature 6000K White.
        • _x000D_
      • Multiple Beam Angles Including Combo/Driving, SAE Driving, Flood, And Spot.
        • _x000D_
      • Power Consumption Ranging From 76.5 To 105 Watts Depending On Model.
        • _x000D_
      • Operating Voltage Between 9-30 Volts.
        • _x000D_
      • Operating Temperature From -40°F To 185°F (-40°C To 85°C).
        • _x000D_
      • High-Quality OSRAM OSTAR Projection Compact And Lumileds Automotive Grade LED Emitters.
        • _x000D_
      • Deutsch DT Input Connector.
        • _x000D_
      • Constructed With Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets.
        • _x000D_
      • Passive Cooling Via Heatsink For Efficient Thermal Management.
        • _x000D_
      • Product Dimensions Approximately 2.01 x 20.24 x 2.37 Inches.
        • _x000D_
      • Fits Universal Applications; Some Adaptation May Be Required.
        • _x000D_

      Description

      Advanced LED Lighting. The Diode Dynamics SS20 Pro Single Row LED Light Bar with SmartSelect Backlight; White Spot is engineered to provide superior illumination for off-road and auxiliary lighting applications. It delivers highly focused, intense white light with a selectable multicolor backlight, enhancing visibility and style for enthusiasts and professionals alike.

      _x000D_

      Construction and Appearance. This light bar features a rugged aluminum housing finished with an ASTM-standard powdercoat for durability and corrosion resistance. It employs a polycarbonate lens and stainless steel brackets for long-lasting performance. The fully encapsulated design ensures an IP69K waterproof rating suitable for harsh environments.

      _x000D_

      Installation. Installation requires only basic tools and typically takes 30-60 minutes. The universal bracket system allows adaptable mounting without drilling in most cases, simplifying the process for users.

      _x000D_

      Warranty. This product includes a limited lifetime warranty, providing assurance against defects and ensuring long-term reliability.

      _x000D_

      Application. Fits universal applications; some adaptation may be required depending on mounting location and vehicle specifics.

      Diode Dynamics DD8238
