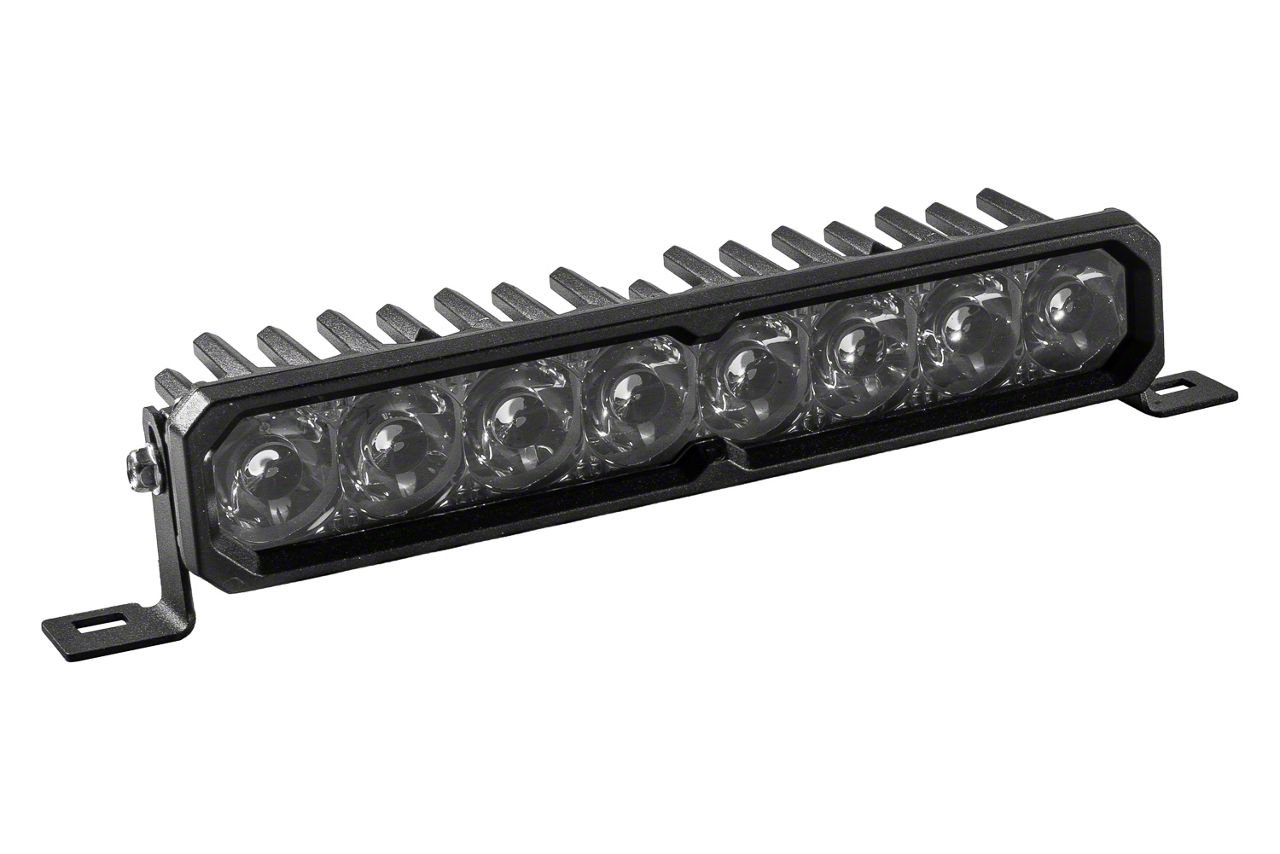

Diode Dynamics SS10 Max Single Row LED Light Bar with Amber Backlight; White Spot (Universal; Some Adaptation May Be Required)
Item TU69237
Our Price
$449.95
Military, Medical & First Responders
$22.50 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- Modern Welcome Sequence And Selectable Backlight With SmartSelect Technology _x000D_
- Available In Sport, Pro, And Max Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For Extreme Conditions With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty Included _x000D_
- Made In USA With Globally Sourced Materials _x000D_
- Backlight Fully Illuminates The TIR Optic _x000D_
- Available Beam Patterns: Combo/Driving, SAE Driving, Flood, Spot _x000D_
- Power Levels: Sport (40W), Pro (51.5W), Max (61W) _x000D_
- Color Temperature: 6000K Cool White _x000D_
- Operating Voltage: 9-30V _x000D_
- Current Draw @ 12.8V: Sport 3.13A, Pro 4.00A, Max 4.77A _x000D_
- Operating Temperature Range: -40°C To 85°C (-40°F To 185°F) _x000D_
- LED Emitters: Osram Boost HX, Osram Ostar Projection Compact, Lumileds Automotive Grade LED _x000D_
- Connector Type: Deutsch DT Input _x000D_
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets _x000D_
- Cooling Method: Passive Heatsink _x000D_
- Ingress Protection Rating: IP69K Waterproof And High Pressure Resistant _x000D_
- Product Dimensions: 2.01 x 10.24 x 2.37 Inches _x000D_
- Includes One LED Light Bar, One Wire Pigtail, And Universal Bracket Set _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 10 to 19 Inch |
Description
Advanced LED Lighting. The Diode Dynamics SS10 Max Single Row LED Light Bar with Amber Backlight and White Spot delivers high-performance auxiliary lighting designed for both off-road and on-road use. It provides intense, focused illumination to enhance visibility in challenging conditions, ensuring safer and more confident driving with precise, far-reaching light.
_x000D_Construction and Appearance. Crafted with a rugged aluminum housing finished with ASTM-standard powdercoat for superior durability, this light bar withstands harsh environments. The optically clear, impact-resistant polycarbonate lens protects high-quality LED emitters mounted on copper and aluminum PCBs designed for efficient thermal management. The fully illuminated amber backlight highlights the TIR optic, combining functional enhancement with stylish design.
_x000D_Installation. Installation typically requires 30 to 60 minutes using basic hand tools, and no specialized drilling is necessary when mounting on compatible surfaces. The package includes universal brackets and a wiring pigtail to facilitate straightforward setup.
_x000D_Warranty. Backed by a limited lifetime warranty, this LED light bar ensures lasting reliability against manufacturing defects and performance issues.
_x000D_Application. Fits universal applications, though some adaptation may be necessary.
