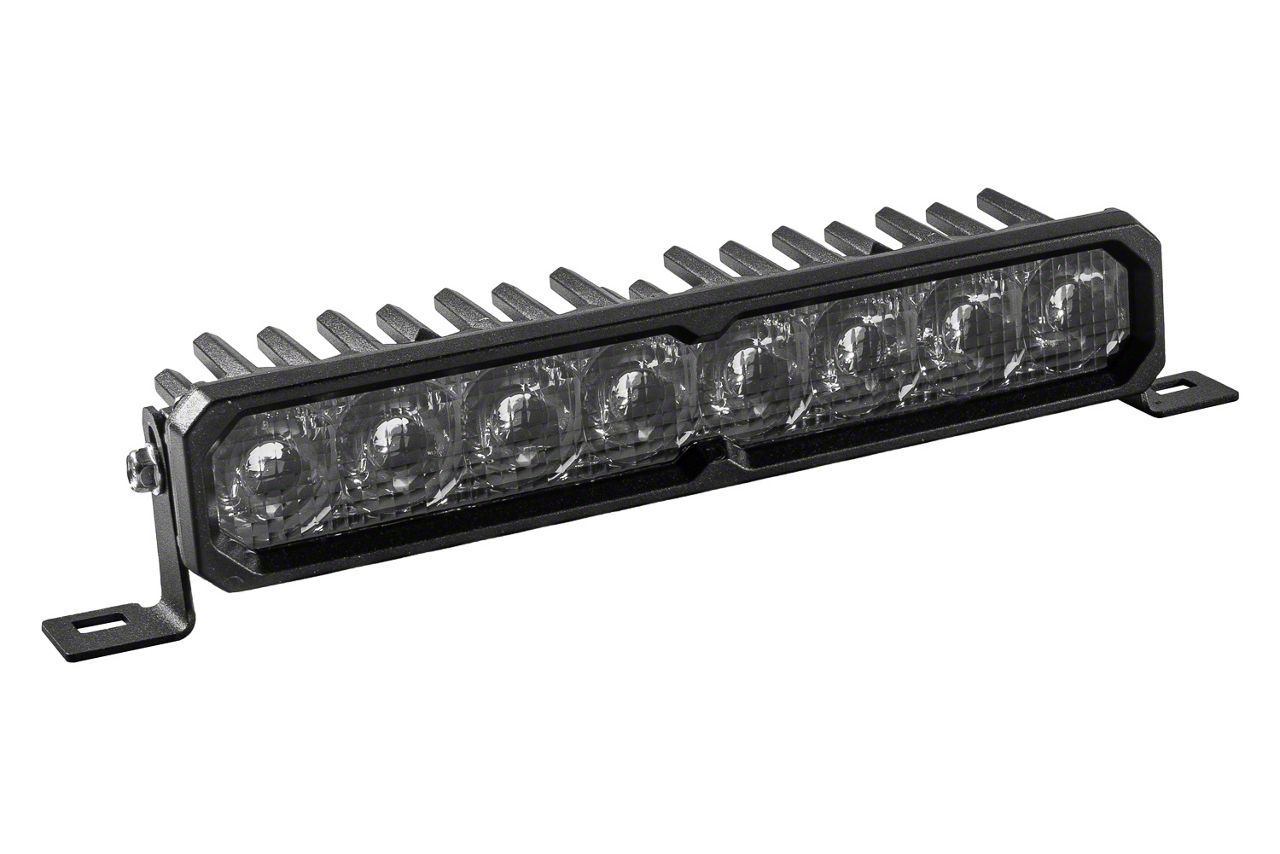

Diode Dynamics SS10 Max Single Row LED Light Bar with Amber Backlight; White Driving (Universal; Some Adaptation May Be Required)
Item TU69228
Our Price
$449.95
Military, Medical & First Responders
$22.50 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- Modern Welcome Sequence And Selectable Backlight With SmartSelect Technology _x000D_
- Available In Sport, Pro, And Max Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For Extreme Conditions With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Globally Sourced Materials _x000D_
- Fully Illuminated Backlight With 8 Color Options On SmartSelect Models _x000D_
- Three Power Levels: Sport (40W), Pro (51.5W), Max (61W) _x000D_
- Beam Patterns Include Combo/Driving, SAE Driving, Flood, And Spot _x000D_
- Operating Voltage Range 9-30V With Polarity Specific Design _x000D_
- Operating Temperature Range -40°C To 85°C (-40°F To 185°F) _x000D_
- LED Emitters Include Osram Boost HX, Osram Ostar Projection Compact, And Lumileds Automotive Grade LEDs _x000D_
- Connectors Use Deutsch DT Input _x000D_
- Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets _x000D_
- Passive Cooling Via Heatsink _x000D_
- Product Dimensions 2.01x10.24x2.37 Inches _x000D_
- Includes One LED Light Bar, One Wire Pigtail, And Universal Bracket Set _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 10 to 19 Inch |
Description
Performance Lighting. The Diode Dynamics SS10 Max Single Row LED Light Bar with Amber Backlight; White Driving is engineered to deliver superior lighting performance for off-road, auxiliary driving, and worksite illumination. It utilizes advanced TIR optics and high-power LEDs to provide intense, focused light output that enhances visibility and safety.
_x000D__x000D_Construction and Appearance. This light bar features a rugged aluminum housing with a durable ASTM-standard powdercoat finish for corrosion resistance and longevity. The patented TIR optics are protected behind a polycarbonate lens in a fully encapsulated design, built to withstand harsh environmental conditions including high-pressure water exposure (IP69K rated).
_x000D__x000D_Installation. Installation is straightforward and user-friendly, requiring basic tools and no complex modifications. The universal mounting brackets allow for flexible attachment on a wide range of vehicles. No drilling is typically necessary, making it an accessible upgrade for most applications.
_x000D__x000D_Warranty. This product includes a limited lifetime warranty, providing long-term reliability and support.
_x000D__x000D_Application. Designed with universal fitment in mind; some adaptation may be necessary for specific vehicle installations. This flexibility ensures broad compatibility across automotive setups.
Diode Dynamics DD8204
