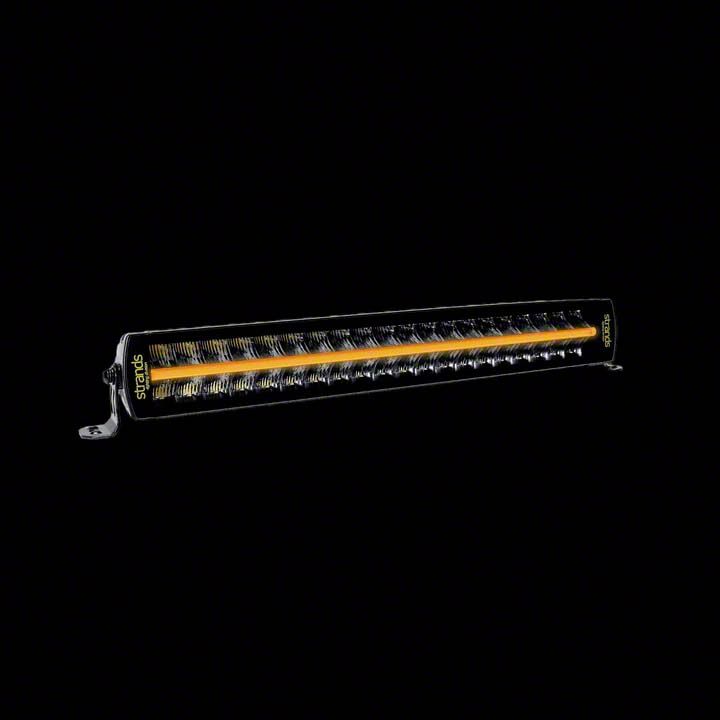

Strands Lighting 22-Inch Siberia Outlaw UDX LED Light Bar (Universal; Some Adaptation May Be Required)

Name: Strands Lighting 22-Inch Siberia Outlaw UDX LED Light Bar (Universal; Some Adaptation May Be Required)
Brand: Strands Lighting
SKU: TU45322
Price: 959.00 USD
Availability: OutOfStock

Item TU45322

1 Reviews of Strands Lighting

Our Price

-0% $959.00 Was $959.00

Military, Medical & First Responders $47.95 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.

Add to Cart

Save for later

Create a list

Name your new list Add to New List

Saved - View your saved items

We're sorry. We couldn't save this product at this time.

or use

Shop Owners Save More! Sign up for our dealer program

Join For FREE

Product Information

Features, Description, Q&A

Features & Specs

12 LEDs for 8-Inch Version and 40 LEDs for 22-Inch Version
Operating Voltage: 10–32 V DC
Theoretical Power: 120 Watts at 12V for 8-Inch and 400 Watts at 12V for 22-Inch
Power Consumption: 31.7 Watts in E-Approved Mode and 66.3 Watts in Experience Mode for 8-Inch
Power Consumption: 102 Watts in E-Approved Mode and 215 Watts in Experience Mode for 22-Inch
Theoretical Lumen Output: 7,167 for 8-Inch and 48,000 for 22-Inch
Actual Lumen Output Range: 2,788 to 5,758 for 8-Inch
Actual Lumen Output Range: 10,889 to 22,900 for 22-Inch
1 Lux Distance: 327 Meters in E-Approved Mode and 464 Meters in Experience Mode for 8-Inch
1 Lux Distance: 312 Meters in E-Approved Mode and 470 Meters in Experience Mode for 22-Inch
Color Temperature: 6500K
IP Rating: IP67/IP69K
Black Housing Color
Clear Lens Color
White LED Color
Combo Beam Pattern
Position Light Included with White and Amber Options
Connection: DT4 for 8-Inch and Cable Connection for 22-Inch
Cable Length: 500 mm for 8-Inch and 1500 mm for 22-Inch
Brackets Made of Stainless Steel (Side) and Aluminum (Bottom)
Housing Made of Aluminum
Polycarbonate Lens Material
Dimensions: 205 x 71.6 x 76 mm for 8-Inch, 562 x 71.6 x 76 mm for 22-Inch
Height Including Bracket: 89 mm
Operating Temperature Range: -30°C to +65°C
E-Approved and Meets ECE R148, R149 Regulations
EMC Certified Under ECE R10
Fits Universal; Some Adaptation May Be Required

Brand

Strands Lighting

Light Bar Width

20 to 29 Inch

Description

Powerful Lighting Performance. The Strands Lighting 22-Inch Siberia Outlaw UDX LED Light Bar offers high-quality illumination with dual lighting modes designed to optimize visibility and safety. It provides drivers the flexibility to switch between a high-intensity experience mode and a street-legal E-approved mode, enhancing driving conditions in various environments.

Construction and Appearance. Built with a durable aluminum housing and clear polycarbonate lenses, this light bar is designed for resilience and clarity. It features a black finish and robust brackets crafted from stainless steel and aluminum, combined with energy-efficient white LEDs and a protective UV coating for extended service life.

Installation. Hardwire installation is required, and no wiring harness is included. Moderate wiring experience is recommended, as drilling may be necessary depending on the mounting location and vehicle configuration.

Application. This light bar is designed for universal fitment; however, some adaptation may be necessary to accommodate different vehicles and mounting setups.
