Installation Time
(approx) 3 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

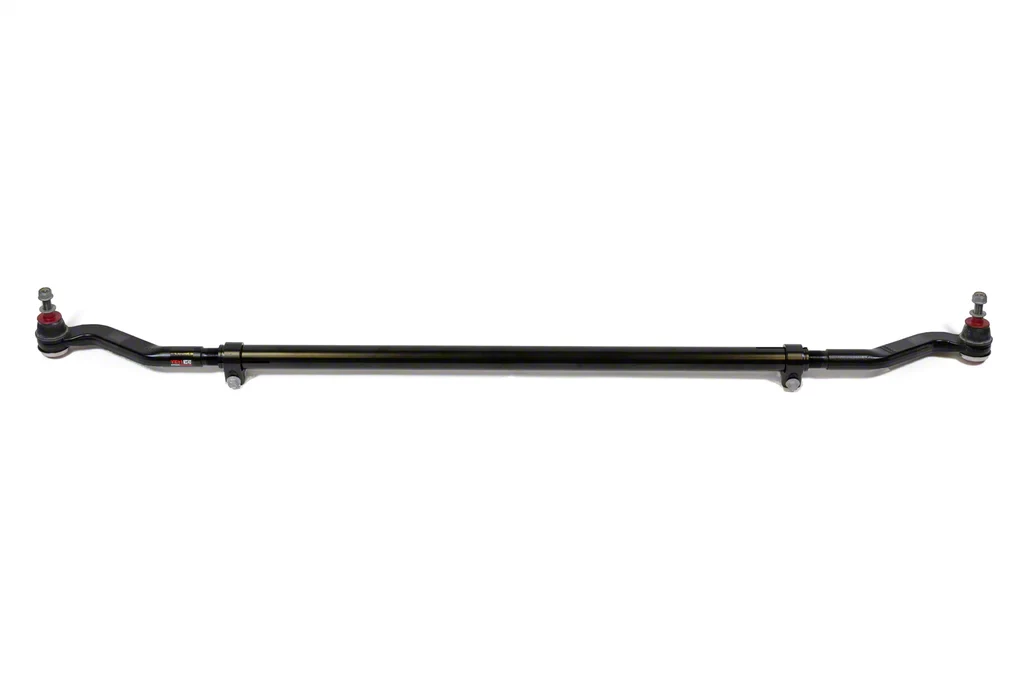

Steer Smarts YETI XD Tie Rod Assembly (20-26 Jeep Gladiator JT, Excluding Launch Edition, Mojave & Rubicon)Find parts that fit my vehicle
Item JG23761
Our Price
$495.00 kit
Military, Medical & First Responders
$24.75 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Save with Open Box
From $148.50
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Frequently Bought Together
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- Direct Bolt-On Installation Requires 1 5/8" Diameter Damper Bracket And Stabilizer Relocation Bracket (Not Included)
- May Require Drilling One Hole For Proper Bracket Installation
- Engineered For Proper Clearance To Chassis Components To Prevent Interferences
- Manufactured In The USA
- 30mm 2 1/2 Ton Ball Joints Made From Cold-Headed Medium Carbon Alloy Steel Provide High Impact Toughness
- Induction Heat-Treated Ball Studs Ensure Superior Fatigue Strength And Off-Road Durability
- Steel-On-Steel Bearings Offer Exceptional Wear Resistance
- High Quality Seals Minimize Grease Leakage Extending Ball Joint Life
- Fully Greaseable For Easy Maintenance
- Tie Rod Ends Are Powder Coated Over E-Coated Surface For Durability Under Harsh Conditions
- Forged Medium Carbon High Hardenability Steel Tie Rod Ends Are Heat Treated For Increased Strength
- Large 1 1/4 Inch Rolled Threads Improve Strength Compared To OEM Threads
- Reverse Pin Technology Prevents Linkage Movement Within The Socket
- Adjuster Sleeve Manufactured From 1-5/8" Diameter 1/4 Inch Thick High Strength 4130 Chromoly Steel Tubing
- Adjuster Clamps Provide Proper Clamp Force Without Risk Of Loosening
- Right-Hand And Left-Hand Threads Enable Quick Adjustment
- Internal Threads And Tubes Are E-Coated For Long-Term Durability
- Approximately 1 Hour Installation Time
- Moderate Mechanical Skill Required
- Requires Basic Hand Tools And A Torque Wrench
- Fits 20-26 Jeep Gladiator JT, Excluding Launch Edition, Mojave & Rubicon
Description
Extreme Steering Upgrade. It improves steering performance and reliability, especially in off-road conditions, by providing a rugged bolt-on upgrade that addresses common stock tie rod weaknesses.
Construction and Appearance. Made in the USA, this assembly features forged, heat-treated medium carbon steel components, including large 30mm ball joints with steel-on-steel bearings and premium seals for long life. The assembly is finished with a powder coat over an e-coat layer for excellent corrosion resistance. The adjuster sleeve is constructed from 1-5/8" diameter, 1/4" thick high strength 4130 chromoly steel tubing for superior durability.
Installation. Installation is a direct bolt-on with an approximate time of one hour. Moderate mechanical skill is required, along with basic hand tools and a torque wrench. While no vehicle modification is needed, installation requires a 1 5/8" diameter damper bracket and a stabilizer relocation bracket, which are not included. Drilling one hole may be necessary for proper bracket installation.
Application. Designed specifically for 20-26 Jeep Gladiator JT models, excluding the Launch Edition, Mojave, and Rubicon variants, ensuring compatibility with standard axle widths and configurations.
Steer Smarts 78076001
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Tie Rod Assembly
Tech Specs
4.8
Customer Reviews (32)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Gladiator
- 3.0L V6 EcoDiesel - 21, 22, 23
- 3.6L V6 - 20, 21, 22, 23, 24, 25, 26
