Find Light Switches, Wiring & Accessories for your Tundra

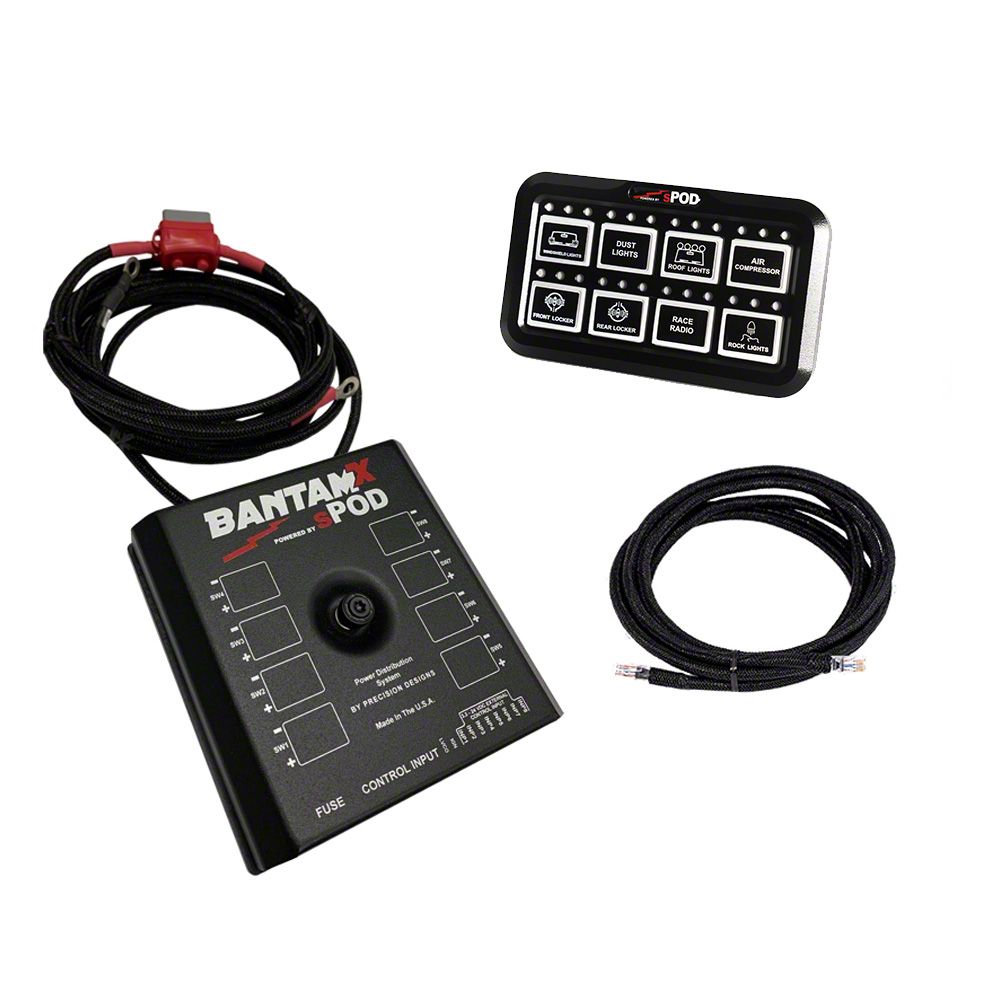

sPOD BantamX HD with 36-Inch Battery Cables (Universal; Some Adaptation May Be Required)
Item TU36938
Our Price
$1,006.50
Military, Medical & First Responders
$50.33 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- Compact 8-Circuit Expandable Control System Providing Clean, Safe Power and Control of 12/24VDC Accessories _x000D_
- Fully Programmable, Digital Controlled System With Integrated Bluetooth Capabilities for Remote Configuration _x000D_
- Eight Circuits Rated at 30 Amps at 12.5 VDC Per Circuit Using Current-Sensing MOSFETs Controlled by Microprocessor _x000D_
- 16-Position Terminal Block for Easy and Organized Accessory Attachment _x000D_
- Two Controller Ports (RJ45) Allow Expansion Up to 32 Channels _x000D_
- Integrated Low Voltage Cutoff Battery Protection with Optional Override _x000D_
- One ATM Mini-Style Fuse for LVCO Protection & Reset, plus 100 Amp In-Line Fuse Included for Battery Protection _x000D_
- Failsafe Self-Healing Fault Protection System Operating Between 1.5 to 30 Amps _x000D_
- Nylon Braided Battery Cables Made from High-Strand Crosslinked Copper with Durable Silicone Jacket _x000D_
- Compatible With Both 12VDC and 24VDC Power Systems _x000D_
- Eight-Position Input Terminal Block for Controlling Outputs _x000D_
- Ignition Control and Safety Lock-Out Feature for Switches One and Two (Optional) _x000D_
- On-Demand Wireless Software Updates and Upgrades Available via Bluetooth _x000D_
- HD Control Panel Constructed From Aluminum Billet Machined Housing with Silicone Tactile Buttons and RGB Backlit Switches _x000D_
- Rugged Panel Designed to Withstand Harsh Environmental Conditions with Compact Size and Multiple Mounting Options _x000D_
- HD Control Panel Connects via RJ45 Ethernet Cable up to 25 Feet from Source and Features Bluetooth LE for Programming _x000D_
- Universal 90 Degree Mounting Bracket Available as an Accessory _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
Advanced Power Management. The sPOD BantamX HD with 36-Inch Battery Cables is a compact and versatile 8-circuit control system designed to simplify wiring and control of 12/24V automotive accessories. It enables users to efficiently manage multiple electrical components through a single Ethernet connection to the cab, significantly reducing installation time and complexity. This system is essential for maintaining clean, safe, and programmable accessory power distribution in vehicles.
_x000D_Construction and Appearance. The BantamX HD features a powder-coated steel base with a weatherproof silicone gasket and a sleek aluminum lid secured with thumb screws, providing durability and protection in harsh environments. The included control panel is housed in a black powder-coated aluminum billet enclosure with tactile silicone buttons, RGB backlighting, and a compact design engineered to withstand demanding automotive conditions.
_x000D_Installation. Installation is straightforward, requiring no cutting or tapping into vehicle wiring, making the system accessible to most automotive enthusiasts. The unit mounts easily using included hardware, and the design eliminates complicated wire routing into the cab.
_x000D_Application. Fits universal; some adaptation may be required.
sPOD BXHDUNI36
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
