      Features

      • Small, 8-Circuit, Expandable Control System.
      • Provides Clean One Ethernet Cable Into The Cab For Power And Control.
      • Fully Programmable Digital Controlled System.
      • Eight Circuits Rated At 30 Amps At 12.5 VDC Per Circuit.
      • 16-Position Terminal Block For Easy Attachment Of Accessories.
      • Two Controller Ports (RJ45) For Ethernet Cables.
      • Integrated Low Voltage Cutoff Battery Protection With Optional Override.
      • One ATM Mini-Style Fuse For Low Voltage Cutoff Protection And Reset.
      • Fail-Safe Self-Healing Fault Protection System From 1.5 To 30 Amps.
      • Current-Sensing MOSFETs Controlled By A Microprocessor, Eliminating Fuses And Relays.
      • 100 Amp Inline Fuse Included.
      • Nylon Braided Battery Cables Made Of Hi-Strand Crosslinked Copper Wire With Silicone Jacket.
      • Operates On 12VDC Or 24VDC.
      • Eight-Position Input Terminal Block For Controlling Outputs.
      • Built-In Bluetooth Capabilities For Remote Control.
      • Protected Against Overheating, Over-Current, Shorts, Reverse Polarity, And Field Collapse.
      • Ignition Control And Safety Lock-Out For Switches 1 And 2 (Optional).
      • Up To Four BantamX Units Can Be Daisy Chained And Controlled By One Touchscreen.
      • On-Demand Wireless Software Updates And Upgrades.
      • Switch Panel With Eight Dual Lit LED Amber Switches, Installed And Pre-Wired.
      • Wires Wrapped In High-Temperature Abrasion Resistant Nylon Braided Sleeving.
      • Comes With 10 Foot CAT-6 Ethernet Cable, Extendable Up To 25 Feet From BantamX.
      • Aluminum Panels Are Formed, Welded, And Powder Coated.
      • Carling Technologies Contura Switches Certified To IP66/68 For Marine And Harsh Environment Use.
      • Controlled Lower Pilot Light (Push Button).
      • Custom Laser-Etched Rockers Are Available.
      • Ability To Daisy Chain Panels For Remote Operations Such As Panel In Cab And Panel At Rear Of Truck.
      • Auto Safe System Shutdown When Panel Is Unplugged.
      • Can Run In Conjunction With Another 8-Switch Panel, HD & Touchscreen.
      • Fits 07-08 Jeep Wrangler JK.

      Description

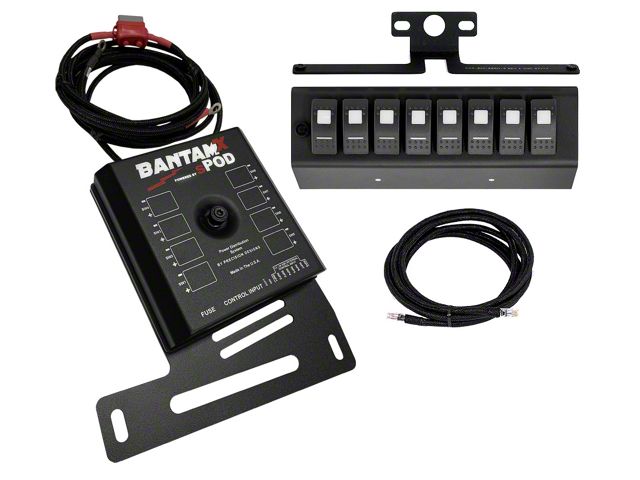

      Advanced Power Management. The sPOD BantamX with LED Switch Panel; Amber is an expandable 8-circuit control system that offers a streamlined and efficient way to manage your vehicle’s aftermarket accessories. It simplifies wiring by using a single ethernet cable into the cab, reducing installation time and eliminating the need for cutting or tapping into the vehicle’s original electrical system. This system provides precise control and protection for 12/24VDC accessories, making it ideal for enthusiasts looking for a clean and reliable power distribution solution.

      Construction and Appearance. The system is built on a powder-coated steel base with an aluminum lid, ensuring durability and a weatherproof seal with a silicone gasket. The switch panel features formed, welded, and powder-coated aluminum panels with amber dual-lit LED Carling Technologies Contura switches, certified to withstand marine and harsh environments. Wiring is protected with high-temp abrasion-resistant nylon braided sleeving, combining robust construction with a sleek, professional look.

      Installation. Installation is straightforward with vehicle-specific mounting options, requiring no cutting or fishing wires into the cab. The unit includes a 10-foot CAT-6 Ethernet cable, extendable up to 25 feet, facilitating flexible placement options for ease of use and integration.

      Application. Designed specifically to fit the 07-08 Jeep Wrangler JK, ensuring perfect compatibility and integration with this vehicle model without modifications.

      sPOD 870050
