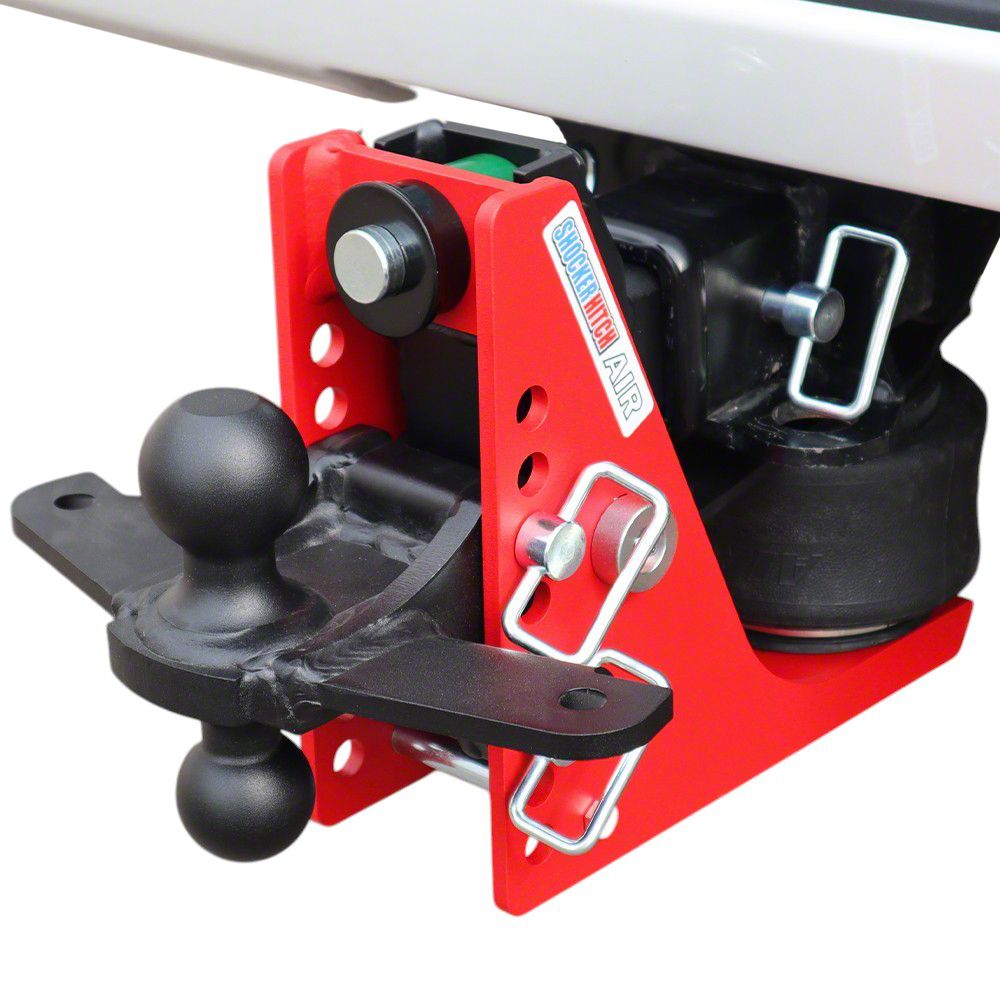

Shocker Hitch 14K Air Ride Hitch and Black Combo Sway Bar Tab Ball Mount for 2.50-Inch Receiver Hitch; 0.50 to 4.50-Inch Drop (Universal; Some Adaptation May Be Required)

Item U56556-XT
Product Image
Our Price

$739.99

Military, Medical & First Responders $37.00 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • Smoother safer towing every mile with built-in air ride system to cushion ride and absorb road shock.
      • Adjustable sway bar tab combo ball for mounting sway bars.
      • Saves money and reduces damage to trailer and cargo by cushioning the ride.
      • Improves safety and provides comfort during towing.
      • Rated for 14,000 pounds gross trailer weight capacity with heavy-duty 5/16-inch thick side plates and eight adjustment holes.
      • Optimizable for tow weight by adjusting air pressure.
      • Includes complete air receiver hitch with built-in air ride system, dual bump cushions, adjustable combo ball mount with sway bar mount tabs, and three D-handle 5/8-inch diameter ball mount attachment pins with clips.
      • Over 20 mount attachment options including combo, drop, raised, sway bar tab options, pintle, drawbar, clevis pin, and more.
      • Shock dampening action via rocker arm pivot design eliminating need for slides, parallel linkages, rollers, or multiple air bags.
      • Safety red powder coat finish on base frame.
      • Two hole receiver shank available for 2-inch or 2-1/2-inch receiver hitch tubes.
      • Great fit for full-size pickup trucks, vans, midsize pickups, and select SUVs with receiver under bumper.
      • Combo ball mount tow rating: 2-5/16-inch ball rated at 20,000 pounds, 2-inch ball rated at 10,000 pounds.
      • Not compatible with weight-distribution hitch systems.
      • The air ride system sits under receiver tube allowing a 10-inch distance between mounting pin and ball center.
      • Easy to use air tank valve system located on side for quick adjustments.
      • Suggested one sway control kit for towing under 10,000 pounds and two kits for over 10,000 pounds.
      • Maximum air pressure limited to 100 PSI to avoid damage to air bag.
      • Pivot bolt made from 1-inch diameter 1045 medium carbon steel with heat treatment and grease passage for maintenance.
      • Greasing recommended every few months to protect pivot bolt and prevent water and dirt ingress.
      • Dual urethane bump cushions provide maximum performance and ride comfort.
      • Fits universal; some adaptation may be required.

      Description

      Innovative Air Ride Hitch. The Shocker Hitch 14K Air Ride Hitch and Black Combo Sway Bar Tab Ball Mount for 2.50-inch Receiver Hitch; 0.50 to 4.50-inch Drop offers a smooth and safer towing experience by cushioning road shock and absorbing bumps with its built-in air ride system. Used between a pickup and trailer, it reduces jerks, tugs, and sway for enhanced control and comfort, especially on rough or uneven roads.

      Construction and Appearance. This receiver hitch is constructed from heavy-duty carbon steel with 5/16-inch thick side plates and a top plate. It features a rocker arm pivot design with a robust 1-inch diameter heat-treated carbon steel pivot bolt fitted with a grease zerk for maintenance. The base frame has a safety red powder-coat finish to provide impact resistance and durability.

      Installation. Installation is moderately straightforward with no drilling required, fitting standard 2 or 2-1/2-inch receiver tubes and secured by hitch pins included in the kit. The air bag must be compressed during installation to fit properly, and air pressure is adjusted using the accessible side-mounted valve.

      Warranty. This product is backed by a manufacturer's warranty and a 60-day satisfaction guarantee, ensuring quality and customer confidence.

      Application. Fits universal; some adaptation may be required. It is designed for use with pickup trucks, vans, midsize pickups, and select SUVs with the receiver mounted under the bumper. Not compatible with weight-distribution hitch systems.

      Shocker Hitch SH-620-250BLK-SC
