Rock Krawler 4.50-Inch X-Factor Suspension Lift Kit with RRD 2.25-Inch IFP Shocks (18-26 Jeep Wrangler JL 2-Door)Find parts that fit my vehicle

Rock Krawler 4.5" X-Factor Mid-Arm Suspension System for Jeep Wrangler JL (Gas Models)
The Rock Krawler 4.5" X-Factor Mid-Arm System is specifically designed for Sport and Sahara owners who want a complete system, bolt-in installation, and the best articulation of any MID-ARM kit on the market. Our system proves its durability and off-road performance every time you hit the streets or trail! Our industry leading, X-Factor Series, adjustable upper and lower control arms offer a total of 95 degrees of misalignment when paired with our Pro-X Krawler Joints and Adventure Series joints. The inherent bind in a factory JL control arm is greatly reduced. Our maintenance free "Adventure Series" joints are found in your front and rear control arms at the frame connection, while our "PRO Krawler Joints" tie in your axle connections. With so much adjustability, it allows you to precision tune the JL's caster and pinion angle front and rear.
Driving you home with the most comfortable ride possible in a Wrangler, are our TRIPLE-RATE coils. All 4 coils work together to achieve excellent on-road comfort that we feel is better than the OEM linear rate springs. The coil itself is built with the proper "Free-length" for off-road articulation and stays firmly seated in the coil bucket (as long as a proper length shock is installed), and overall has a very controlled reaction to bumps, rocks, sand, mud and whatever else you can manage to throw at them! All Rock Krawler JL systems include correction pads that reduce the spring bow inherent in the factory set up. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on road handling. When we design a system, our goal is to provide you with the most comprehensive solution and the best geometry, install exceptional value, and be the foundation for every adventure whether it be on the Street, In tow, or down a Trail! Thank you for considering Rock Krawler Suspension.

System Benefits:
Complete Bolt in System
Excellent Highway Ride and Handling
The Best Off-road Ability of All Mid-Arm Systems
Improved Rear Roll Center
Tuned Triple-Rate Coils
Spring Correction Seats
Vehicle Lean Correction
Upgradable to RK Long-Arm System
Best Technical Support in the Industry
Jeep Remains Level on All 4 Corners
Lifetime Warranty Coverage

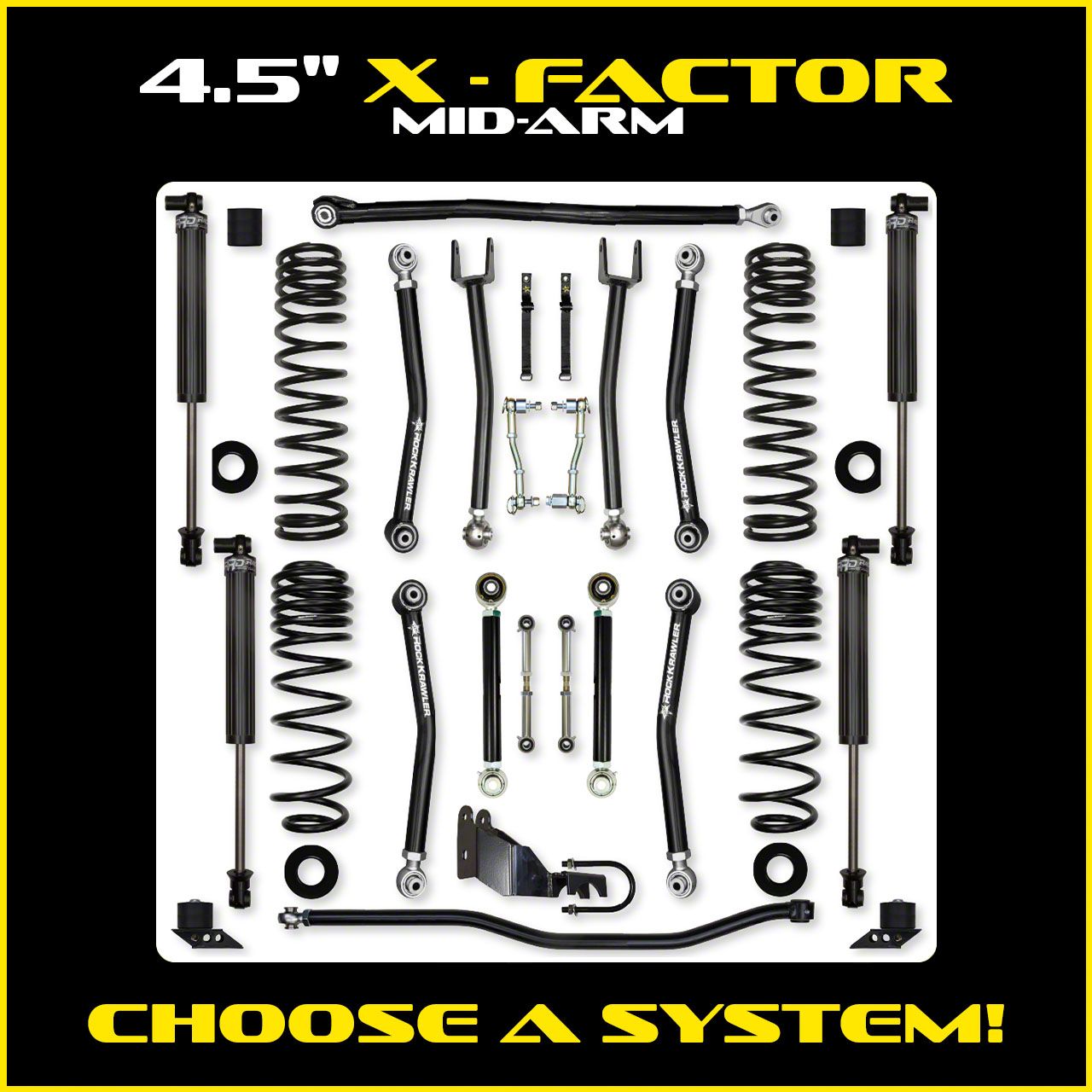

System Includes:
(4) Triple-Rate Coil Springs
(2) Front High Clearance Adjustable Lower Control Arms
(2) Front High Clearance Adjustable Upper Control Arms
(2) Front Spring Pads
(1) Adjustable Front Track Bar
(2) Gen-II Sway Bar Links
(2) Rear High Clearance Adjustable Lower Control Arms
(2) Rear High Clearance Adjustable Upper Control Arms
(2) Rear Spring Pads
(2) Adjustable Rear Sway Bar Links
(1) Bolt-on Rear Track bar Relocation Bracket
(1) Rear Adjustable Track Bar
(DEPENDING ON SHOCK PACKAGE CHOSEN)
Bump Stops Are Included with All Shock Options
IF YOU CHOOSE NO SHOCKS - BUMPSTOPS CAN BE PURCHASED SEPARATELY - RK07124

Shock Information:
All RRD Shocks and Coilovers are Designed and Built in-house
Generic Front Shock Length – 18.31” Collapsed/ 30.31” Maximum Extended
Generic Rear Shock Length – 19” Collapsed/ 31” Maximum Extended
Bilstein 5100 Shocks
A Great Pairing with Our Multi-rate Coil Springs
Maintenance Free
RRD 2.25" IFP Shocks
2.25” O.D. Military Grade Hard Anodized Fluted Aluminum Shock Body
Cooling Surface Area of a 2.5” Shock
3/4” 17-4 PH Stainless Steel, Hard Chrome Plated and Polished Shaft
Billet Aluminum Valve Circuit and Components
Dual DU Shaft Bearings and Double Redundant Sealing Methods
Built in-house
Serviceable/Rebuildable/Revalveable
More Info

Wheel Fitment:
Sport and Sahara Wheel Fitment Recommendations
37”/38” Tall Tires - Recommend 3.5” of Back Spacing
Rubicon Fitment Recommendations
37” Tall Tires – Recommend 4.5” of Back Spacing
40” Tall Tires – Recommend 3.5” of Back Spacing

Tire Fitment:
Sport and Sahara with Full OEM Fenders
37” Tall Tires (3” Bump Stop Height Recommended)
Sport and Sahara with Trimmed or High Lined OEM Fenders
38” Tall Tires (3” Bump Stop Height Recommended)
Rubicon Full OEM Fenders
37”/38” Tall Tires (3” Bump Stop Height Recommended)
Rubicon OEM Fenders with Trimmed or High Lined
40” Tall Tires (3” Bump Stop Height Recommended)

General Notes:
All lift heights based on Rubicon models for standard style build (i.e. front bumper and winch, rear bumper and full size spare).
If building with a spare delete we recommend dropping 1” in coil lift height for the rear.
If building an "overland style" or heavily up-fitted build in the back, we recommend upsizing 1” in coil lift height for the rear.
We recommend a new front driveshaft if you plan to off-road routinely. (Adam's Driveshaft, Tom Woods, J.E. Reel)
We recommend welding the rear cradle for use with 37" tires and above.
