Paul Horton's Welder Series Right Height Vehicle Set-Up Tool

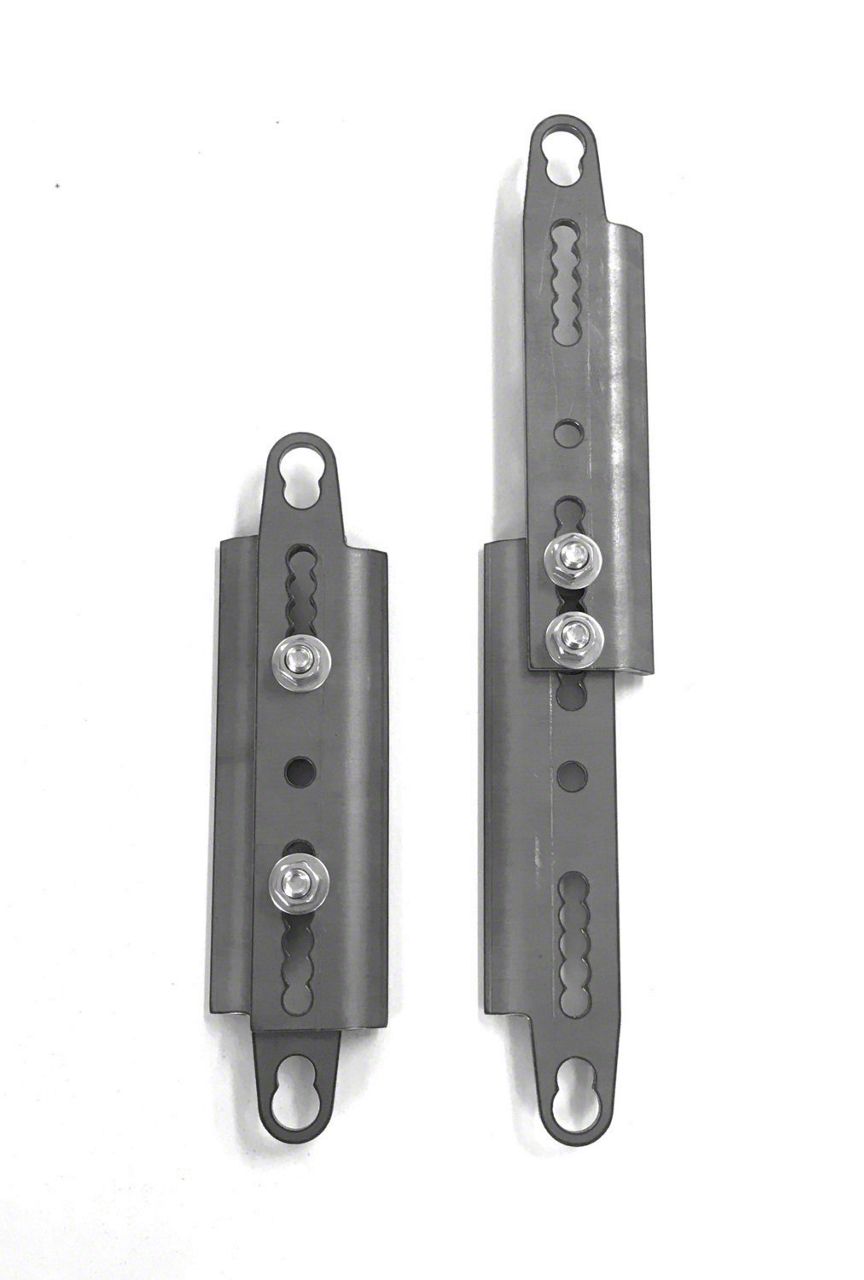

This Coil-Over / ShockWave setup kit is designed to facilitate precise chassis construction by allowing you to configure your vehicle at ride height and observe the full range of motion of the shock, from fully compressed to fully extended. The price includes a pair of fixtures, enabling setup for two coil-overs.The kit is compatible with both 1/2” and 5/8” upper and lower mounting bolts. For 1/2” bolts, mounting center distances can be adjusted between 7-7/8” and 12-3/4” in 3/8" increments using the standard kit, or extended to 19-1/8” with the optional extension add-on. For 5/8” bolts, center distances range from 8-3/4” to 13-5/8” (in 3/8" increments) with the standard kit, and up to 20” with the extension add-on.The Spring Setup T provides an approximate reference for the outer diameter of the coil spring. By using elastic bands or string in the notches, you can simulate the spring’s outer boundary to ensure proper clearance during assembly.Installation tips: Always use two bolts to securely fasten any two components, ensuring that flat washers are placed beneath both the bolt head and nut. Avoid overlapping adjacent washers to maintain proper fitment. When attaching the Spring Setup T, washers are not required.This kit ensures accurate suspension geometry setup, critical for achieving proper suspension travel and ride height.
