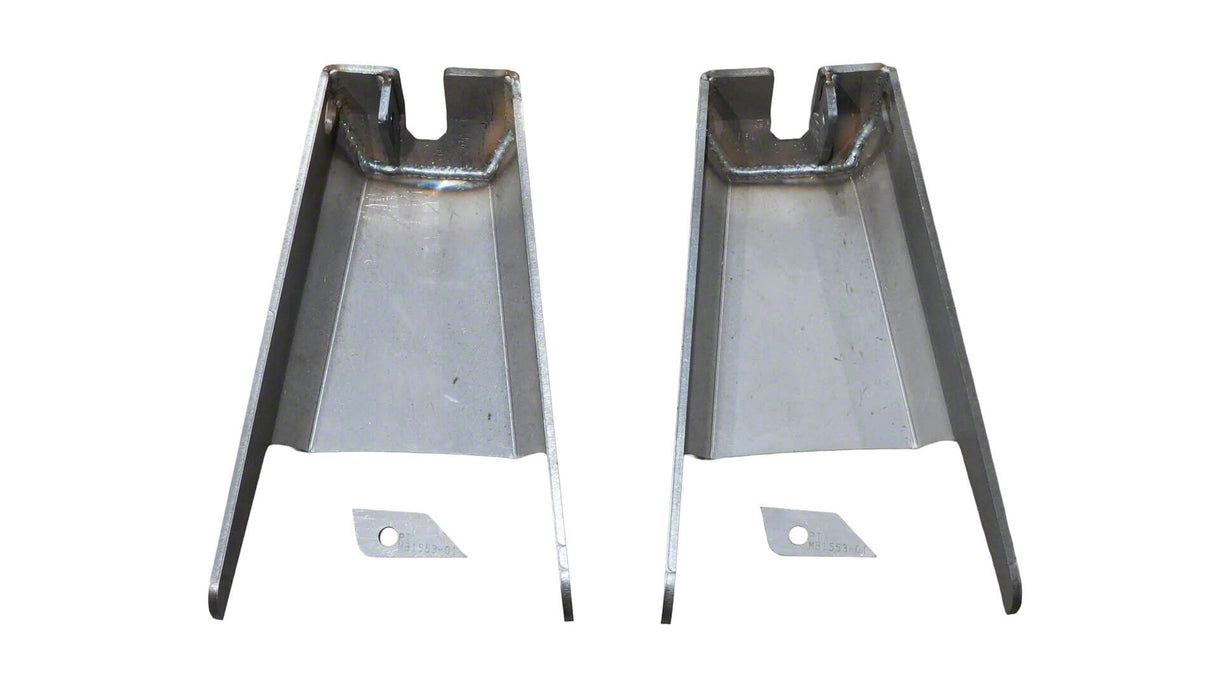

Motobilt Front Coil-Over Mounts (07-18 Jeep Wrangler JK)Find parts that fit my vehicle

You feel it when the front suspension cycles without fighting the engine bay. The shock stands where it should. Travel is usable. Nothing is being forced around factory buckets that no longer belong there.

Once the JK moves past factory springs and short shocks, the stock front shock and spring buckets become the limit. Proper coilover placement requires height, clearance, and structure in the right place. These towers exist to replace the factory buckets and give the front suspension a layout that actually supports longer travel.

With the factory shock and spring buckets removed, the MB1553 towers allow the coilover to mount cleanly above the axle. When the lower shock tab is placed on top of the axle, the towers support a 12 inch coilover. When paired with MB2198, they support a 14 inch coilover. The result is controlled motion through the suspension cycle without interference from engine bay components or brake hardware.

Highlights:

• Front coilover shock towers for Jeep JK
• Designed for 12 inch coilovers with lower shock tab on top of axle
• Designed for 14 inch coilovers when used with MB2198
• Requires 69 inch or wider axle housing
• Compatible with standard built JK components including PSC big bore steering box and PSC steering pump pulley
• Eliminates factory shock and spring bucket
• Will work with ORI struts with a 1.5” mounting width
• Made in the USA
• Installation requires removal of the factory shock and spring bucket. No engine bay components need to be relocated. Only trimming of the plastic ribs on the factory trays is required. Axle width is critical. Factory width axles will place the shock too vertical or cause caliper contact. These towers are intended for experienced builders setting up long travel front suspension.

When the factory buckets come off and the shocks finally have room to work, the front of the JK stops being a limitation and starts supporting the suspension it was always headed toward.

Fits: 2008-2018 Jeep Wrangler JK/JKU

Specifications:

• Dimensions (H/W/D): 15.1" / 9.23" / 3.43"
• Weight: 19.6 lbs
