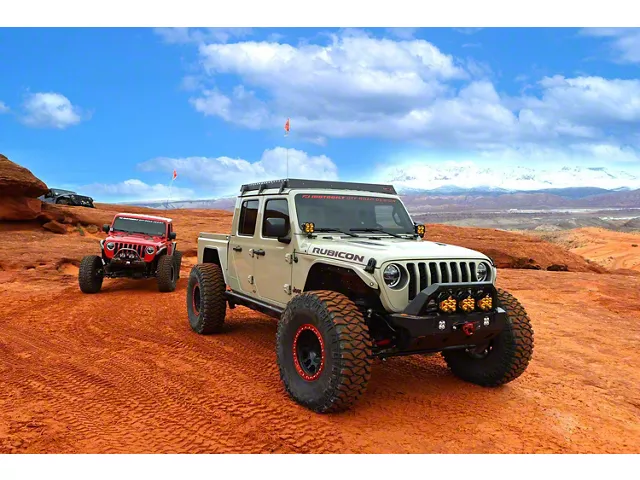

Motobilt Full Length Bed Replacement Kit; Raw (20-26 Jeep Gladiator JT)Find parts that fit my vehicle

Why would you want our Motobilt Full Length Replacement Bed for Jeep Gladiator? If you want to run up to 43 inch diameter tires, increase your departure angle, have built-in lockable storage compartments, have protected inset LED tail lights, have a heavy duty steel bumper with recovery points, reuse your factory park sensors, have heavy duty steel fender flares, have integrated rear lower corner armor, still be able to tow, have ample cargo space, easily bolt on tons of accessories, have your bed stronger than any other factory body panel AND be the coolest kid on the block, then this complete kit is for you!

Make your Gladiator that standout custom vehicle you've always dreamed of, while improving its off-road capability, durability and function.

What's Included:

• Complete Motobilt Full Length Bed Kit for Gladiator
• Two Sealed and Lockable Storage Compartments with hinged steel covers
• Tailgate Kit including latches, automotive grade lanyards, hinges and Aluminum license plate trim bezel
• Tail Light Mount Kit with Aluminum trim bezels
• Round LED pop in tail lights
• Resistors for factory non-LED tail lights
• 3/4 inch LED Side Marker Lights for those who need them
• Off-road Only License Plate Lights / Third Brake Light
• Relocation Parts for factory fuel filler neck
• Provisions for either Gas fuel fillers or Diesel fuel fillers with DEF fluid filler
• Bed Stiffeners
• Front Cargo Tie Down Points
• Backing Plate for front Motobilt logo cutout
• Rear Bumper with sensor provisions and backup camera mount
• Rear Bumper Frame Mounts
• Rear Fenders
• Block Off Plate for Gladiators not equipped with 120v bed plug
• Bolt-On Rear Lower Corner Armor
• All Hardware needed for assembly and install

Features:

• Bolt-on Installation (no welding required)
• Same length as factory bed
• Increased departure angle
• Heavy duty steel construction
• Fold down tailgate with automotive grade cables
• Rattle free adjustment latches with integrated rubber bumpers
• Two sealed and lockable storage compartments
• Recessed LED tail lights with reverse lights included
• Mount for rear facing accessory lights
• Recessed License Plate
• Rear Camera Mount
• Uses factory fuel filler neck and cap. No emissions concerns as the fuel system is not modified.
• Aluminum trim bezels around taillights and license plate for a custom look
• Rear Bed Stiffeners with tie down points
• Forward tie down points to secure your cargo
• Integrated Slots along top bed rail to bolt on accessories
• Larger wheel openings for large diameter tires
• Heavy duty bolt on fenders
• Heavy duty bolt on rear bumper
• Rear bumper integrates rear parking sensors
• Bolt on zip tie tabs to help arrange wiring
• Complete assembly / install instructions

Benifits:

• Less rear overhang of body and frame means you can tackle larger obstacles with substantially less risk of dragging the rear of the vehicle
• Fast and easy bolt on installation
• No modifications to the frame, fuel or emission systems (some tabs will be trimmed from the filler neck)
• Lockable storage
• Rear bumper park sensor compatible
• Rear camera is located from the tailgate mount inside the rear bumper which provides more protection and will allow you to run without the tailgate
• Recovery points in the rear bumper
• Protected tail lights
• Heavy duty steel construction to vastly reduce the chance of trail damage
• Bolts to factory frame mounts
• Easy wiring for LED and non LED Gladiators
• Accepts large diameter tires
• Reuses the factory 120v outlet in the bed
• Compatible with either Gas or Diesel engine vehicles

Specifications

• Weight (Bed) 600 lbs
• Weight (Fenders) 35 lbs
• Weight (Bumper and mounting brackets) 70 lbs
• Dimensions (Bed Exterior) 63.3 inch L x 64.5 inch W x 16.6 inch H
• Dimensions (Bed Interior) = 60.6 inch L x 40.6 inch W x 14.9 inch H
• Cargo Capacity of Bed = 21.5 cu ft
• Cargo Capacity of Storage Compartments = 2.0 cu ft each x 2 compartments

The kit ships to you disassembled and in raw steel form. You will need to paint and assemble the bed during the install process. You can either assemble it and then have it painted or you can have the parts painted individually and then assemble. We chose to assemble ours completely and then paint to reduce the chance of scratching the fresh paint when installing the new bed. We highly recommend the assemble and then paint method.

What's Not Included:

Tazer programmer to reprogram the factory computer to turn off lane assist sensors if factory equipped
Rear facing accessory lights (Example: Baja Designs Squadrons)
Kit is shipped bare metal and will need to be painted or powder coated to the color the installer chooses.

Note: This is NOT a permanent modification to your vehicle. Your vehicle can be returned to stock. This system is NOT compatible with optional factory tail light blind spot sensors. You can turn off the rear tail light blind spot features using a programmable Tazer. The rear bumper is compatible with the factory rear park assist sensors. Optional tow hitch MB1186 available.
