Maximus-3 Base Package Modular Tire Carrier; Textured Black (07-18 Jeep Wrangler JK)Find parts that fit my vehicle

OVERVIEW

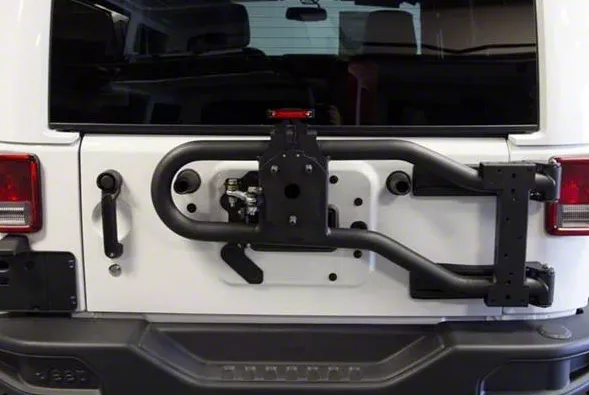

The Maximus-3 JK Tire Carrier is the strongest, smoothest, and most modular spare-tire holder on the market. The body-mounted tubular design provides a strong, rattle free, fluid one-handed swing operation. Highly adjustable to fit different wheel and tire combinations.
For extreme strength we offer an internal body-tub reinforcement brace to provide better load distribution for the factory mounting points. Rated to hold a 40” tire and accessories ** (**with optional body-tub reinforcement brace, necessary to safely run 37"+ tires)
Load-up your Maximus-3 JK Tire Carrier with a wide variety of optional mounting brackets for: Hi-Lift Jack, Shovel, RotopaX, NATO Cans, LED Work Light, Reverse Light, CB Antenna, Trail Flag, and more. Dozens of off-road and overland accessory combinations.
Engineered not fabricated.
INCLUDES:
Tubular Tire Carrier Arm
Heavy-Duty Hinges (x2)
Adjustable Receiver Stanchion
Tailgate Plate with Heim Joint
High-Grade Hardware & Install Guide
Technical Support
Lifetime Structural Warranty
1-year Powder Coat Warranty
Back-up Camera Bracket works with most factory/aftermarket wheels

KEY FEATURES & TECHNICAL SPECS
100% bolt-on installation. No cutting, drilling, or modifications
Versatile design to allow for different loading requirements and configurations
Articulating hinged design for synchronized opening and closing of the tailgate
Integrated pre-tension mechanism for rattle/vibration-free running.
Wide hinge bearing points for better stability and load distribution
Effortless door opening due to low friction self-lubricating bronze bearings
Holds 40” tires, but may interfere with bumper** (**requires optional body-tub reinforcement brace)
Height Adjustment for low center of weight and best field of view.
Adjustable tire mount for different tire/wheel combinations.
Hinge design is completely independent of the factory door hinge.
Spare tire rubber contacts the tube at multiple points for stability and even load distribution
Various optional accessories and mounts available

LOAD CAPACITY:
40" Tiers (180 lb maximum)
70 lb maximum for accessories on the side

MATERIAL: Heavy gauge steel – 2” OD tube
SURFACE FINISH: Black Textured Powder Coat
ADDED WEIGHT: ? Lb. (approx.)

MADE IN: USA
INSTALLATION
Estimated Installation Time: 5 Hours
Installation Difficulty Level: Moderate
