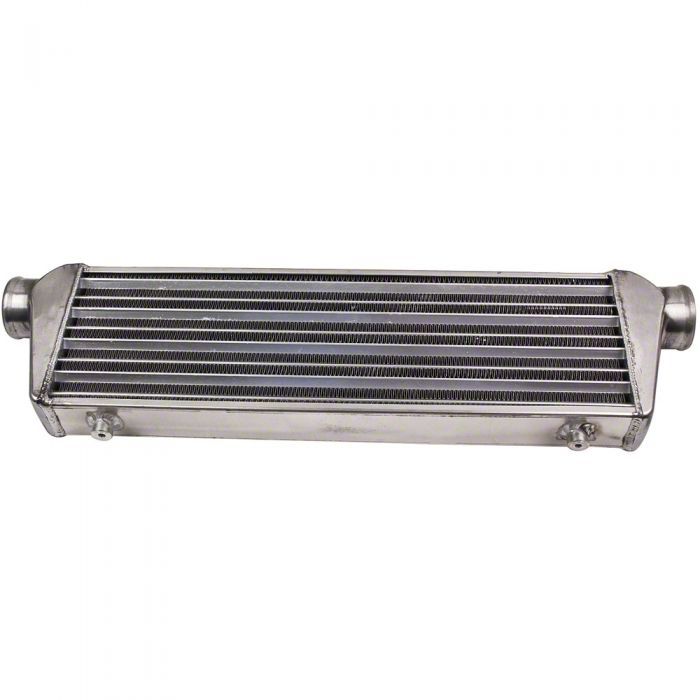

Front Mount Aluminum Intercooler; 27-Inch x 7-Inch x 2.50-Inch (Universal; Some Adaptation May Be Required)

Item J253195
Our Price

$139.99 each

Military, Medical & First Responders $7.00 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • Universal Intercooler Oversize 27 x 7 x 2.5 Inches OD Inlet/Outlet Tube and Fin
        • _x000D_
      • Condition: New
        • _x000D_
      • Inlet/Outlet Size: 2.5 Inches
        • _x000D_
      • Overall Size: 27 Inches x 7 Inches x 2.5 Inches (690mm x 175mm x 64mm)
        • _x000D_
      • Core Size: 21 Inches x 7 Inches x 2.25 Inches (550mm x 175mm x 57mm)
        • _x000D_
      • Compressed Air Flow Rate Under 350 Cubic Feet per Minute, Rated Up to 500 Max HP
        • _x000D_
      • Pressure Drop: 2 to 5 PSI at 35 PSI, 0.2 to 0.5 PSI at 15 PSI
        • _x000D_
      • Quantity: 1 Piece
        • _x000D_
      • Constructed with T6061 Aluminum and Precision TIG Welded
        • _x000D_
      • Tube and Fin Design
        • _x000D_
      • Lightweight Aluminum Construction
        • _x000D_
      • Extremely Strong One-Piece Cast Aluminum End Tanks
        • _x000D_
      • PSI Drop Under 0.2 (at specified conditions)
        • _x000D_
      • Max PSI: 30, Supporting Up to 400 HP
        • _x000D_
      • Warranty: 1 Year
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance Intercooler. The Front Mount Aluminum Intercooler measuring 27 inches x 7 inches x 2.50 inches is engineered to enhance engine efficiency by cooling compressed intake air in turbocharged or supercharged engines. Lower intake air temperature increases air density, which improves power output and overall engine performance.

      _x000D__x000D_

      Construction and Appearance. This intercooler features a tube and fin design crafted from lightweight T6061 aluminum for durability and efficient heat dissipation. The one-piece cast aluminum end tanks are precision TIG welded to ensure strength and reliability under high boost pressures. The finish presents the natural metallic texture typical of raw aluminum components.

      _x000D__x000D_

      Installation. Professional installation is recommended due to the universal fitment, which may require some adaptation such as drilling or modification depending on the vehicle's configuration and available mounting space.

      _x000D__x000D_

      Warranty. This product includes a one-year warranty against defects in materials and workmanship.

      _x000D__x000D_

      Application. Designed as a universal fit to accommodate a broad range of vehicles, some adaptation may be necessary for specific installations. Accurate measurements should be taken before installation to confirm compatibility.

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Aluminum Intercooler Unit
      • (2) Welded End Tanks
      • Instructional Manual
