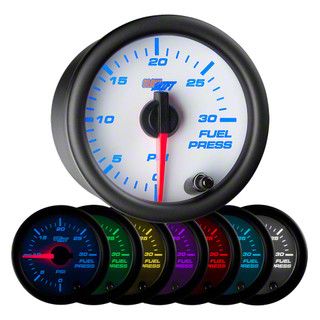

30 PSI Fuel Pressure Gauge; White 7 Color (Universal; Some Adaptation May Be Required)

Item JG34772
14 Reviews of similar
Our Price

$79.99

Military, Medical & First Responders $4.00 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • 2-1/16” Fuel Pressure Gauge With 30 PSI Range
        • _x000D_
      • 52mm Electronic Analog Fuel PSI Gauge
        • _x000D_
      • Includes 1/8-27 NPT Male Thread Electronic Fuel Pressure Sensor
        • _x000D_
      • 7 Color LED Backlighting With Selectable Solid Colors, Cycle Modes, And Color Memory Recall
        • _x000D_
      • Red Illuminated Analog Needle Powered By Stepper Motor Technology
        • _x000D_
      • Clear Flat Lens With White Gauge Dial
        • _x000D_
      • Includes 2’ Power Harness And 9’ Pressure Sensor Harness With Plug-And-Play Connectors (Optional Extended Harnesses Available)
        • _x000D_
      • U-Shaped Metal Mounting Bracket And Hardware Included For Secure Installation
        • _x000D_
      • Nighttime Dimming Mode Reduces Backlight Brightness By 30% When Headlights Are On
        • _x000D_
      • Installation Instructions And Online Support Available
        • _x000D_
      • Fits Universal Applications; Some Adaptation May Be Required Depending On Vehicle And Sensor Location
        • _x000D_

      Description

      Performance Monitoring. The 30 PSI Fuel Pressure Gauge with White 7 Color LED backlighting provides accurate, real-time monitoring of fuel pressure in diesel trucks and other low-pressure fuel systems. It protects fuel system components like fuel pumps and injectors by alerting the user if pressure falls below optimal levels, helping to preserve engine efficiency and horsepower.

      _x000D__x000D_

      Construction and Appearance. This gauge is built with a durable, compact design featuring a crisp white dial face protected by a clear flat lens and a red analog needle driven by advanced stepper motor technology for smooth, precise readings. The gauge includes seven selectable LED backlighting colors with solid and cycle modes, along with a memory recall function to maintain your chosen color.

      _x000D__x000D_

      Installation. Installation is straightforward with included mounting hardware, a 2’ power harness, and a 9’ pressure sensor harness supplied with plug-and-play connectors. The compact electronic sensor mounts directly to the fuel system, typically without the need for additional drilling, suitable for professional or experienced DIY installation.

      _x000D__x000D_

      Warranty. This product is backed by a one-year limited warranty.

      _x000D__x000D_

      Application. Designed for universal applications; some adaptations may be required based on specific vehicle configurations and sensor location.
