Fabtech 6-Inch Basic Suspension Lift Kit with Performance Shocks (07-15 5.7L Tundra Double Cab, CrewMax, Excluding TRD Pro)

Item TU1910
Call a Tundra Enthusiast at 1-877-870-8556
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Our Price

$2,814.79 (kit)

FREE Shipping + $99.00 Oversized Item Fee Market Price $3,292.99 You Save 15% ($478.20)

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Out of Stock

Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Fabtech 6-inch Suspension Lift Kit
      • Increases Ground Clearance for Improved Off-Roading
      • Performance Twin Tube Rear Shock Absorbers
      • Extended Ductile Iron Steering Knuckles
      • Front Strut Spacers and Rear Lift Blocks
      • High Arched Crossmember
      • Heavy Duty 1/4-inch Thick Differential Steel Skid Plate
      • Accommodates up to 35 x 12.5-inch Tires
      • Requires use of 18-inch or Larger Wheels
      • Fits 2007-2015 5.7L Automatic Tundra Double Cab and CrewMax; Excludes TRD Pro


      Six Inches of Lift. Off-roading can be rough for your Tundra's stock suspension, that's why you need a lift kit that was specifically designed to take on the great outdoors. Luckily, this Basic 6-inch Lift Kit from Fabtech has just what you need to help you drive over boulders, fallen logs, and other trail obstacles. With 6-inches of lift, this kit can accommodate tires up to 35 x 12.5 in size mounted on 18 or 20-inch wheels. This Fabtech 6-inch Basic Lift System features iron steering knuckles as well as steel lift blocks and strut spacers for extra strength. What’s more, the included Performance Rear Shocks provide a comfortable ride, even when tested across rough terrain.

      Performance Shocks. The included Fabtech Performance Shock Absorbers have been specially designed to work in conjunction with the other components in the Kit, resulting in superior ride control. These twin tube hydraulic Shocks feature high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

      Iron Steering Knuckles. Fabtech includes a set of heavy duty replacement steering knuckles in their 6-inch Basic Lift Kit. These extended length steering knuckles are manufactured from ductile iron for superior strength. These knuckles have been designed to operate within the factory steering geometry.

      Lift Blocks and Spacers. The included Strut Spacers and Rear Lift Blocks include in this Basic Lift Kit have been manufactured from high grade steel for superior strength and extra rigidity. The components are then completed in a durable black powder coat finish for long lasting corrosion resistance.

      Welding Required. This is not a bolt-on kit. It should be noted that cutting, drilling and welding is required for installation. With all the necessary hardware included, this Lift kit can be installed in about 8 to 10 hours time. Professional installation is highly recommended.

      This Fabtech 6-inch Basic Lift System with Performance Shocks is designed to fit 2WD or 4WD 2007-2015 5.7L Tundra Double Cab and CrewMax models equipped with an automatic transmission, excluding the TRD Pro.

      Recommended Tire Sizes. This Kit is not for use with OEM wheels and tires, requires the use of 18-inch or larger wheels.
      • Tire Size - 35/12.50R18; Wheel Size - 18×9 with 5-1/2 inch backspacing with minor trimming
      • Tire Size - 35/12.50R20; Wheel Size - 20×9 with 5-1/2 inch backspacing with minor trimming



      Fabtech K7009

      CA Residents: WARNING: Cancer and Reproductive Harm -

      Installation & What's in the Box

      Installation Info

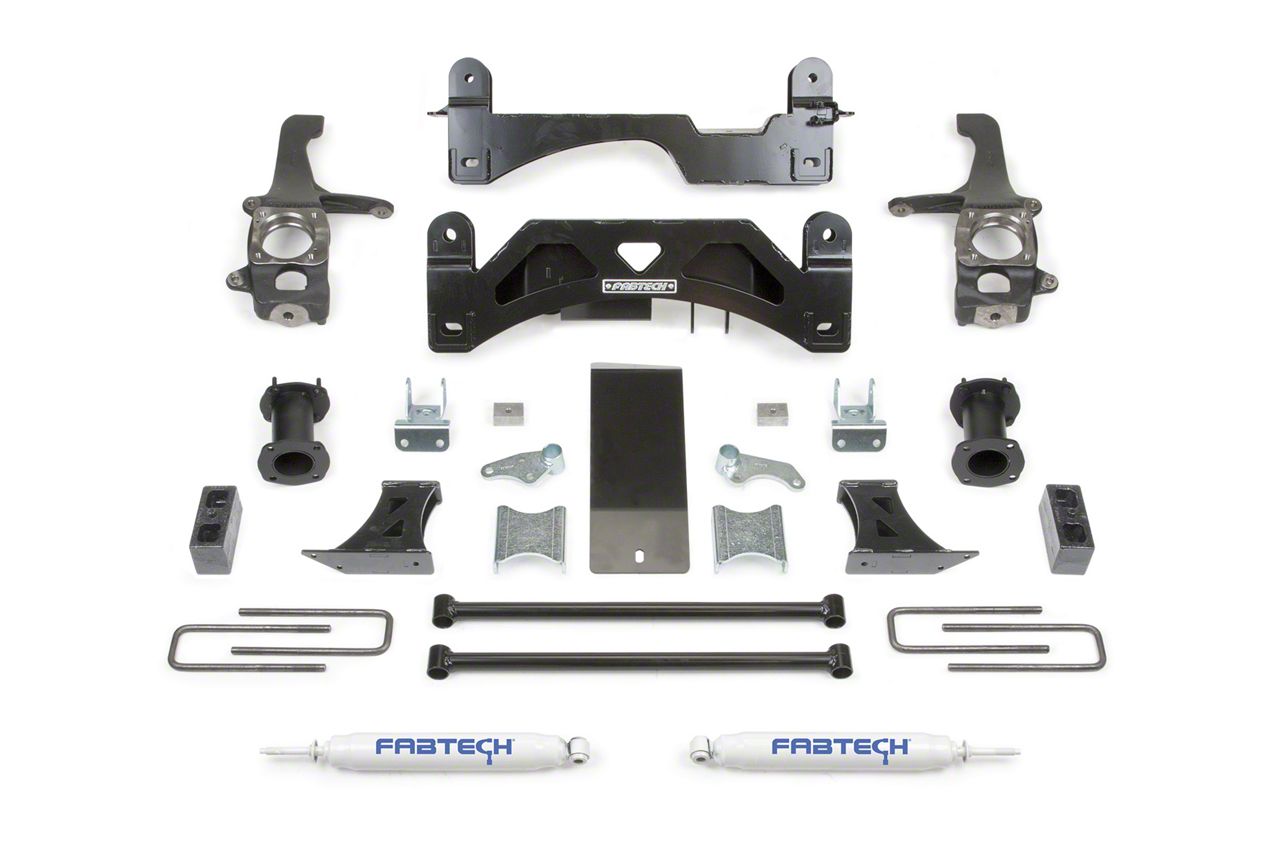

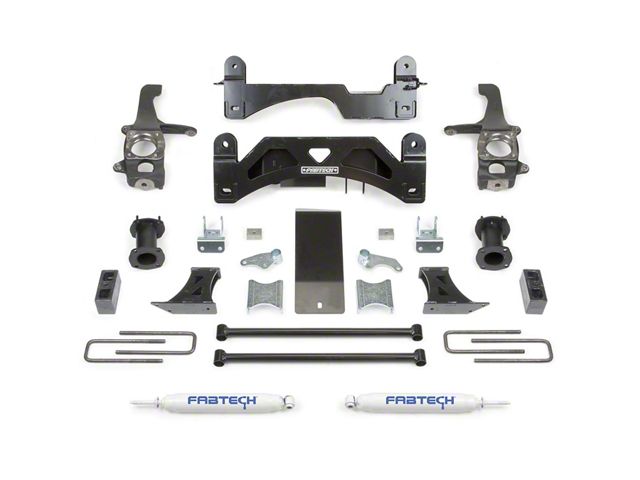

      What's in the Box

      • (2) Bumpstop Mounts
      • (2) Carrier Bearing Spacers
      • (1) Skid Plate
      • (2) Spindles
      • Front Crossmember
      • Rear Crossmember
      • (2) Diff Drop Brackets
      • (2) Sway Bar Drop Brackets
      • (2) Impact Strut Mounts
      • (2) Weld In Plates
      • (2) Rear Lift Blocks
      • (2) Shock Spacers
      • Differential Vent Hose - Large
      • Differential Vent Hose - Small
      • Rear ABS Bracket Extension
      • (3) Rear Brake Line Bracket Ext.
      • (2) Tie Rod Ends
      • (2) Brake Hose Mount Brackets
      • (2) Body Mount Weld-in Gussets
      • Installation Hardware
      • Instructions


      Customer Reviews (6)

        Brand Image

        Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5

          Questions & Answers

          10 More Questions

          Will It Fit My Tundra

          • 5.7L V8 - 07, 08, 09, 10, 11, 12, 13, 14, 15
