Fabtech 2-Inch Ball Joint Upper Control Arm Lift System with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks (16-21 Tundra TRD Pro)

Item TU2542
Verify parts fit and get product recommendations.
Tundra Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price

$3,932.97 (kit)

FREE Shipping + $99.00 Oversized Item Fee Market Price $4,601.99 You Save 15% ($669.02) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Out of Stock

Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Suspension Lift System
      • Offers Additional 2-Inch Lift Height
      • Superior Off-Road Driveability and Improved Handling
      • With Dirt Logic Reservoir Coil-Overs and Shocks
      • Comes with Ball Joint Upper Control Arms
      • CNC-Machined Ductile Iron Spindles
      • With Rear Lift Blocks and U-Bolts
      • Accommodates up to 35-Inch Tires
      • Professional Installation Highly Recommended
      • Backed by a Lifetime Warranty and a 5-Year or 60,000-Mile Powertrain Warranty
      • Designed for All 2016-2021 Toyota Tundra TRD Pro Models

      Description

      Reinforced Dynamics. The Fabtech 2-Inch Ball Joint Upper Control Arm Lift System with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks is built to handle your Tundra’s on and off-road demands. This lift kit is an exceptional upgrade that will provide enhanced off-road driveability and additional support to your lifted Tundra. The heart of this heavy-duty lift system is Fabtech’s set of stainless steel Dirt Logic 2.5 Coilover Shock Absorbers. The tubular Ball Joint Upper Control Arms and high-strength machined spindles also facilitate enhanced handling.

      Enhanced Damping Capacity. The front shock absorbers in this kit are Dirt Logic Reservoir Coil-Overs with primary stainless steel shocks with black anodized 6061 aluminum reservoir bodies. This construction exhibits an improved thermal management system for efficient heat dissipation. The rear shocks are Dirt Logic shocks with stainless steel bodies, aluminum pistons, and NitroSteel black piston rods. These sets of shock absorbers were pre-tuned for precise damping and optimum performance.

      Improved Steering Control. Fabtech includes premium-quality, tubular Ball Joint Upper Control Arms with .120-inch wall DOM tubing construction. These control arms have heavy-duty extended range ball joints that provide additional strength to the front suspension. Additionally, the included extended length ductile iron steering knuckles allow for increased travel without bind and additional caster to handle oversized tires.

      Professional Installation. The components of this 2-Inch Upper Control Arm Lift System with Dirt Logic Shocks directly attach to your vehicle’s factory mounting locations. This kit includes all the necessary hardware for a bolt-on installation process that completes with mechanical expertise required.

      Warranties. Fabtech backs this Lift System with a limited lifetime warranty that covers factory defects in workmanship and materials. If the claim falls within the first 5-year or 60,000-mile period of the vehicle, the Five Sixty Powertrain Warranty will apply. These warranties come with exclusions; please check the full warranty policy for complete details.

      Application. The Fabtech 2-Inch Ball Joint Upper Control Arm Lift System with Dirt Logic 2.5 Reservoir Coil-Overs and Dirt Logic 2.25 Shocks is intended for use on all 2016-2021 Toyota Tundra TRD Pro models.

      Fitment:

      Details

      Fabtech K7074DL

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

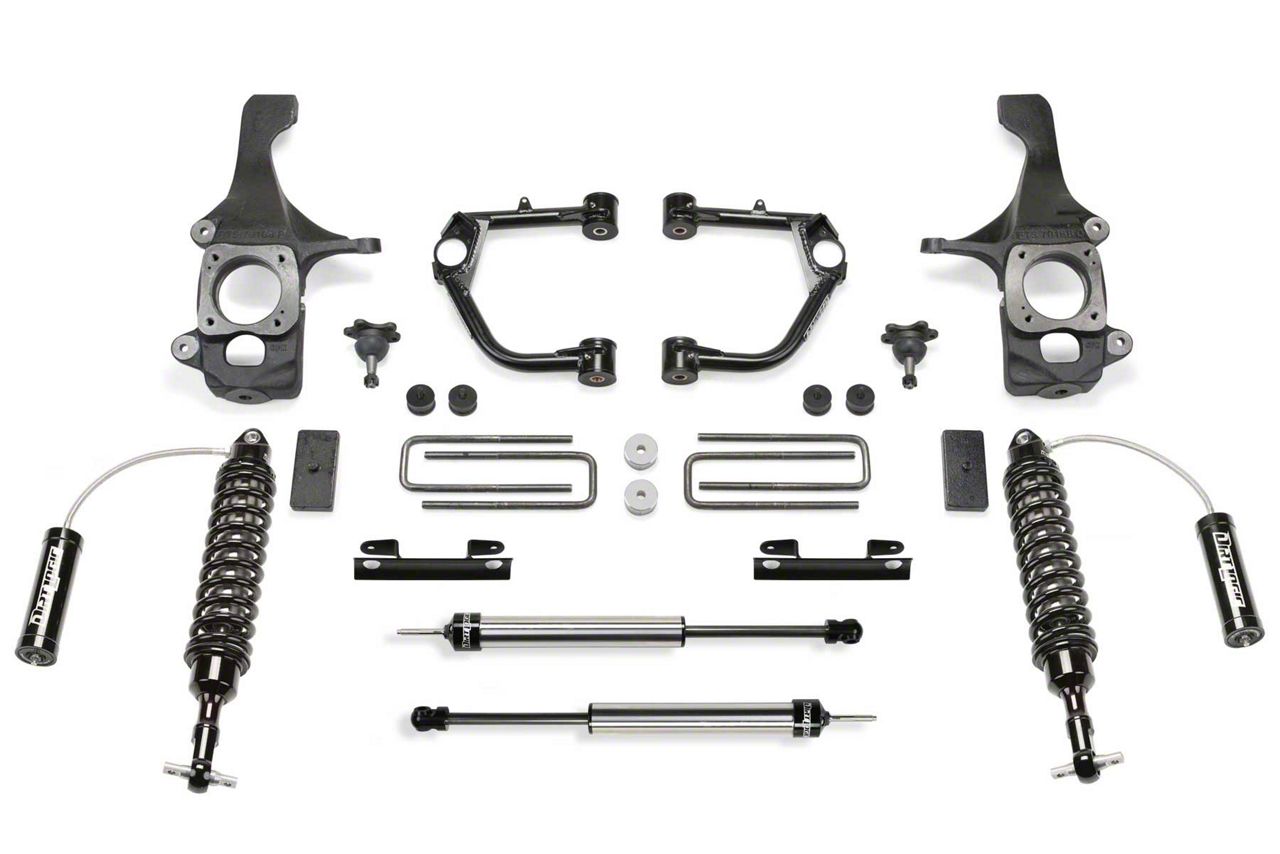

      What's in the Box

      • (1) Driver Side Upper Control Arm
      • (1) Passenger Side Upper Control Arm
      • (2) High Travel Ball Joints
      • (2) Machined Spindles
      • (2) Front Dirt Logic Reservoir Coil-Overs
      • (2) Rear Dirt Logic Shocks
      • (2) Shock Spacers
      • (2) Rear Lift Blocks
      • (4) U-Bolts
      • Installation Hardware
