Fabtech 2-Inch Uniball Upper Control Arm System with Dirt Logic 2.5 Coil-Overs and Dirt Logic Shocks (07-15 Tundra)
Item TU1914
$0.00
Our Price
$3,104.91 (kit)
FREE Shipping Market Price $3,632.99 You Save 15% ($528.08) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Out of Stock
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Recommended Install Shops
Install Shops are available near Columbus - 43215
Add Installation From:
Wards Auto Repair LLC
551 Corbett Rd, Groveport, OH
11.21 miles away
25 Reviews
*Specific shop subject to availability
Total cost of service $399.00
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Fabtech 2-inch Upper Control Arm System
- Increases Ground Clearance for Improved Off-Roading
- Front Dirt Logic 2.5 Coilovers
- Rear Dirt Logic 2.25 Shock Absorbers
- Tubular Upper Control Arms
- PTFE Lined Stainless Steel American Uniball Bushings
- Fits 2007-2015 Toyota Tundra Models
| Brand | Fabtech |
| Control Arms Placement | Front Upper |
Description
Two Inches of Lift. Take on what the great outdoors can throw at you by upgrading your Tundra's stock suspension with a 2-inch Uniball Upper Control Arm System from Fabtech. With 2-inches of lift, this kit can accommodate tires up to 33 x 12.5 in size mounted on 20-inch wheels. This Fabtech 2-inch System features tubular upper control arms with PTFE lined stainless steel American uniball bushings. What’s more, the included Dirt Logic 2.5 Coilover and 2.25 Rear Shocks provide a comfortable ride, even when tested across rough terrain.
Tubular Control Arms. Fabtechs tubular upper control arms are built with same materials as found on Trophy Trucks. The included 1.50-inch OD tubular control arms are manufactured from 0.120-inch wall 4130 chromoly tubing for superior strength and are then completed in a durable black powder coat finish for long lasting corrosion resistance. These control arms feature 0.250-inch wall DOM bushing barrels with PTFE lined 1-inch ID stainless steel American Uniballs. The included heat treated, 17-4 stainless steel Uniball pins fit into the factory ball joint taper without modifications to the spindle for an easy return to stock feature.
Dirt Logic Coilovers and Shocks. The included Dirt Logic Coilovers and Shock Absorbers have been specially tuned to work in conjunction with the other components in this Kit, resulting in superior ride control. The Coilovers feature a 2.5-inch OD stainless steel body, 2.25-inch OD billet aluminum piston, and a 7/8-inch thick NitroSteel black piston rod with cold wound coil springs, to provide incredible dampening capacity for aggressive off-road driving. The Shocks feature a 2.25-inch OD stainless steel body, 2.0-inch OD billet aluminum piston, and a 7/8-inch thick NitroSteel black piston rod, making them significantly tougher when compared to stock.
Application. This Fabtech 2-inch Uniball Upper Control Arm System with Dirt Logic 2.5 Coil-Overs and Dirt Logic Shocks is designed to fit 2WD and 4WD 2007-2015 Tundra models.
Recommended Tire Size. Tire Size - 33/12.50R20; Wheel Size - 20×9 with 5-1/2 inch backspacing with minor trimming.
Tubular Control Arms. Fabtechs tubular upper control arms are built with same materials as found on Trophy Trucks. The included 1.50-inch OD tubular control arms are manufactured from 0.120-inch wall 4130 chromoly tubing for superior strength and are then completed in a durable black powder coat finish for long lasting corrosion resistance. These control arms feature 0.250-inch wall DOM bushing barrels with PTFE lined 1-inch ID stainless steel American Uniballs. The included heat treated, 17-4 stainless steel Uniball pins fit into the factory ball joint taper without modifications to the spindle for an easy return to stock feature.
Dirt Logic Coilovers and Shocks. The included Dirt Logic Coilovers and Shock Absorbers have been specially tuned to work in conjunction with the other components in this Kit, resulting in superior ride control. The Coilovers feature a 2.5-inch OD stainless steel body, 2.25-inch OD billet aluminum piston, and a 7/8-inch thick NitroSteel black piston rod with cold wound coil springs, to provide incredible dampening capacity for aggressive off-road driving. The Shocks feature a 2.25-inch OD stainless steel body, 2.0-inch OD billet aluminum piston, and a 7/8-inch thick NitroSteel black piston rod, making them significantly tougher when compared to stock.
Application. This Fabtech 2-inch Uniball Upper Control Arm System with Dirt Logic 2.5 Coil-Overs and Dirt Logic Shocks is designed to fit 2WD and 4WD 2007-2015 Tundra models.
Recommended Tire Size. Tire Size - 33/12.50R20; Wheel Size - 20×9 with 5-1/2 inch backspacing with minor trimming.
Fitment:
- 2007 Toyota Tundra
- 2008 Toyota Tundra
- 2009 Toyota Tundra
- 2010 Toyota Tundra
- 2011 Toyota Tundra
- 2012 Toyota Tundra
- 2013 Toyota Tundra
- 2014 Toyota Tundra
- 2015 Toyota Tundra
Fabtech K7027DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

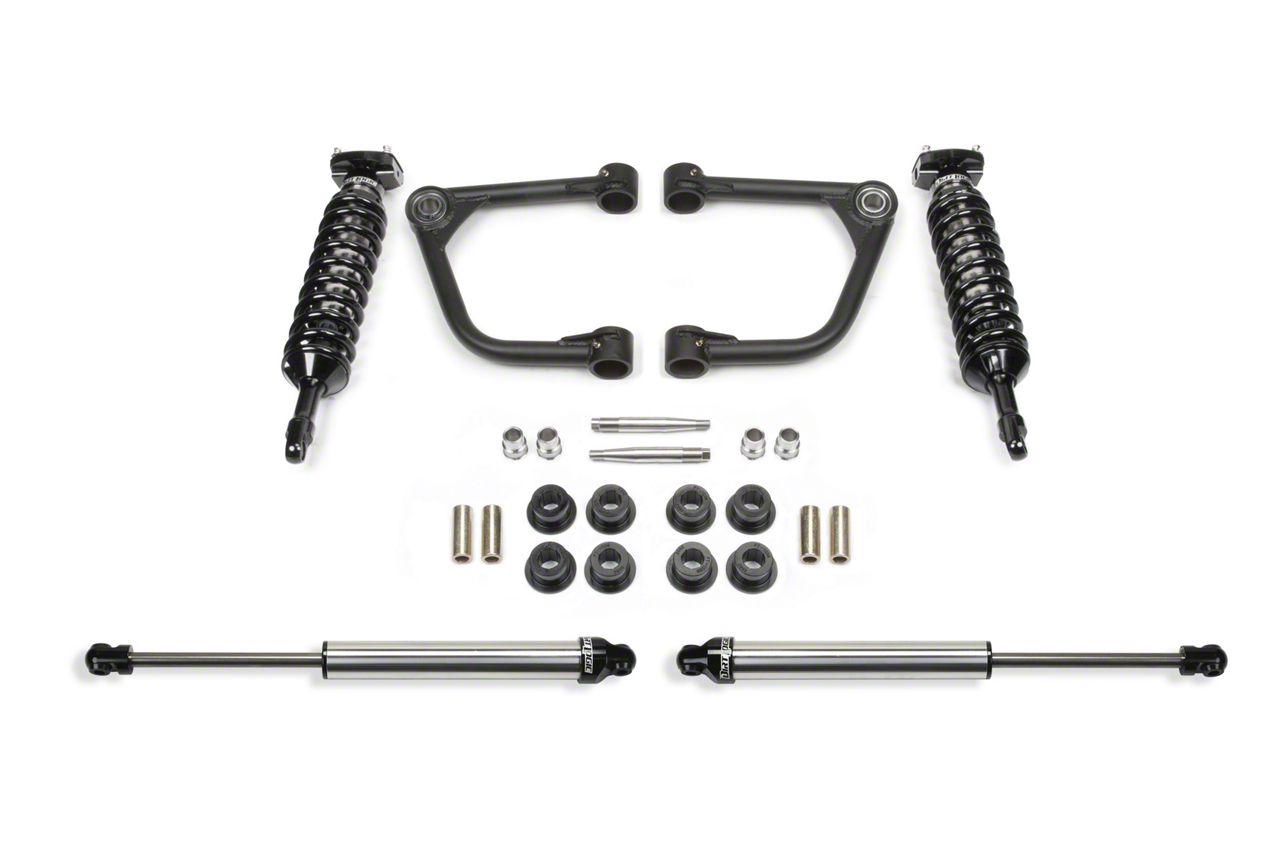

What's in the Box
- (2) Dirt Logic 2.5 Coilovers
- (2) Dirt Logic 2.25 Shocks
- (2) Upper Control Arms
- Installation Hardware
