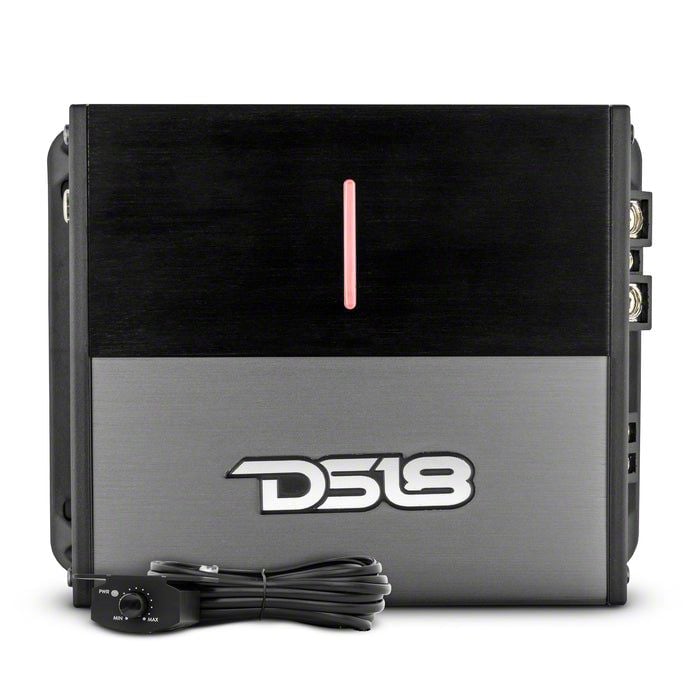

DS18 ION Compact Full Range 1-Channel Amplifier; 600 Watts (Universal; Some Adaptation May Be Required)

Item TU51541
Our Price

$203.95

Military, Medical & First Responders $10.20 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • 1 Channel Full Range
      • _x000D_
      • Class D
      • _x000D_
      • 1 - 4 Ohm Stable
      • _x000D_
      • 1 X 600 Watts @ 1 Ohm
      • _x000D_
      • Power / Clip / Protection Indicator
      • _x000D_
      • Compact
      • _x000D_
      • Total Watts Peak 1800W
      • _x000D_
      • RMS Power @ 4 Ohm 200W
      • _x000D_
      • RMS Power @ 2 Ohm 400W
      • _x000D_
      • Frequency Response 10Hz-20KHz
      • _x000D_
      • Signal To Noise Ratio >95dB
      • _x000D_
      • Efficiency @ 4 Ohm 88%
      • _x000D_
      • Damping Factor 210
      • _x000D_
      • Input Impedance 27Kohms
      • _x000D_
      • Total Harmonic Distortion 0.01%
      • _x000D_
      • Selectable X-Over Band-Pass
      • _x000D_
      • X-Over Filter Range HP 15Hz-1KHz / LP 40Hz-20KHz
      • _x000D_
      • Bass Boost Range 0~12dB
      • _x000D_
      • Bass Boost Frequency 45Hz
      • _x000D_
      • Amplifier Class Digital
      • _x000D_
      • Amplifier Type Full-Range Monoblock
      • _x000D_
      • Minimum Impedance 1 Ohm
      • _x000D_
      • Led Indicator Power / Protect / Clipping
      • _x000D_
      • Power Input Terminal Size 4 AWG
      • _x000D_
      • Fuse Size 80A External
      • _x000D_
      • Remote Level Control Yes
      • _x000D_
      • Thermal Protection Yes
      • _x000D_
      • Over-Load Protection Yes
      • _x000D_
      • DC Output Protection Yes
      • _x000D_
      • Short Circuit Output Protection Yes
      • _x000D_
      • Voltage Input Protection Yes
      • _x000D_
      • Clipping Protection Yes
      • _x000D_
      • Body Color / Finish Aluminum Black / Silver
      • _x000D_
      • Hi-Level Speaker Connector Yes
      • _x000D_
      • Tiffany RCA Terminal Yes
      • _x000D_
      • LED Clip Indicator Yes
      • _x000D_
      • High Efficiency Micro Digital Design Yes
      • _x000D_
      • Overall Length 6.14" / 156mm
      • _x000D_
      • Overall Wide 4.72" / 120mm
      • _x000D_
      • Overall Height 2" / 52mm
      • _x000D_
      • Heatsink Length 4.84" / 123mm
      • _x000D_
      • Gross Single Unit Weight 0.7Kg
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      High Performance Amplifier. The DS18 ION Compact Full Range 1-Channel Amplifier; 600 Watts is engineered to deliver powerful and clear audio output, suitable for driving various audio systems with precision and reliability. It is designed as a full-range amplifier to provide consistent performance across a wide frequency response, enhancing the listener's sound experience.

      _x000D__x000D_

      Construction and Appearance. This amplifier features a robust aluminum body with a black and silver finish, ensuring durability and a sleek, modern look. Its high-efficiency micro digital design promotes excellent performance, while protective coatings on PCB components prevent moisture damage and vibration-related issues, guaranteeing longevity under various conditions.

      _x000D__x000D_

      Installation. Installation is straightforward with standard mounting provisions, typically requiring no drilling. The compact size facilitates integration into diverse vehicle or audio setups without occupying excessive space.

      _x000D__x000D_

      Warranty. This amplifier is backed by a 2-year warranty, offering peace of mind against defects and ensuring product reliability.

      _x000D__x000D_

      Application. Fits universal applications; some adaptation may be required to accommodate specific systems or installations.

      DS18 ION600.1D
