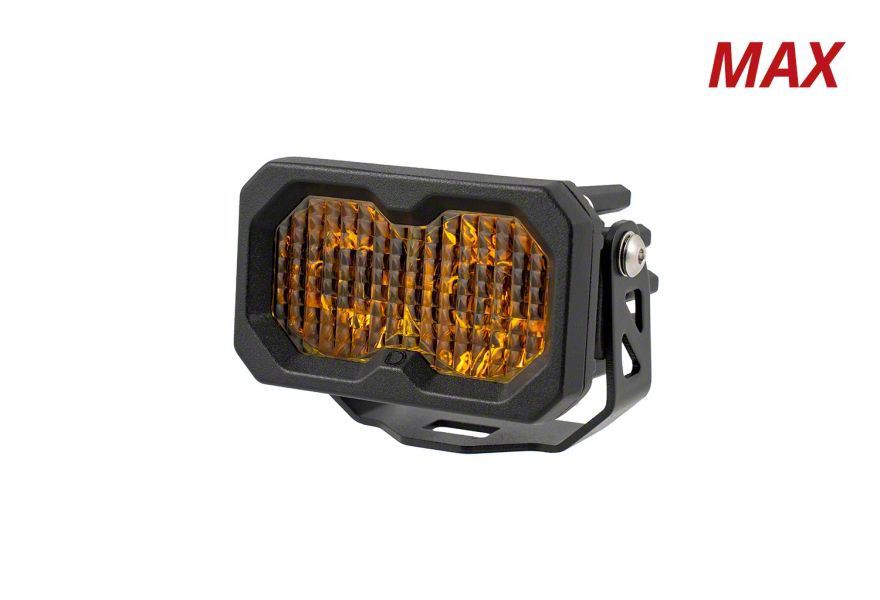

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow SAE Fog/Wide (Universal; Some Adaptation May Be Required)

Item TU66040
Product Image
Our Price

$239.95

Military, Medical & First Responders $12.00 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact Design For Tight Mounting Spots
        • _x000D_
      • Patented TIR Optics For Maximum Output
        • _x000D_
      • Up To 95% More Power Than C2 1.0
        • _x000D_
      • Available In Sport, Pro, And New 3900-Lumen Max Power Levels
        • _x000D_
      • Customizable Mounting To Dial In Your Setup
        • _x000D_
      • Link Multiple Pods With CrossLink Technology
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • Made In USA With Global Materials
        • _x000D_
      • Raw Lumens: 3,960
        • _x000D_
      • Color Temp (CCT): 3000K
        • _x000D_
      • Power (Watts): Main Beam 30, Backlight 0.38
        • _x000D_
      • Operating Voltage: 9-30V
        • _x000D_
      • Current (Amps @ 12.8V): Main Beam 2.3, Backlight 0.03
        • _x000D_
      • Polarity Specific
        • _x000D_
      • Operating Temperature: -40C To 85C (-40F To 185F)
        • _x000D_
      • LED Emitter: Osram Boost HX
        • _x000D_
      • Connector(s): Deutsch DT Input
        • _x000D_
      • Driver Features: Constant Current
        • _x000D_
      • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
        • _x000D_
      • Cooling: Passive, Pin-Fin Heatsink
        • _x000D_
      • Compliance Ratings: SAE J575 Durability Test
        • _x000D_
      • Intrusion Ratings: IP69K Waterproof, High Pressure
        • _x000D_
      • Product Dimensions (In): 2 X 3.3 X 2.4
        • _x000D_
      • Unit Weight (Lb): 0.55
        • _x000D_
      • Product Weight (Lb): 1.4
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance LED Pod. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow SAE Fog/Wide provides focused illumination in tight mounting locations. Engineered for enhanced brightness and versatility, this pod is ideal for improving visibility in foggy or wide-area conditions, making it suitable for both off-road and on-road applications.

      _x000D__x000D_

      Construction and Appearance. This LED pod features a durable aluminum casting with a powder-coated finish to ensure effective heat dissipation and corrosion resistance. It includes a polycarbonate lens and a rubber gasket to maintain waterproof integrity, all within a sleek, compact design that fits seamlessly on various vehicle mounts.

      _x000D__x000D_

      Installation. Installation is straightforward using common tools, with no drilling generally needed due to the adjustable mounting bracket. The pod includes Deutsch-style connectors and mounting hardware for a secure and reliable fit.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty, ensuring long-term peace of mind and reliable operation.

      _x000D__x000D_

      Application. Designed for universal fitment, this LED pod may require some adaptation depending on the mounting location and vehicle specifications to ensure proper installation and optimal functioning.
