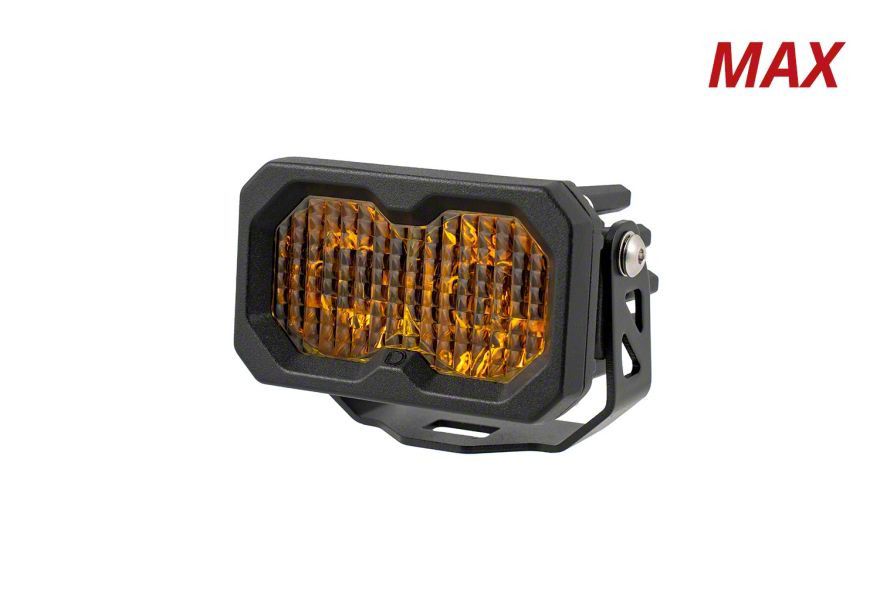

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Driving (Universal; Some Adaptation May Be Required)
Item TU66044
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output And Reduced Glare _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting To Dial In Your Setup _x000D_
- Link Multiple Pods With Crosslink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Raw Lumens: 3,960 Lm _x000D_
- Color Temperature (CCT): 3000K _x000D_
- Power (Watts): Main Beam: 30, Backlight: 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current (Amps @ 12.8V): Main Beam: 2.3, Backlight: 0.03 _x000D_
- Polarity Specific _x000D_
- Operating Temperature: -40°C To 85°C (-40°F To 185°F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector(s): Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive, Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High Pressure _x000D_
- Product Dimensions (In): 2 X 3.3 X 2.4 _x000D_
- Unit Weight (Lb): 0.55 _x000D_
- Product Weight (Lb): 1.4 _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
HIGH-PERFORMANCE LED LIGHTING. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight and Yellow Driving delivers exceptional illumination with up to 3,960 raw lumens in a compact 2-inch pod. Designed to provide focused, intense light for various applications, it is ideal for tight mounting spots and offers a unique amber backlight for enhanced visibility and style.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. This LED pod features a durable aluminum casting with a powder-coated finish and a polycarbonate lens for long-lasting strength and clarity. Internally, it utilizes an Osram Boost HX LED emitter mounted on a copper-core circuit board for enhanced thermal efficiency, paired with a pin-fin heatsink for passive cooling and reliable operation under harsh conditions.
_x000D__x000D_INSTALLATION. Installation requires basic tools and generally takes between 30-60 minutes. The pod’s design allows for customizable mounting angles, minimizing the need for complex modifications or drilling in many cases.
_x000D__x000D_WARRANTY. The product includes a limited lifetime warranty ensuring long-term reliability and protection against defects.
_x000D__x000D_APPLICATION. Fits universal mounting applications; some adaptation may be required depending on specific vehicle setups or mounting locations.
