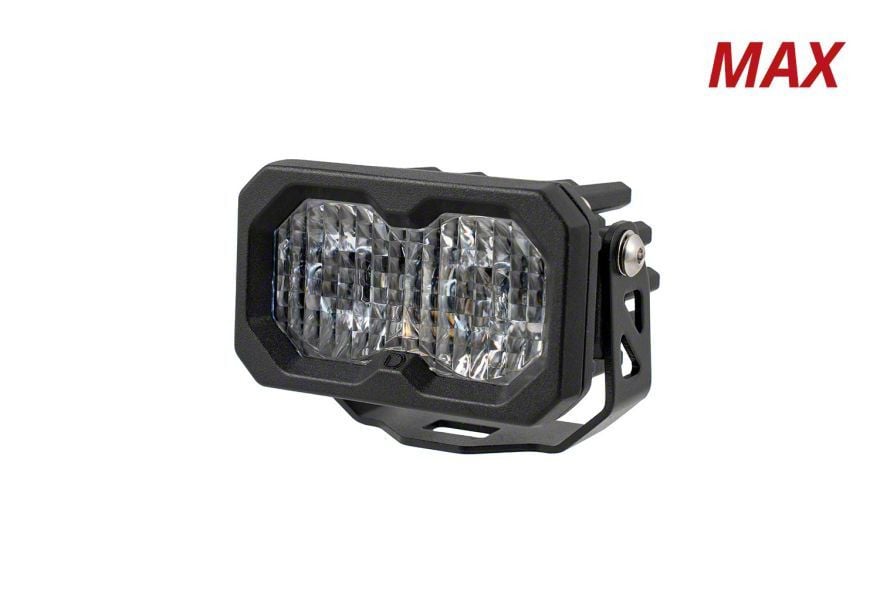

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White Spot (Universal; Some Adaptation May Be Required)
Item TU66010
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented Total Internal Reflection Optics For Maximum Output _x000D_
- Up To Ninety-Five Percent More Power Than Previous Generation _x000D_
- Available In Sport, Pro, And New Three Thousand Nine Hundred Lumens Max Power Levels _x000D_
- Customizable Mounting To Dial In Setup _x000D_
- Link Multiple Pods With CrossLink Technology _x000D_
- Limited Lifetime Warranty Included _x000D_
- Made In USA With Global Materials _x000D_
- Raw Light Output Of Three Thousand Nine Hundred Sixty Lumens _x000D_
- Color Temperature Of Six Thousand Kelvin _x000D_
- Power Consumption: Thirty Watts Main Beam, Zero Point Three Eight Watts Backlight _x000D_
- Operating Voltage Range: Nine To Thirty Volts _x000D_
- Current Draw: Two Point Three Amps Main Beam, Zero Point Zero Three Amps Backlight At Twelve Point Eight Volts _x000D_
- Polarity Specific Connection _x000D_
- Operating Temperature Range Minus Forty To Eighty-Five Degrees Celsius _x000D_
- Osram Boost HX LED Emitters _x000D_
- Deutsch DT Input Connector _x000D_
- Constant Current Driver _x000D_
- Construction Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Passive Cooling With Pin-Fin Heatsink _x000D_
- Meets SAE J575 Durability Standards _x000D_
- IP69K Waterproof Rating For High Pressure Intrusion Resistance _x000D_
- Product Dimensions: Two By Three Point Three By Two Point Four Inches _x000D_
- Unit Weight: Zero Point Fifty-Five Pounds _x000D_
- Single Pod Included With Deutsch-Style Wire Pigtail, Mounting Bracket, And Hardware _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
Innovative LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White Spot is a high-performance compact LED pod designed to deliver powerful illumination in tight spaces. It is ideal for off-road and on-road applications where precise and intense lighting is necessary for safety and visibility. Its versatile design and customizable optics make it suitable for a wide range of automotive lighting needs.
_x000D__x000D_Construction and Appearance. This LED pod features a rugged aluminum housing with a durable finish for excellent heat dissipation and long-lasting performance. The polycarbonate lens provides crystal-clear light transmission, and the rugged rubber gasket ensures water and dust resistance. It is engineered with a copper-core circuit board for maximum thermal efficiency, resulting in reliable and consistent performance under extreme conditions.
_x000D__x000D_Installation. Installation is straightforward and typically requires basic tools, with no extensive modifications needed in most cases. The pod’s compact size and adjustable mounting brackets allow for flexible positioning without the need for drilling in many setups.
_x000D__x000D_Warranty. This product includes a limited lifetime warranty, ensuring long-term reliability and customer satisfaction.
_x000D__x000D_Application. Fits universal; some adaptation may be required.
