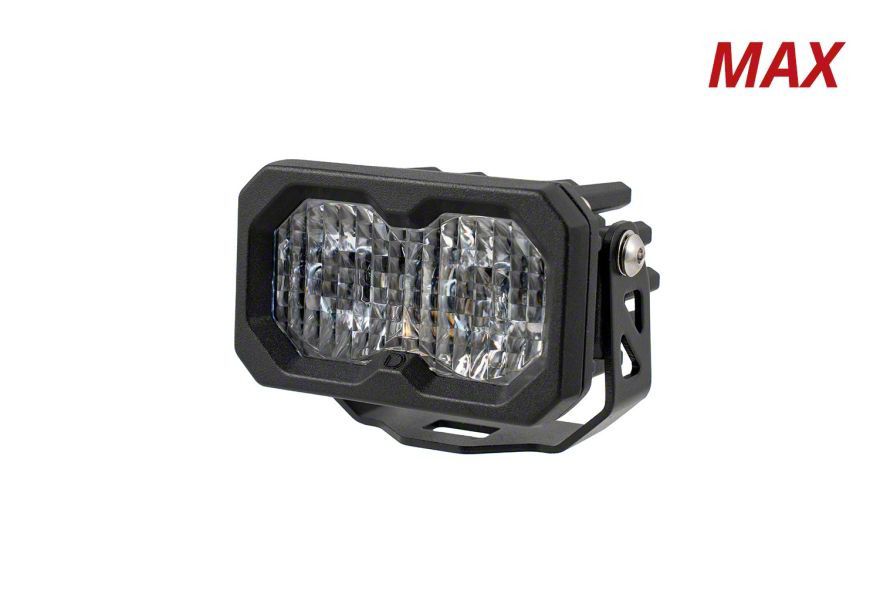

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White SAE Fog/Wide (Universal; Some Adaptation May Be Required)
Item TU66038
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output and Efficiency _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting Options With Multiple Points For Easy Adjustment _x000D_
- Link Multiple Pods With CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Raw Lumens 3,960 Lm _x000D_
- Color Temperature 6000K _x000D_
- Power Main Beam 30 Watts, Backlight 0.38 Watts _x000D_
- Operating Voltage 9-30V _x000D_
- Current Main Beam 2.3 Amps @ 12.8V, Backlight 0.03 Amps @ 12.8V _x000D_
- Polarity Specific _x000D_
- Operating Temperature -40°C To 85°C (-40°F To 185°F) _x000D_
- LED Emitter Osram Boost HX _x000D_
- Connector Deutsch DT Input _x000D_
- Driver Features Constant Current _x000D_
- Materials Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling Passive, Pin-Fin Heatsink _x000D_
- Compliance Ratings SAE J575 Durability Test _x000D_
- Intrusion Ratings IP69K Waterproof, High Pressure Resistant _x000D_
- Product Dimensions 2 X 3.3 X 2.4 Inches _x000D_
- Unit Weight 0.55 Pounds _x000D_
- Product Weight 1.4 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
Advanced LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White SAE Fog/Wide delivers powerful, focused illumination suited for diverse automotive and off-road environments. Designed to provide exceptional brightness with optimized beam patterns, this pod improves visibility in challenging conditions while maintaining a compact and versatile profile.
_x000D__x000D_Construction and Appearance. Built with a rugged aluminum housing featuring a powder-coated finish, this pod ensures superior heat dissipation and corrosion resistance. Equipped with a durable polycarbonate lens and rubber gasket to prevent moisture and dust ingress, it guarantees long-lasting performance. The amber backlight adds a distinct accent that fully illuminates the optic for a modern aesthetic.
_x000D__x000D_Installation. Installation is straightforward, requiring only basic tools and generally no drilling. Its compact design and multiple mounting points provide easy adjustment and secure attachment to various vehicle setups.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, underscoring its quality and durability.
_x000D__x000D_Application. Designed for universal fitment with some necessary adaptation, this LED pod is compatible with a wide array of vehicles and configurations, making it an excellent choice for users seeking customizable, high-performance lighting solutions.
