Diode Dynamics D-Switch 8-Channel Switch Panel (Universal; Some Adaptation May Be Required)

Item J244535
Product Image
Our Price

$599.95

Military, Medical & First Responders $30.00 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • Group And Control Multiple Outputs With A Single Button
      • Dedicated Backlight Channel To Control Your Accent Lighting
      • Fast, Responsive Bluetooth App - No Lagging Or Loading Screens
      • Solid-State, Fully-Encapsulated Design For Extreme Durability
      • Three Trigger Wires For OEM-Like Control Through Vehicle Signals
      • Engineered And Assembled In USA
      • Channels 1 To 4: 15 Amps Per Channel
      • Channels 5 To 8: 30 Amps Per Channel
      • Backlight Channel: 15 Amps Total
      • Maximum Total Current: 125 Amps
      • Operating Voltage Range: 9 To 16 Volts DC
      • Includes Four Trigger Wires Plus An Ignition Wire For Integration
      • IP67 Weatherproof Rating For Electronics
      • Controller Dimensions: 5.06 In X 2.66 In X 0.45 In
      • Hub Dimensions: 8.33 In X 6.26 In X 1.79 In
      • Operating Temperature Range: -40�C To 120�C (-40�F To 250�F)
      • Includes Controller Mounting Bracket, Wiring Harnesses, T-Taps, Zip Ties, And Installation Hardware
      • 3 Year Limited Warranty
      • Fits Universal; Some Adaptation May Be Required

      Description

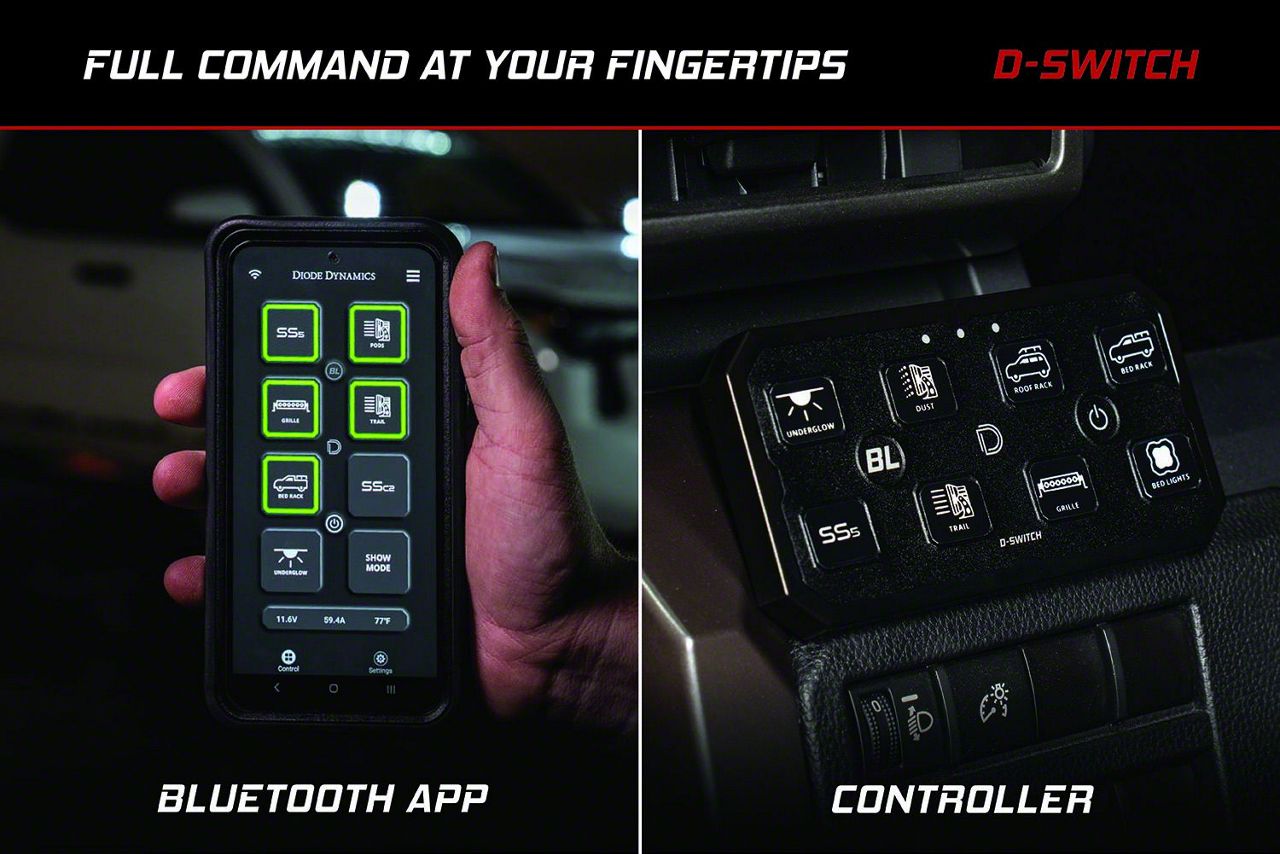

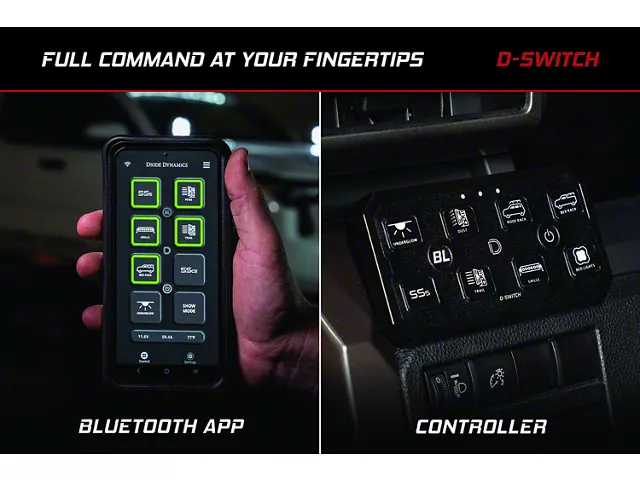

      Advanced Switch Control. The Diode Dynamics D-Switch 8-Channel Switch Panel offers comprehensive command over multiple 12V accessories with eight customizable output channels. Designed primarily for automotive lighting systems, it enables users to group and control multiple outputs per button, streamlining vehicle lighting management and enhancing operational flexibility.

      Construction and Appearance. This switch panel features a robust solid-state design with no mechanical relays, housed in an encapsulated aluminum heatsink for superior heat dissipation and durability. Both the controller and hub exhibit an IP67 weatherproof rating, assuring reliable performance under harsh environmental conditions, finished in rugged materials including FR4 PCB, aluminum casting, and ASA plastic.

      Installation. Installation is straightforward, suitable for users with basic toolsets and requires no complex modifications or drilling. The entire process can be completed within 30 to 60 minutes using the provided hardware and detailed installation guide.

      Warranty. This product includes a 3-year limited replacement warranty, providing assurance of quality and reliability over extended use.

      Application. Designed for universal fitment, this switch panel may require some adaptation to integrate with various vehicle configurations and accessory setups.

      Diode Dynamics DD8373
