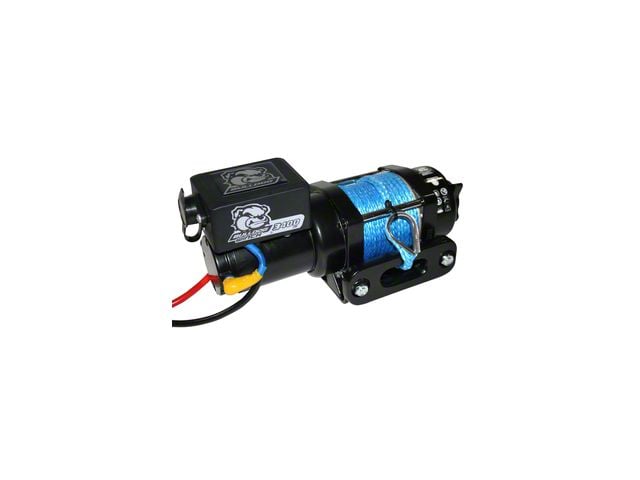

Bulldog Winch 3,400 lb. Utility Winch with Synthetic Rope (Universal; Some Adaptation May Be Required)

Item J245508
Product Image
$0.00
Want $10? Write one of the first 5 reviews
Our Price

$556.99

Military, Medical & First Responders Earn $27.85 in XT Cash Rewards. Get Verified

In Stock

Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Description, Q&A, Specs & Installation

      Features & Specs

      Description

      Bulldog Winch Co. 3400lb Trailer / Utility Winch

      Bulldog Winch Co. 3400lb Trailer / Utility Winch

      The Bulldog Winch Co. 3400lb Trailer / Utility Winch is designed to deliver reliable power and versatility for trailers and utility vehicles. With a 1.5HP permanent magnet motor and a rated line pull of 3,400 lbs, this winch is perfect for a wide range of light to medium-duty applications.

      • Rated Line Pull: 3,400 lbs
      • Motor: 1.5HP, 12V DC permanent magnet
      • Switch: 250A sealed contactor
      • Controller: Wired handheld remote with 20 ft lead (optional wireless controller available, PN 20212)
      • Battery Leads: 6 ft
      • Gear Train: 3-stage planetary, 166:1 ratio
      • Clutch: Freespooling for easy rope deployment
      • Brake: Automatic load-holding in drum
      • Drum Size: 2" x 3.15"
      • Wire Rope: 3/16" x 45 ft
      • Mounting Bolt Patterns: Winch: 4.88" x 3" (124 x 76mm), Plate: 1.96" x 3.74" (50 x 95mm)
      • Weight: 18.7 lbs
      • Warranty: 2-year limited

      Performance

      Line Pull & Speed
      Line Pull (lbs) Line Speed (ft/min) Current (A)
      01530
      10001370
      200010125
      30006184
      34005240

      Rope Capacity by Layer

      Line Pull & Rope Capacity
      Layer Rated Line Pull (lbs) Total Rope on Drum (ft)
      134007.6
      2297816.6
      3259126.9
      4229338.6
      5205745

      The Bulldog 3400lb Trailer / Utility Winch combines dependable performance, user-friendly operation, and robust construction—making it an ideal solution for your trailer and utility winching needs.

      Bulldog Winch 15018
