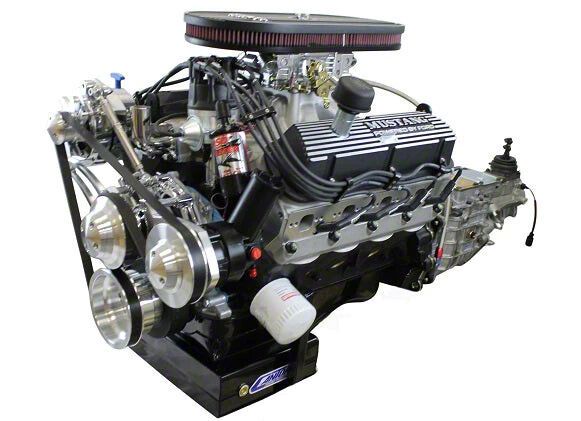

BluePrint Engines Mustang Edition Builder Series Small Block Ford 347 C.I. 415 HP Fuel Injected Crate Engine and TKX Manual Transmission with Polished Pulley Kit
Item U19342-XT
Our Price
$20,799.00
Military, Medical & First Responders
$1,039.95 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Horsepower & Torque: 415 Horsepower / 415 Ft. Lbs. Torque
- Compression Ratio: 10.0:1
- Aluminum Heads
- Hydraulic Roller Cam
- Cast Crank
- Forged Pistons
- High Strength Cast Iron Block
- Increased Deck Thickness And Strength Webbing
- Priority Main Oiling
- 4.000" Bore
- 4-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
- Cast Crankshaft With 3.400" Stroke
- Forged I-Beam 5.400" Connecting Rods
- 28oz Externally Balanced Front And Rear
- Aluminum Cylinder Heads With 60cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 190cc Intake / 65cc Exhaust Runners
- Hydraulic Roller Camshaft .543 Intake / .554 Exhaust Lift
- 218 Intake / 226 Exhaust Duration @ .050" Lift
- 112 Degree Lobe Separation Angle
- Ignition Timing: 34 Degrees Total At 3500 RPM
- Dual Plane Satin Aluminum Intake Manifold
- Holley Sniper 2 EFI System
- EFI Fuel Pump Kit
- Pro Billet Distributor
- Mustang Style Valve Covers
- Thermostat And Thermostat Housing
- 7 Quart Oil Pan
- Polished Front Accessory Drive Including Water Pump, Power Steering Pump, Alternator, And Air Conditioning Compressor
- Completed With TKX Manual Transmission Package Featuring Mcleod Super Street Pro Single Disk Clutch
- Transmission Gear Ratios: 2.87:1, 1.89:1, 1.28:1, 1.00:1, 0.81:1
- Fuel Recommendation: 91+ Octane
- Fits Mustang Edition Builder Series Applications
Description
HIGH-PERFORMANCE ENGINE PACKAGE. The BluePrint Engines Mustang Edition Builder Series Small Block Ford 347 C.I. 415 HP Fuel Injected Crate Engine and TKX Manual Transmission with Polished Pulley Kit is a factory-assembled powertrain solution designed to deliver robust horsepower and torque. This package enhances vehicle performance, providing enthusiasts and professionals with a turnkey upgrade that combines reliable power with modern fuel injection technology. Ideal for Mustang builds and compatible small block Ford applications, it simplifies the installation process and ensures excellent drivability.
CONSTRUCTION AND APPEARANCE. Constructed using a high-strength cast iron block with increased deck thickness and reinforced webbing, this engine is built for durability and longevity. It features aluminum cylinder heads crafted to precise specifications for improved airflow, complemented by a polished front accessory drive for a distinguished and clean appearance. The rotating assembly includes a cast crankshaft with forged I-beam connecting rods and forged pistons, ensuring strength and balance. The total package is finished with Mustang-style valve covers and a satin aluminum intake manifold, balancing aesthetics and function.
INSTALLATION. Installation of this engine and transmission package is moderately challenging and best performed by experienced mechanics or professionals. No additional drilling is typically required, but customers should verify clearance for front accessory drive components and consider potential modifications for power steering hoses or wiring depending on the vehicle.
WARRANTY. This engine package includes an industry-leading standard warranty of 30 months or 50,000 miles, covering parts and labor to provide peace of mind and confidence in quality.
APPLICATION. Specifically designed to fit Mustang Edition Builder Series applications. Customers should verify compatibility with their specific vehicle and note that additional fitting considerations may be required for certain models.
BluePrint Engines B347FKTKXM
