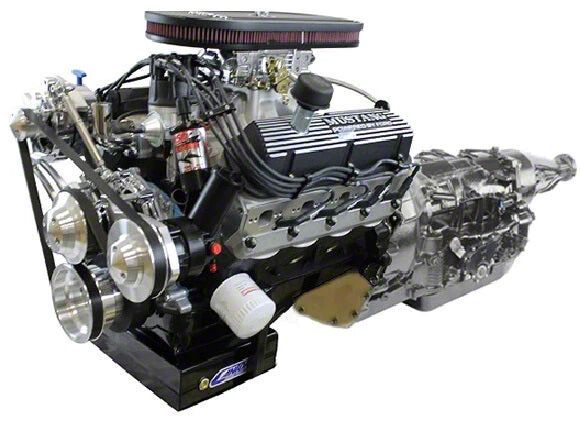

BluePrint Engines Mustang Edition Builder Series Small Block Ford 347 C.I. 415 HP Fuel Injected Crate Engine and 4R70W Automatic Transmission with Polished Pulley Kit

Item U19340-XT
Product Image
1 Reviews of BluePrint Engines
Our Price

$21,899.00

Military, Medical & First Responders $1,094.95 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • 415 Horsepower / 415 Ft. Lbs. Torque
      • BluePrint Engines Aluminum Cylinder Heads
      • 10:1 Compression Ratio
      • Hydraulic Roller Cam With .543 Intake / .554 Exhaust Lift And 218 Intake / 226 Exhaust Duration @ .050 - 112 LSA
      • Forged Pistons
      • Cast Crankshaft With 3.400" Stroke
      • Forged 5.400" Connecting Rods
      • Fuel Recommendation: 91+ Octane
      • BluePrint Engines High Strength Cast Iron Block With Increased Deck Thickness And Strength Webbing
      • Priority Main Oiling System
      • 4.000" Bore Diameter
      • 4-Bolt Main Caps
      • 1-Piece Rear Main Seal
      • Improved Water Jacket Design
      • Satin Aluminum Dual Plane Intake Manifold Included
      • Holley Sniper 2 EFI System
      • EFI Fuel Pump Kit
      • Pro Billet Distributor
      • Mustang Style Valve Covers
      • 7 Quart Oil Pan
      • Thermostat And Thermostat Housing Included
      • Polished Front Accessory Drive With Driver Side Standard Rotation Water Pump, Type II Power Steering Pump, Remote Power Steering Pump Reservoir, 140 Amp 1-Wire Alternator, And 7B10 Peanut Air Conditioning Compressor
      • Complete 4R70W Automatic Transmission Package Including Electronic Transmission Controller, 2200-2600 Stall Torque Converter, Flexplate, Starter, TPS Harness
      • 4 Speed Overdrive Transmission With Lockup
      • Gear Ratios: First 2.84:1, Second 1.55:1, Third 1.00:1, Overdrive 0.70:1, Reverse 2.32:1
      • Fits Mustang Editions Or Applications Compatible With Ford Small Block 347 C.I. Engines Equipped With 4R70W Automatic Transmission. Customers Should Verify Fitment Due To Low Profile Front Accessory Drive And Possible Need For Additional Fabrication Or Wiring.

      Description

      Premium Crate Engine Package. The BluePrint Engines Mustang Edition Builder Series Small Block Ford 347 C.I. 415 HP Fuel Injected Crate Engine and 4R70W Automatic Transmission with Polished Pulley Kit delivers strong power and reliability for Mustang enthusiasts and performance builders. This package combines a 347 cubic inch stroker engine with a durable overdrive automatic transmission, suitable for installation in compatible vehicles. It provides solid horsepower and torque while maintaining modern driveability and fuel injection efficiency.

      Construction and Appearance. The engine features a high-strength cast iron block with reinforced deck thickness and strength webbing for durability. The rotating assembly includes a cast crankshaft with forged connecting rods and pistons for long-lasting strength. Aluminum cylinder heads and a satin aluminum dual plane intake manifold optimize airflow. The polished front accessory drive includes premium components such as a 140-amp alternator and air conditioning compressor, giving the engine a professional appearance.

      Installation. Installation requires mechanical knowledge, and customers should carefully verify fitment before installation. Due to the low-profile design of the front accessory drive, some vehicles may require custom hose routing, wiring adjustments, or additional fabrication to complete the installation properly.

      Warranty. This engine package is backed by a 30-month or 50,000-mile limited warranty covering parts and labor, providing peace of mind for enthusiasts and installers.

      Application. Intended for Mustang editions and other compatible Ford Small Block platforms equipped with the Ford 4R70W automatic transmission. Precise fitment verification is strongly recommended due to the compact front accessory drive layout and potential need for accessory or wiring modifications.

      BluePrint Engines B347FK4R7M
