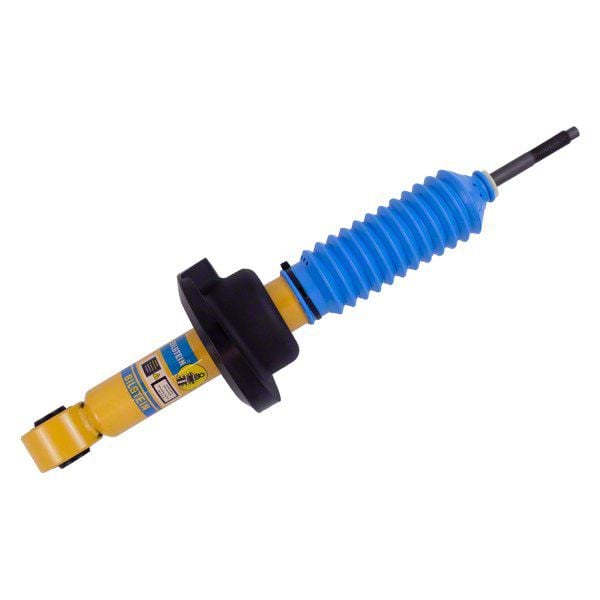

Bilstein B6 4600 Series Front Shock (16-24 Titan XD)Find parts that fit my vehicle
Item NTX1546
Our Price
$161.00
Coupon
Military, Medical & First Responders
$8.05 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Suspension Shock Absorber
- Series B6 4600
- Weight 10.40 Lbs
- Collapsed Length 14.61 In (371.2 Mm)
- Extended Length 18.03 In (458.0 Mm)
- Lower Mount Type Eye 16mm
- Upper Mount Type Stem
- Internal Design Monotube
- Finish Yellow Paint
- Reservoir No
- Body Design Snap Ring Grooved Body Coilover
- Body Diameter 2.0 In
- Piston Diameter 46mm
- Boot Included Blue Bellows
- Replacement Mounting Kit B4-KT1-Z352A00
- Spring Seat Included Yes
- Shaft Diameter 14mm
- Adjustable Damping Non-Adjustable
- Country Of Origin US
- Quantity Per Vehicle 2
- Warranty Limited Lifetime Warranty
- Fits 16-24 Titan XD
| Brand | Bilstein |
| Shock Type | Non-Adjustable |
| Shock Lift Height | 0-Inch Lift |
Description
Enhanced Suspension Performance. The Bilstein B6 4600 Series Shock Absorber is designed as a direct replacement for factory shock absorbers, providing superior handling and ride quality. It improves vehicle stability and comfort by responding dynamically to road conditions.
Construction and Appearance. Featuring a robust monotube design with a 46mm piston and a 14mm shaft, this shock absorber is built for durability and consistent performance. Its yellow-painted snap ring grooved body includes a blue bellows boot for enhanced protection and wear resistance.
Installation. Installation is straightforward, requiring no drilling as it fits directly onto existing mounts. Its design ensures a secure fit with eye 16mm lower and stem upper mounts for easy replacement.
Warranty. This product is backed by a limited lifetime warranty.
Application. Specifically engineered to fit the 16-24 Titan XD, ensuring precise compatibility and optimal performance for these model years.
Bilstein 24-268110
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
What's in the Box
- (1) Lower washer
- (1) OE sleeve
- (1) OE lower bushing
- (1) OE upper bushing
- (1) OE upper washer
- (1) New locknut
- Bilstein shock
- OE coil spring
- OE upper mount (top mount plate and spring isolator)
- Bilstein unit
- Spring seat
