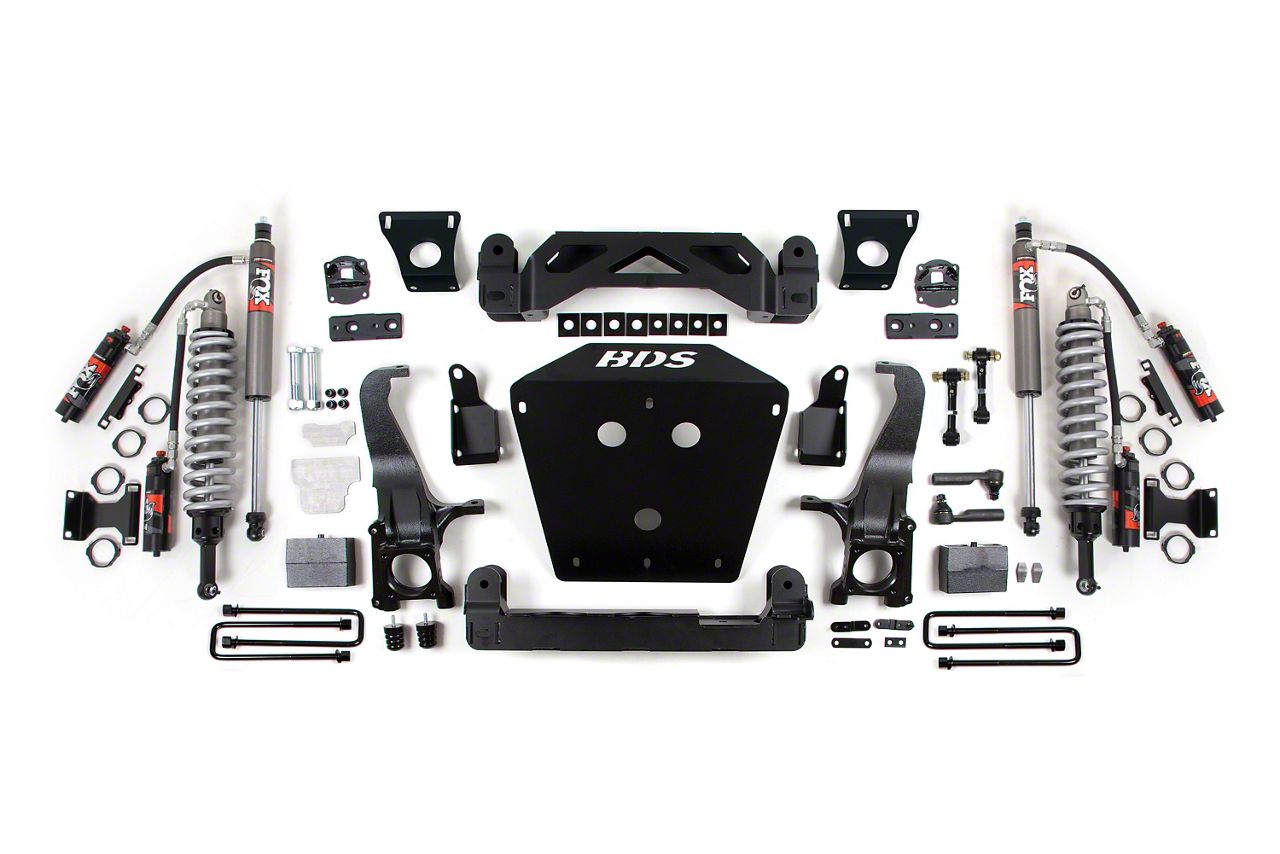

BDS 5-Inch Suspension Lift Kit with FOX 2.5 Performance Elite Coil-Overs and FOX 2.0 Performance Shocks (16-21 Tundra, Excluding TRD Pro)Find parts that fit my vehicle

Unleash the full potential of your Toyota Tundra with the 5-inch Lift Kit, meticulously engineered to deliver uncompromising performance on and off the road. This kit combines BDS Upper Control Arms, Steering Knuckles, and Fox Performance Elite Coil Overs and Rear Shocks, setting a new standard for durability, handling, and style.
BDS Upper Control Arms ensure optimal suspension geometry, enhancing wheel travel and articulation for seamless off-road navigation. Constructed from robust materials, they offer unmatched strength to tackle rugged terrain with confidence.
Steering Knuckles are precision-engineered to maintain factory steering geometry, ensuring precise handling and reducing stress on components. This upgrade allows for increased ground clearance and accommodates larger tires, perfect for conquering any obstacle in your path.
The inclusion of Fox Performance Elite Coil Overs and Rear Shocks elevates ride comfort and control to elite levels. Known for their advanced damping technology and race-proven reliability, these shocks deliver smooth performance across varying terrain, from rocky trails to highways.
Visually striking and functionally superior, the 5-inch Lift Kit transforms your Tundra's appearance with a commanding stance and aggressive profile. It not only enhances off-road capability but also maintains on-road comfort, making it ideal for daily driving and weekend adventures alike.
Whether you're a seasoned off-road enthusiast or exploring new trails, the Toyota Tundra 5-inch Lift Kit with BDS Upper Control Arms,
Steering Knuckles, and Fox Performance Elite Coil Overs and Rear Shocks ensures unparalleled performance and durability. Elevate your driving experience today and embrace the limitless possibilities of exploration and adventure.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features & Benefits
Highly engineered upper control arms featuring 1.5" tubular steel construction with indexed ball joint to provide maximum travel with factory style rubber bushings which provide long lasting maintenance free operation.
FOX 2.5 Performance Elite series adjustable coil overs for improved ride quality, performance, and capability.
High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance HD skid plate system improved offroad protection.
Multipoint differential relocation brackets to secure the front axle and improve CV angles.
FOX performance series IFP gas rear shocks to improved ride and offroad performance.
Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels
(Trimming may be required)
35 x 12.5 with 17 x 9 and 5.5 in. Backspace
35 x 12.5 with 18 x 9 and 5.5 in. Backspace
35 x 12.5 with 20 x 9 and 5.5 in. Backspace
Rear Shock Option
FOX 2.0 Performance Series
2-inch Impact extruded aluminum body
Internal floating piston (IFP) monotube design
CNC machined 6061-T6 aluminum mounting ends
Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish
FOX 2.5 Performance Elite Series
Increased off-road capabilities
Easily adjust your shock for terrain, load and speed
2.5-inch Impact extruded aluminum body
Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
External reservoir design separates shock oil from the high-pressure nitrogen
DSC - Dual Speed Compression Adjuster comes standard
Fully serviceable for a lifetime of use
1-year Manufacturer's Warranty
