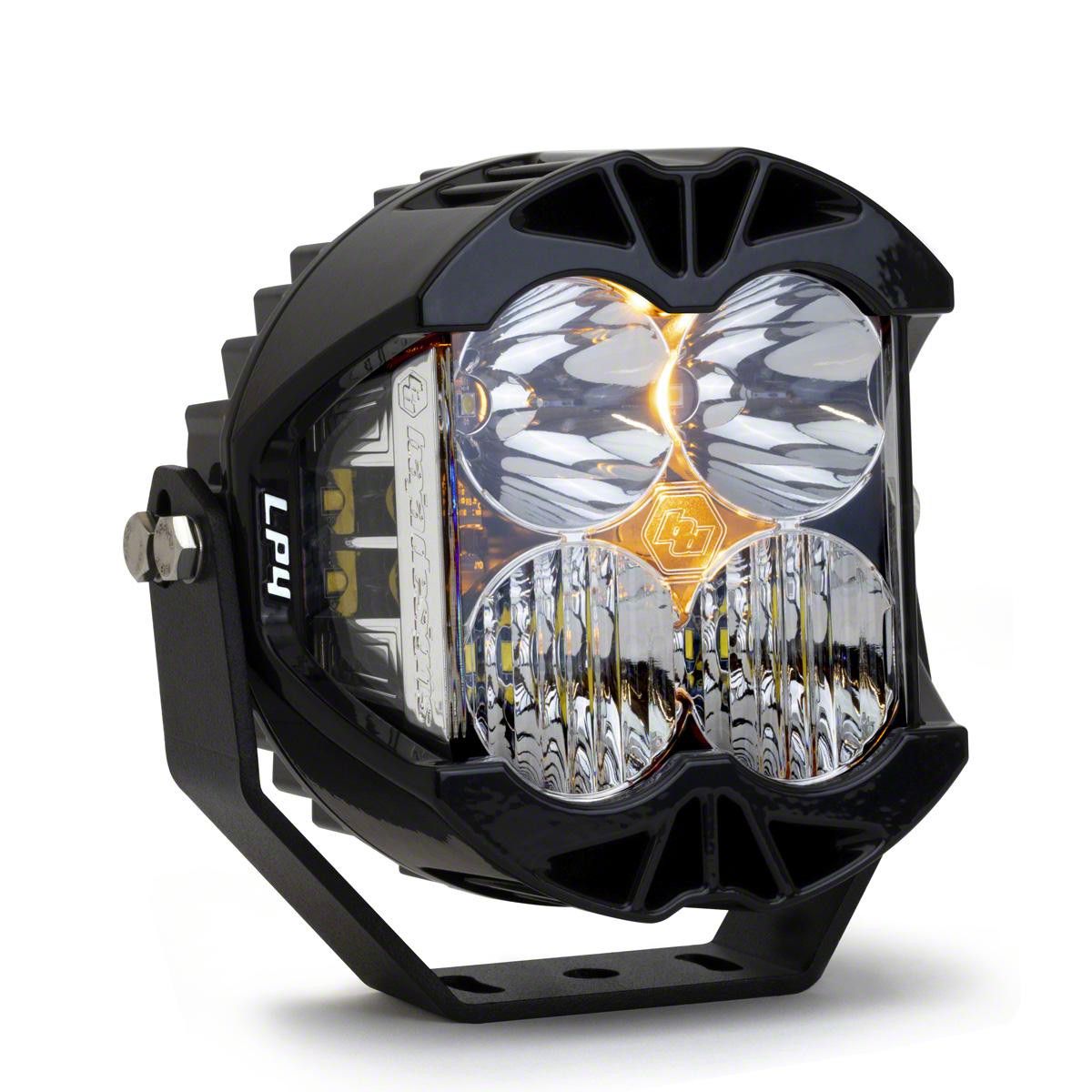

Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight; Spot Beam; Clear (Universal; Some Adaptation May Be Required)
Item TU35116
Our Price
$481.75 each
Military, Medical & First Responders
$24.09 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes Beam/Day-Time Running Backlighting _x000D_
- Lighting Quantity 4 _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included Yes _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type LP4 Pro LED Light Pod _x000D_
- Secondary Amperage Rating 1.000 A _x000D_
- Secondary Brightness 1972 Lumens _x000D_
- Secondary Light Quantity 4 LEDs _x000D_
- Secondary Lighting Technology LED _x000D_
- Secondary Lighting Type Integrated Peripheral Technology (IPT) _x000D_
- Secondary Wattage 15 W _x000D_
- Terminal Connector DT06-4S Deutsch _x000D_
- Terminal Type Mating Connector _x000D_
- Universal Or Specific Universal _x000D_
- Wattage 75.900 W _x000D_
- Wiring Harness Included No _x000D_
- Amperage Rating 5.500 A _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Backlight Amperage Rating 0.350 A _x000D_
- Backlight Wattage 4.830 W _x000D_
- Beam Pattern Spot _x000D_
- Bezel Material Powder Coat Cast Aluminum _x000D_
- Brightness 8857 Lumens _x000D_
- Description Spot; Clear _x000D_
- Housing Color Black _x000D_
- Housing Material Powder Coat Cast Aluminum _x000D_
- Standards/Compliance Durability Exceeds MIL-STD810G _x000D_
- Standards/Compliance Impact Resistance IK10 Compliant _x000D_
- Standards/Compliance Water Resistance IP69K Waterproof Up To 9ft & Pressure Washable _x000D_
- Depth 3.200 Inches _x000D_
- Height 5.100 Inches _x000D_
- Length 5.100 Inches _x000D_
- Weight 2.800 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 5 to 5.75 Inch |
Description
High-Performance Illumination. The LP4 Pro LED Auxiliary Light Pod with Amber Backlight and Spot Beam Clear lens delivers a powerful, focused beam with integrated peripheral lighting for enhanced visibility across diverse environments. This makes it an essential accessory for safe and effective nighttime driving or work in off-road and utility applications.
_x000D__x000D_Construction and Appearance. Built with a powder-coated cast aluminum housing and a hardcoated polycarbonate lens, this light pod offers robust durability to withstand harsh conditions. Its black matte finish combines resilience with a sleek, professional appearance to complement any vehicle setup.
_x000D__x000D_Installation. The installation process is straightforward with included stainless steel mounting hardware. Basic tools are typically sufficient, and no complicated drilling is required, making it suitable for most users with mechanical aptitude.
_x000D__x000D_Warranty. This product is backed by a lifetime limited warranty, assuring long-term reliability and customer satisfaction.
_x000D__x000D_Application. Designed for universal fitment; however, some adaptation may be necessary based on vehicle and mounting position.
Baja Designs 290001
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) LED Auxiliary Light Pod
