ARB Outback Solutions Modular Roller Drawer with Roller Floor; 53-Inch x 20-Inch x 12-Inch (Universal; Some Adaptation May Be Required)

Item TU10945
Product Image
19 Reviews of ARB
Our Price

$1,447.00 kit

Military, Medical & First Responders $72.35 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Engineered for Both On and Off-Road Driving with Anti-Rattle Design
        • _x000D_
      • Self-Locking Anti Roll Back System Locks at Full Extension to Prevent Drawer from Rolling Closed on Inclines
        • _x000D_
      • Modular Units Allow Greater Flexibility if Needs Change in the Future
        • _x000D_
      • Class-Leading Deep Drawers with Internal Heights Up to 9.8 Inches for Greater Packing Potential
        • _x000D_
      • Key Lockable, Push-Pull Slam Shut Latches for Ease of Use and Maximum Security
        • _x000D_
      • Long-Lasting, UV Stable Commercial Carpet Designed to Complement Modern Vehicle Interiors
        • _x000D_
      • Cross-Folded Floor Ensures Maximum Support for Items Placed Within Each Unit, Supporting up to 330 lbs per Drawer and 600 lbs Combined
        • _x000D_
      • Fully Sealed, Dust and Water Resistant Bearings for Superior Longevity in Harsh Environments
        • _x000D_
      • Integrated Fridge Slides on Roller Floor Models Provide a True Flat Mounting Surface
        • _x000D_
      • Vehicle-Specific Side Floor Kit with Easy Latches Completes Installation and Provides Additional Storage Areas
        • _x000D_
      • Water-Resistant Bonded Marine Plywood with Steel Reinforced Guards for Superior Strength
        • _x000D_
      • Folded Stainless Steel Bearing Runners for Ultra-Smooth Drawer and Slide Operation
        • _x000D_
      • Load Rating of 275 lbs per Drawer, Roller Floor 220 lbs Closed, 165 lbs Extended
        • _x000D_
      • Internal Dimensions of 49.4 in L x 17.1 in W x 9.8 in H
        • _x000D_
      • External Dimensions of 53.4 in L x 19.9 in W x 12.2 in H
        • _x000D_
      • Warranty: 3 Years
        • _x000D_
      • Fits Toyota Tacoma 2016-2023 4-Door Models with Gas Engines 2.7L or 3.5L
        • _x000D_

      Description

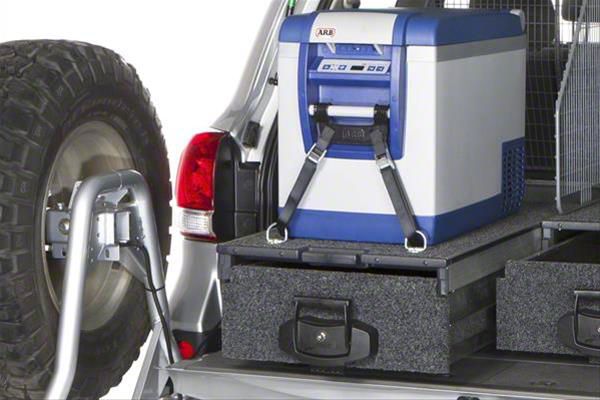

      MODULAR STORAGE SOLUTION. The ARB Outback Solutions Modular Roller Drawer with Roller Floor, measuring 53 inches by 20 inches by 12 inches, offers a versatile and robust storage system designed for both on- and off-road use. It features deep drawer capacity and a roller floor that allows easy access to stored items, making it ideal for organizing gear or mounting supplementary equipment such as fridges or toolboxes. This system maximizes vehicle cargo space while providing secure and convenient storage.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. Built with water-resistant bonded marine plywood reinforced by steel guards, the drawer is finished with durable, UV-stable commercial carpet in gray that complements modern vehicle interiors. It includes fully sealed, dust- and water-resistant bearings mounted on folded stainless steel bearing runners, ensuring ultra-smooth operation and durability in demanding environments.

      _x000D__x000D_

      INSTALLATION. Installation is moderately challenging and designed to be vehicle-specific with a side floor kit for a seamless, OEM-like finish. The drawer system requires careful fitting but typically does not require drilling due to the bolt-in mounting hardware included for secure installation.

      _x000D__x000D_

      WARRANTY. This product includes a 3-year warranty supporting its quality and durability.

      _x000D__x000D_

      APPLICATION. Compatible with Toyota Tacoma 2016-2023 4-door models equipped with 2.7L or 3.5L gas engines. Suitable for various trims including SR, SR5, Limited, and TRD Off-Road. Not compatible with other vehicles without modification.

      ARB RDRF1355

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Drawer Assembly
      • Mounting Hardware
